10/100/1000 Mbps RJ45 to 1000 Mbps Single-mode SC WDM Bi-Directional Fiber Converter PORT: 1× Gigabit SC Port, 1× Gigabit RJ45 Port (Auto MDI/MDIX) SPEC: Full-duplex, Tx:1310 nm, Rx:1550 nm, Up to 2 km, Chassis TL-FC1420 Rack-mountable
- SKU: FC311B-2
$16.99
Product Information
TP-Link Gigabit WDM Media Converter
Specifications
Specifications FC311B-2
| NETWORK | |
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3z |
| ENVIRONMENT | |
| Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
| Interface | • 1× Gigabit SC Fiber Port • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | • Single-mode Fiber • UTP category 5, 5e cable (maximum 100m) |

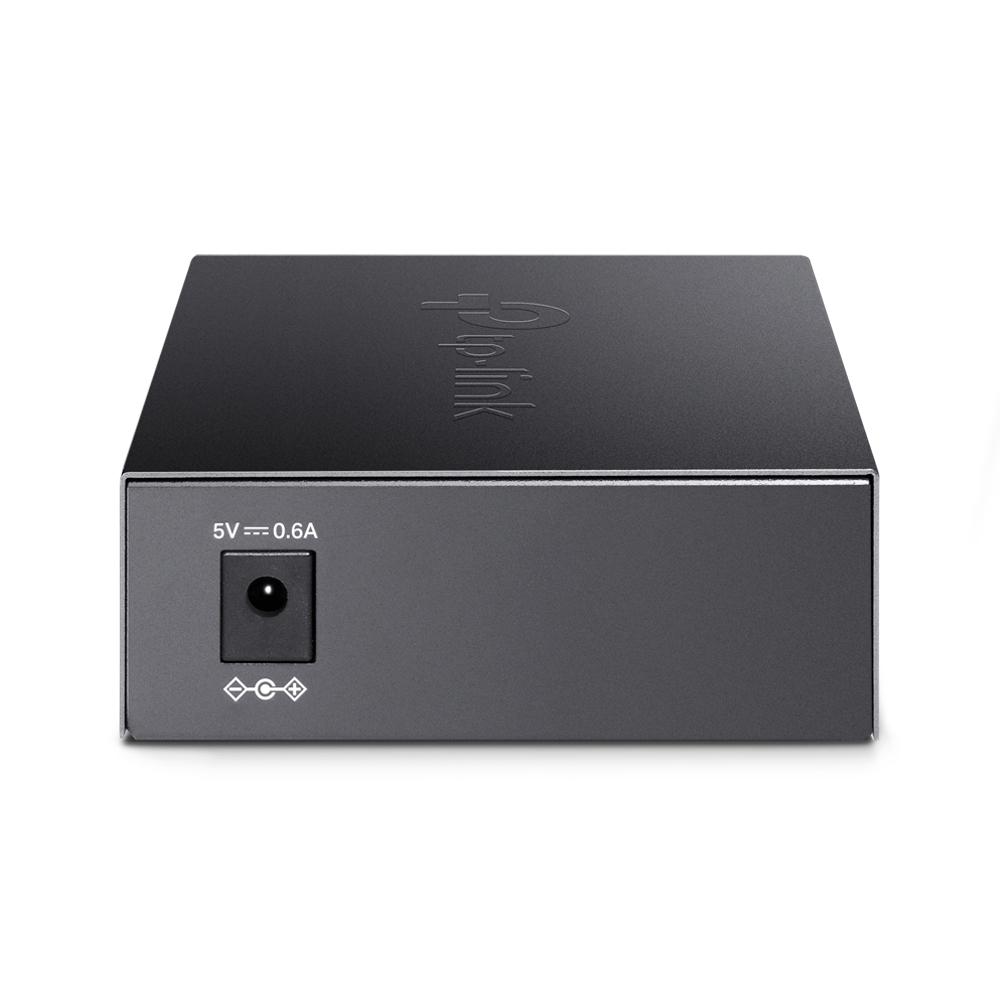

| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 3.7 × 2.9 × 1.1 in (94.5×73.0×27.0 mm) |
| Wave Length | 1550 nm RX, 1310 nm TX |
| MEDIA CONVERTER & MODULE | |
| Fiber Type | 9/125 μm single-mode fiber (≤2 km) |
