TP-Link 8-Port Gigabit Desktop Switch with 8-Port PoE+
- SKU: LS108GP
$59.99
Product Information
TP-Link 8-Port Gigabit Desktop Switch with 8-Port PoE+
Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 62 W with 30 W max per PoE+ port. When total power consumption exceeds 62 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.
Instantaneous Multi-mode Toggles, Ideal for IP Surveillance
Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.
PoE Auto Recovery
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.
Features:
- Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.
- 62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Specifications
Specifications LS108GP
| HARDWARE FEATURES | |

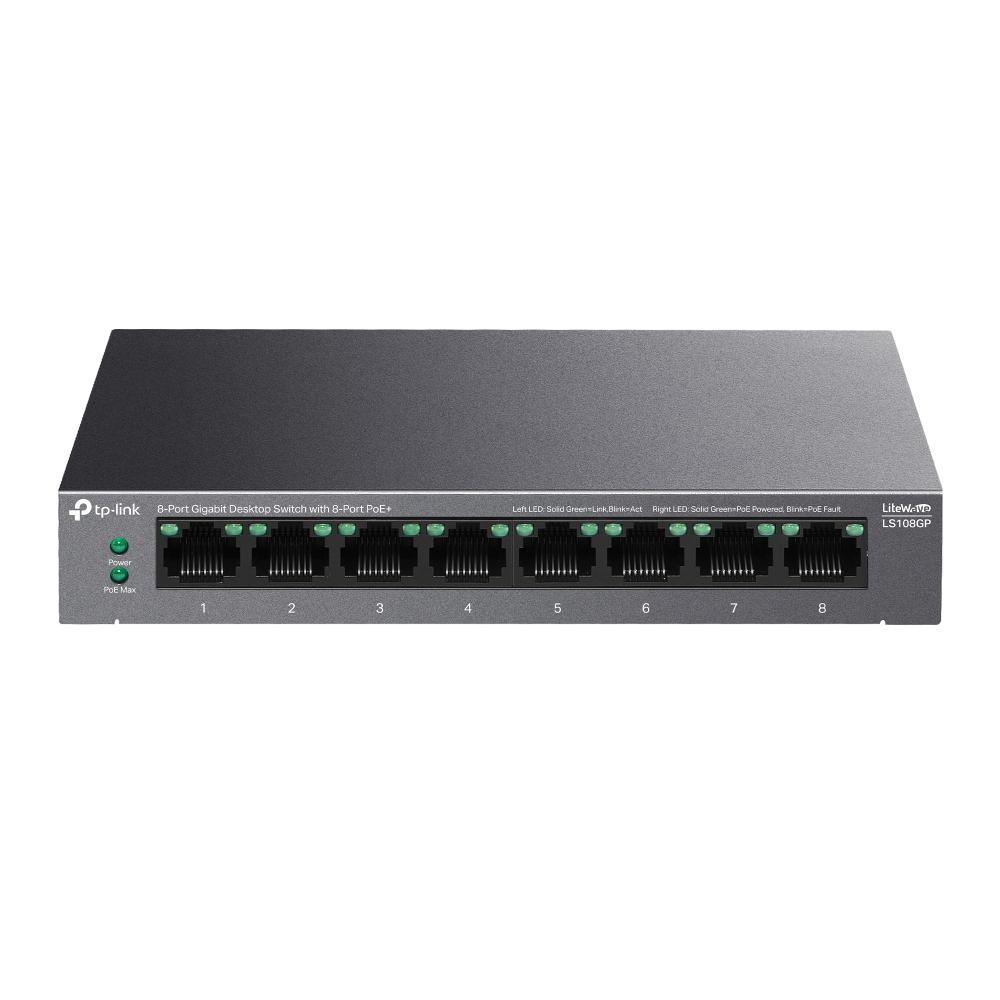

| Interface | • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |

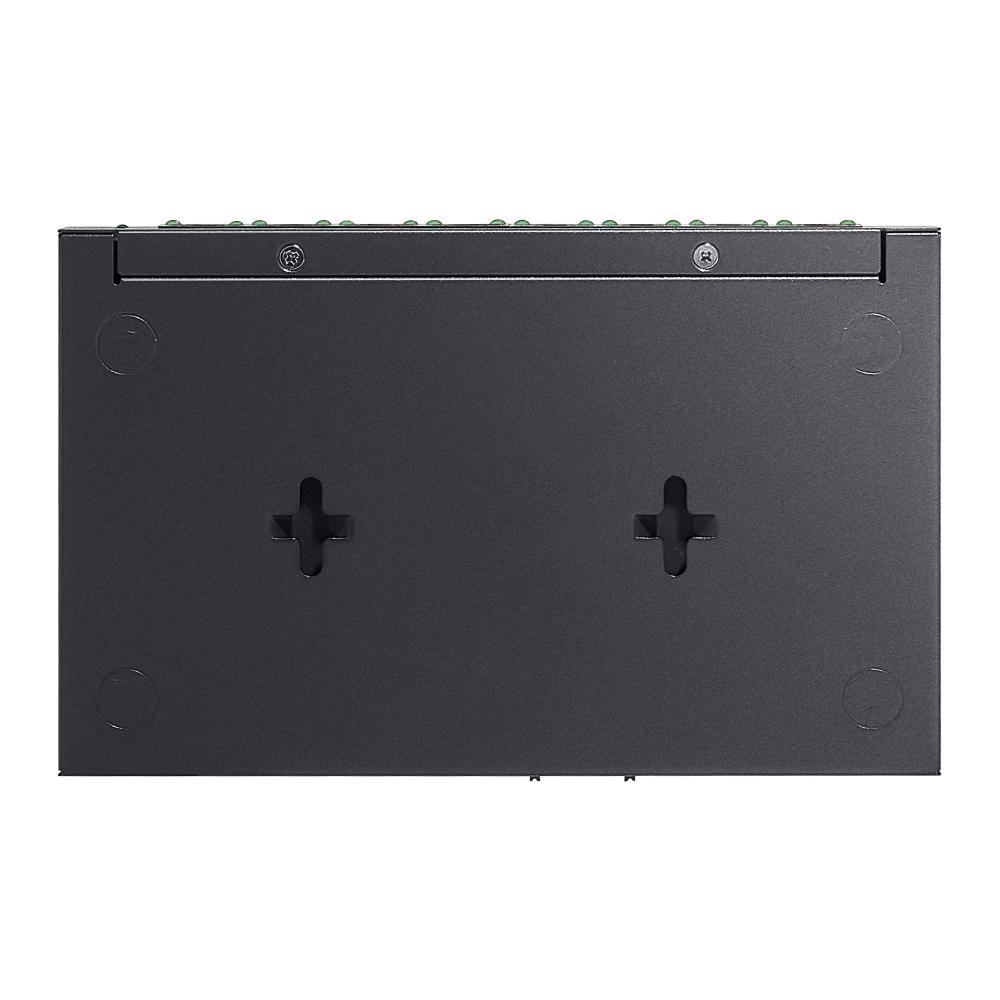

| Installation | • Desktop • Wall Mounting |

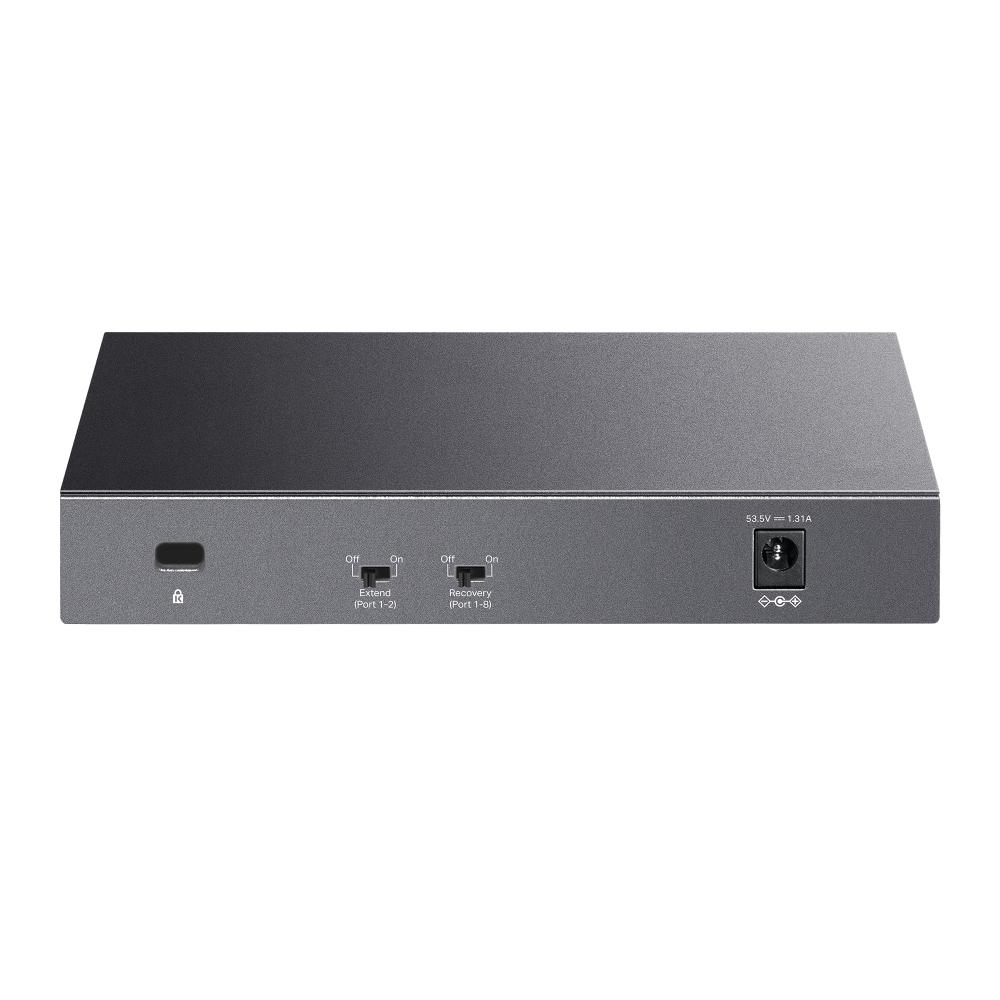

| Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8, up to 30 W PoE output per port • PoE Budget: 62 W |
| Dimensions ( W x D x H ) | 6.2×3.9×1.0 in (158×99×25 mm) |
| Max Power Consumption | • 5.53 W (220 V/50 Hz. no PD connected) • 71.61 W (220 V/50 Hz. with 62 W PD connected) |
| Max Heat Dissipation | • 18.81 BTU/h (220 V/50 Hz. no PD connected) • 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
| Advanced Features | • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery Button (Ports 1-8) • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Green Technology |
| Transfer Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
