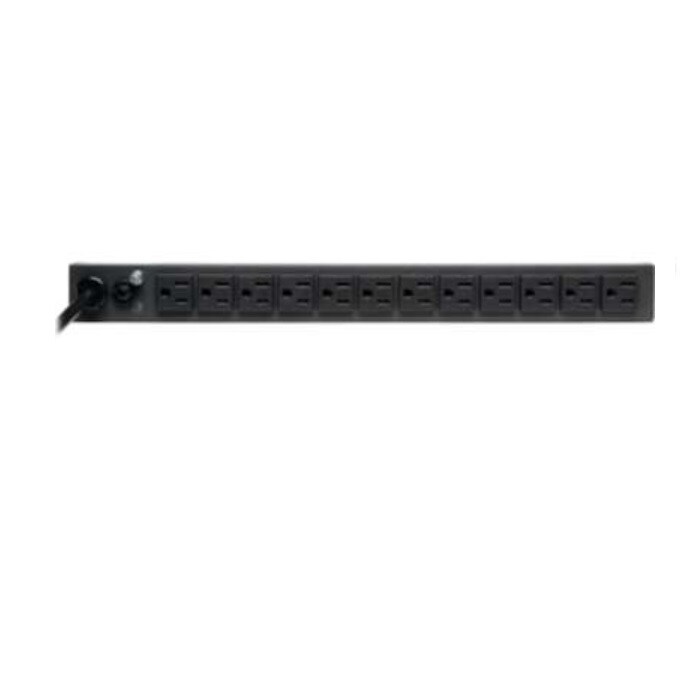

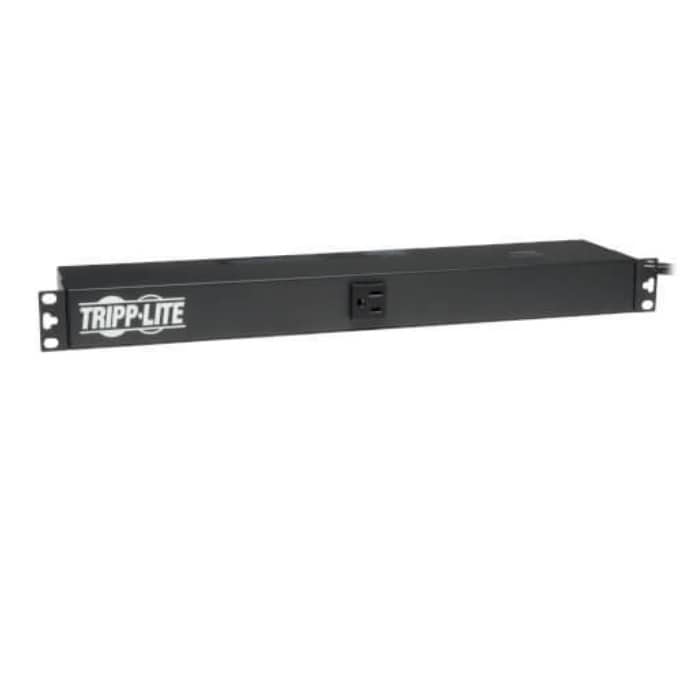

Tripp Lite PDU1215
- SKU: PDU1215
$162.86
Product Information
PDU Basic 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1U Rack-Mount
Specifications
Specifications PDU1215
| PDU Type | Basic |
| INPUT | |
| PDU Input Voltage | 120V |
| Recommended Electrical Service | Single-phase 15A 120V service |
| Maximum Input Amps | 15 |
| PDU Plug Type | NEMA 5-15P |
| Input Phase | Single-Phase |
| Input Cord Length (ft.) | 15 |
| Input Cord Length (m) | 4.57 |
| OUTPUT | |
| Output Capacity Details | 1.8kW (120V) / 15A total capacity; 12A max per 5-15R outlet |
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacles | (13) 5-15R |
| Output Nominal Voltage | 120V |
| Overload Protection | 15A breaker |
| USER INTERFACE, ALERTS & CONTROLS | |
| Switches | No power switch |
| PHYSICAL | |
| Material of Construction | Metal |
| Form Factors Supported | 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported |
| Minimum Required Rack Depth (cm) | 19.05 |
| Minimum Required Rack Depth (inches) | 7.5 |
| Outlets Measurement (Center to Center) | 30.2mm |
| PDU Form Factor | Horizontal (1U) |
| Shipping Dimensions (hwd / cm) | 5.59 x 51.82 x 23.62 |
| Shipping Dimensions (hwd / in.) | 2.20 x 20.40 x 9.30 |
| Shipping Weight | 2.39 kg |
| Shipping Weight | 5.27 lbs |
| Dimensions (H x W x D) | 1.75" x 17.5" x 4.5" inch 4.44 x 44.5 x 11.4 cm |
| Unit Weight (lbs.) | 4.9 |
| Unit Weight (kg) | 2.22 |
| ENVIRONMENTAL | |
| Operating Temperature Range | 0C ~ 40C (32F ~ 104F) |
| Storage Temperature Range | -30°C to +50°C (-22°F to +122°F) |
| Relative Humidity | 5 to 95% non-condensing |
| Operating Elevation (ft.) | 0-10,000 |
| Operating Elevation (m) | 0-3000 |
| FEATURES & SPECIFICATIONS | |
| TVSS Grounding | Back panel grounding lug |
| STANDARDS & COMPLIANCE | |
| Certifications | Tested to UL1363:2018 5TH Edition (USA), CAN/CSA-22.2 No. 308-14 (Canada); NOM (Mexico); RETIE (Columbia) |
| Certification Details | Series Number(s) AGIP120V6IPRM |
| WARRANTY | |
| Product Warranty Period (Worldwide) | 5-year limited warranty |
