Product Information

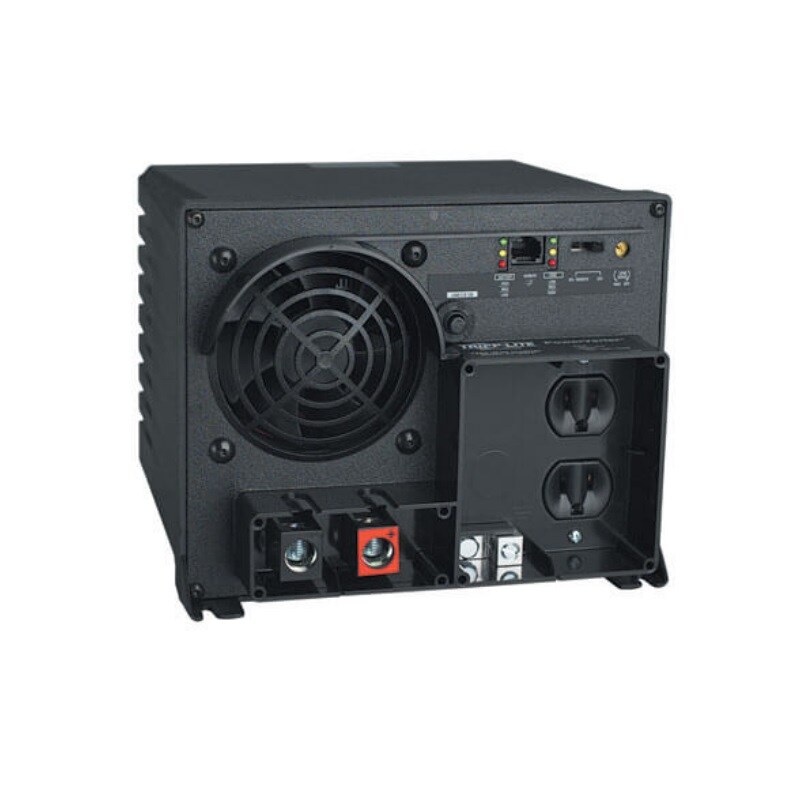

1250W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets
Specifications
Specifications TRPI01K
| INPUT | |
| Recommended Electrical Service | Requires 12V DC input source capable of delivering 127A for the required duration (when used at full capacity) |
| Maximum Input Amps / Watts | Full continuous load - 127A at 12V DC, No load - 2.2A at 12V DC |
| Input Connection Type | Set of 2 DC input terminals |
| Input Cord Length Details | User supplies cabling. 4 gauge or larger recommended. |
| Voltage Compatibility (VDC) | 12 |
| OUTPUT | |
| Frequency Compatibility | 60 Hz |
| Pure Sine Wave Output | No |
| Output (Watts) | 1250 |
| Nominal Output Voltage(s) Supported | 120V |
| Output Receptacles (2) | 5-15R |
| Continuous Output Capacity (Watts) | 1250 |
| Peak Output Capacity (Watts) | 2500 |
| Output Voltage Regulation | Maintains PWM sine wave output voltage of 120 V AC (+/-5%) |
| Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
| Overload Protection | Circuit breaker |
| BATTERY | |
| DC System Voltage (VDC) | 12 |
| PHYSICAL | |
| Cooling Method | Fan |
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information) |
| Material of Construction | Polycarbonate |
| Shipping Dimensions (hwd / cm) | 31.75 x 26.42 x 26.42 |
| Shipping Dimensions (hwd / in.) | 12.50 x 10.40 x 10.40 |
| Shipping Weight (kg) | 10.21 |
| Shipping Weight (lbs.) | 22.50 |
| Unit Dimensions (hwd / cm) | 17.78 x 22.23 x 22.86 |
| Unit Dimensions (hwd / in.) | 7 x 8.75 x 9 |
| Unit Weight (kg) | 10.52 |
| Unit Weight (lbs.) | 23.2 |
| ENVIRONMENTAL | |
| Relative Humidity | 0-95% non-condensing |
| WARRANTY | |
| Product Warranty Period (Worldwide) | 1-year limited warranty |
