Tycon Power 3:1 MC4 Adapter Kit, Male + Female
- SKU: MC4-3-1-KIT
$15.15 $15.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information

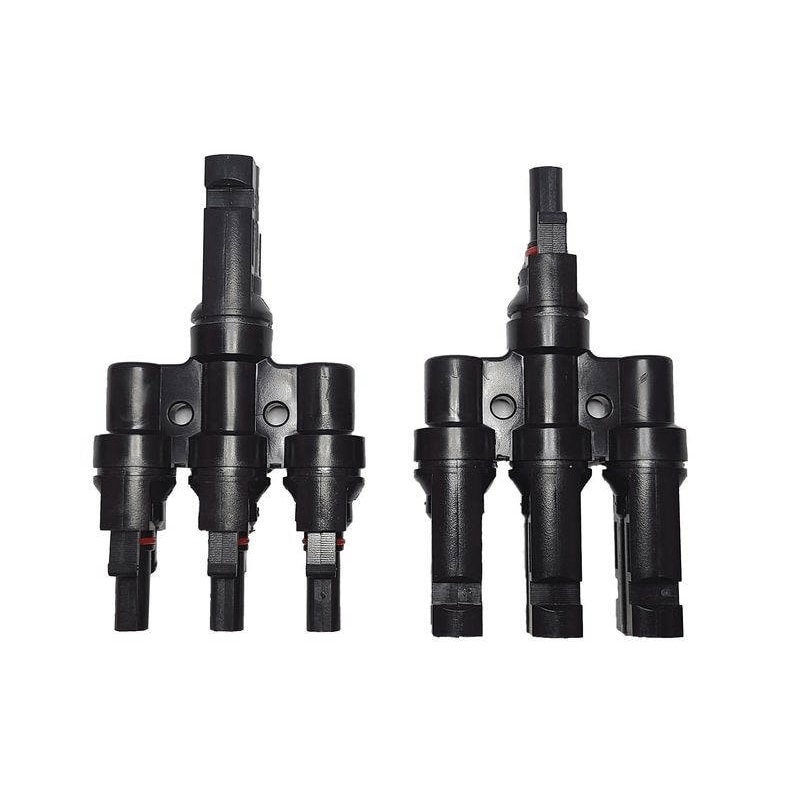

3:1 MC4 Adapter Kit, Male + Female
The Tycon Solar® MC4-3-1-Kit is an industry standard PV connector adapter kit. It is used to combine the outputs of three panels into one cable. There are two adapters in each kit, one with Male output and one with female output. The IP67 UV Protected weatherproof connectors are designed for outdoor use in harsh environments.
Features:
- Combine Three Connections to One
- Rated for up to 1000VDC @ 30A
- IP67 Weatherproof Rating
Applications:
- Remote Power Systems
- Solar Power Applications
Specifications
Specifications MC4-3-1-KIT
| Connector System (Pin) | 4mm2 |
| Rated Voltage | 1000 VDC |
| Rated Solar Current | 30A Max |
| Test Voltage | 6KV (50hz, 1min) |
| Contact Resistance | <0.5 mΩ |
| Contact Material | Copper, Tin Plated |
| Insulation Material | PPO |
| Flammability Rating | UL-94-V0 |
| Environmental Protection | IP67 |
| Salt Spray | IEC 60068-2-52 |
| Certifications | CE (EN50521:2008), RoHS, CB |
| Safety Class | II |
| Operating Temp | -40°C to 75°C (-40°F to 167°F) |
| Max Temperature | 105°C (221°F) |
| Insertion Force | ≤90 N |
| Withdrawal Force | ≥310 N |
| Dimensions | 107.5mm x 63mm (4.2 x 2.5”) |
| Weight | 120g (0.26lb ) |
| Warranty | 3 years |
