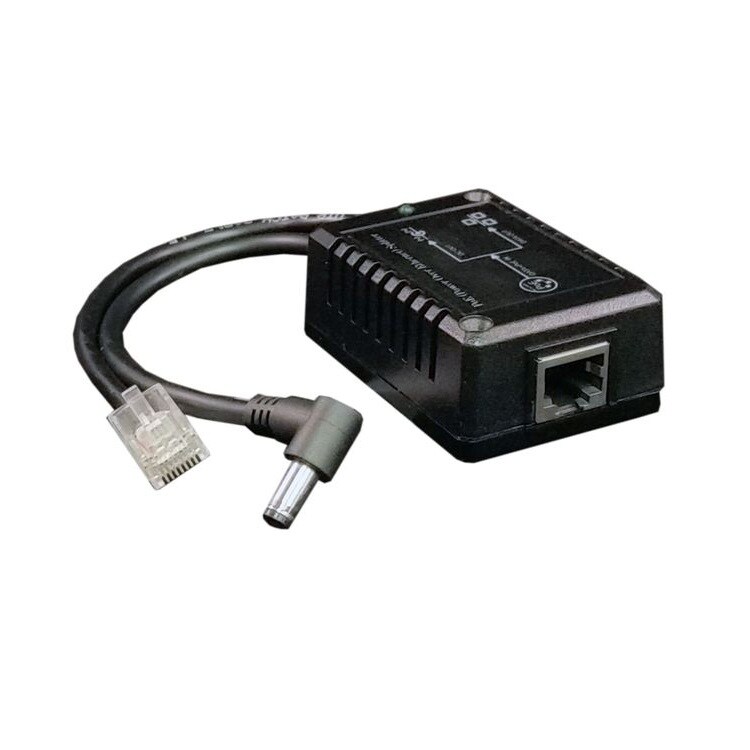

PoE splitter.48VDC 802.3af PoE input and output, 12VDC @ 1A output, 12W, 5.5x2.1 connector
- SKU: POE-MSPLT-4812P
$52.20 $54.95
Product Information
PoE splitter.48VDC 802.3af PoE input and output, 12VDC @ 1A output, 12W, 5.5x2.1 connector
Specifications
Specifications POE-MSPLT-4812P
| Output Voltage | 48VDC Passive PoE 12VDC on 5.5/2.5mm DC Connector |
| Output Current | 0.4A 1A |
| Total Max Output Power | 15W |
| DC Output Connector | 5.5mm / 2.1-2.5mm Barrel Connector |
| Data Output Connector | RJ45 Plug, (-F version RJ45 Shielded Socket) |
| Output Cable Length | 153mm (6”) |
| Load Regulation & Noise | 5% |
| Line Regulation & Ripple | 1% |
| PoE Input (RJ45) | IEEE 802.3af/at or Passive PoE (36 – 60VDC) |
| Ethernet Speed | 10/100MB |
| Efficiency | 75% Min |
| EMC Standards | FCC Class B NE55022 Class B |
| Isolation Voltage | 1500VDC |
| Isolation Resistance | 100M Ohms Minimum |
| Operating Temperature | -40 to +50°C (-40 to +122°F) |
| Operating Humidity | 5% - 90% non-condensing |
| Storage Temperature | -40 to +80°C (-40 to +176°F) |
| Dimensions (LxWxH) | 65 x 45 x 26mm (2.6 x 1.8 x 1”) |
| Weight | 62g (2.2oz) |
| Warranty | 3 Years |
