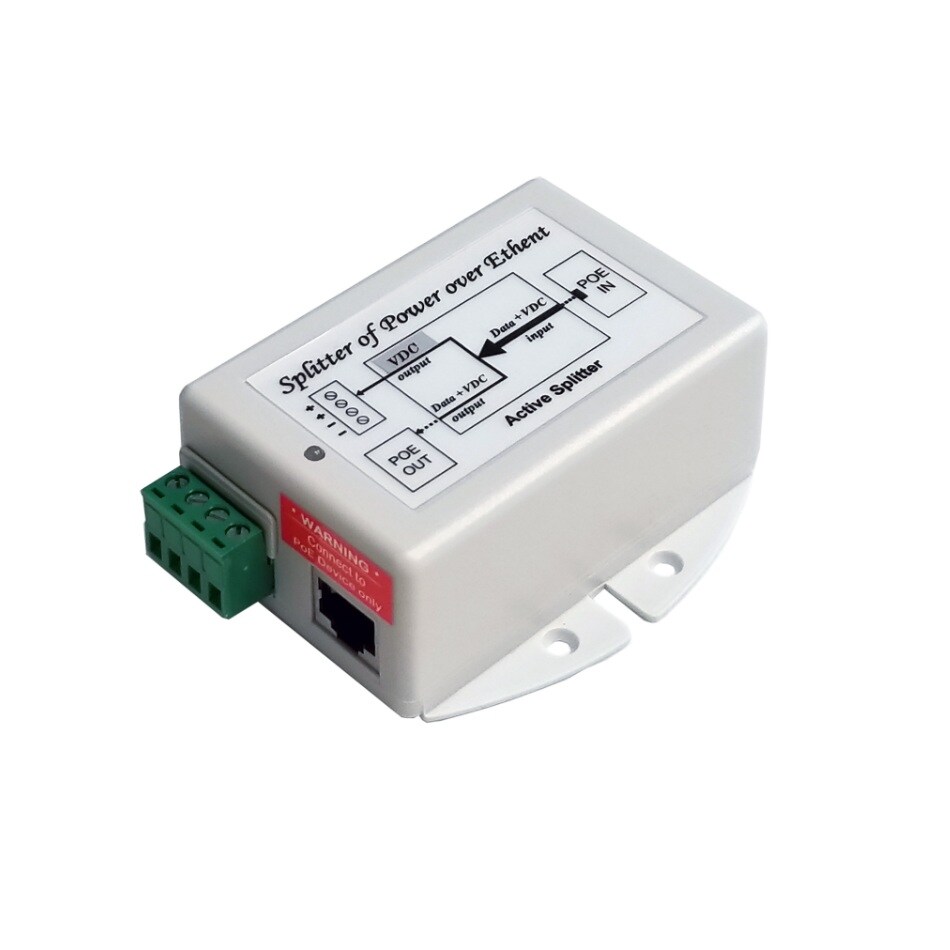

48VDC 802.3at POE Input, 48V 802.3at PoE out and 24VDC @ 20W output, Max 50W, POE Splitter/Voltage converter, -30 to +65C
- SKU: POE-SPLT-4824G-P
$80.70 $84.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
48VDC 802.3at POE Input, 48V 802.3at PoE out and 24VDC @ 20W output, Max 50W, POE Splitter/Voltage converter, -30 to +65C
Specifications
Specifications POE-SPLT-4824G-P
| Output Voltage | 24VDC & PoE+ |
| Max PoE Output Power | 30W |
| Max VDC Output | 0.83A 20W |
| Max Combined Total Output Power | 50W |
| Output Connectors | Shielded RJ45 & Wire Terminal (12AWG) |
| Load Regulation | 5% |
| Line Regulation | 1% |
| POE Input (RJ45) | 802.3at 48VDC (2 or 4 pairs), 40V to 60V |
| Under Voltage Shutdown | <30VDC |
| Ethernet Speed | 10/100/1000MB (Gigabit) |
| Efficiency | 85% Min |
| LED Function | Red = 802.3af Input or Passive PoE input Green = 802.3at Input |
| EMC Standards | FCC Class B NE55022 Class B |
| Isolation Voltage | 1500VDC |
| Isolation Resistance | 100M Ohms Minimum |
| Operating Temperature | -30 to +65°C ( -22F to +149°F) |
| Operating Humidity (RH) | 5% - 90% non condensing |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Dimensions (LxWxH) | 85 x 78 x 36mm ( 3.3 x 3.07 x 1.4” ) |
| Weight | 150g (5.3oz) |
| Warranty | 3 Years |
