Tycon Power RPSTL12/24M-200-320
- SKU: RPSTL12/24M-200-320
$2,184.95 $2,299.95
Product Information

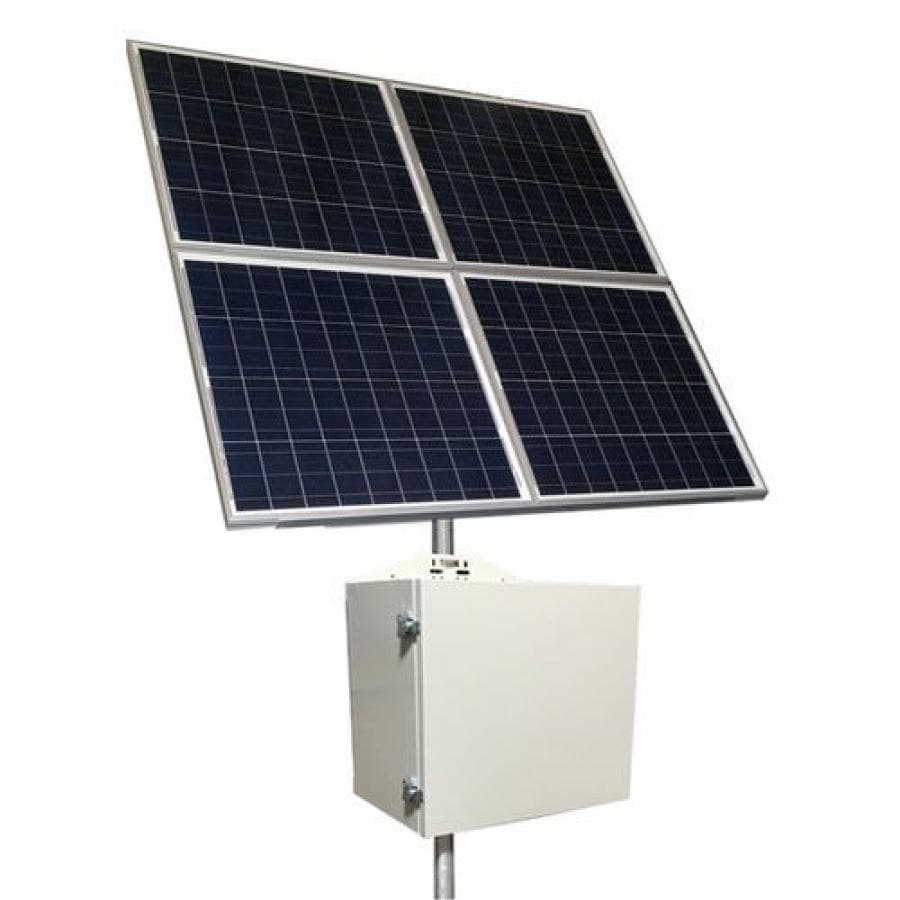

320W Solar,12V or 24V 200Ah Batt, 20A MPPT Controller Remote
Specifications
Specifications RPSTL12/24M-200-320
| Rated Power Generation | 50W |
| Reserve Time @ Rated Power | >30hrs |
| Load Out (DC) | 12 or 24VDC, 20A |
| 12V Battery Capacity (Amp Hrs) | 200Ah |
| Battery Voltage (DC) | 12 or 24VDC |

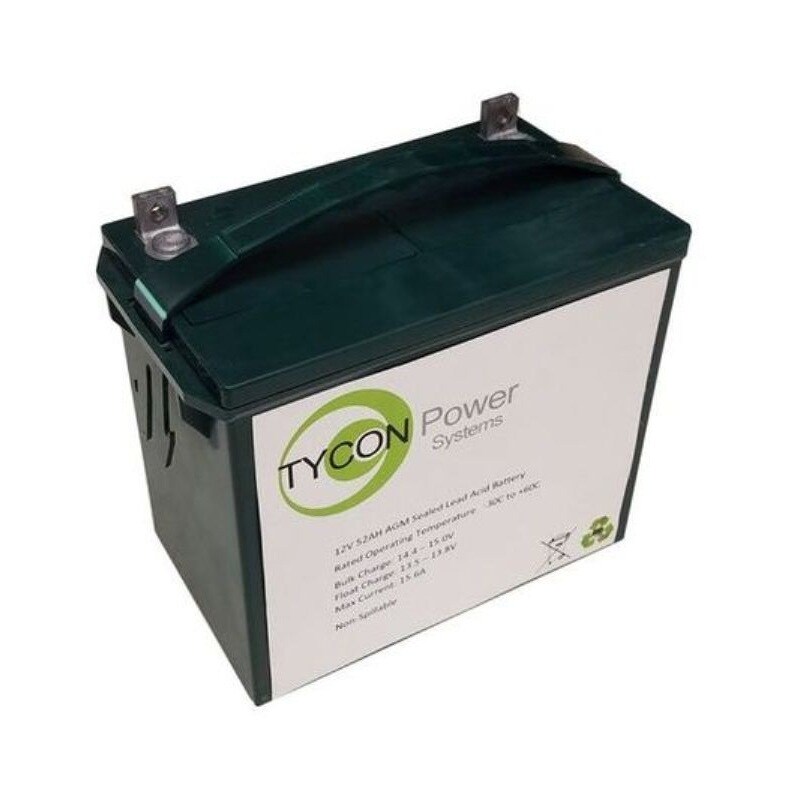

| Battery Type | Maintenance Free Non-Spillable Valve Regulated Sealed Lead Acid AGM |
| Battery Life | 5+ Years |

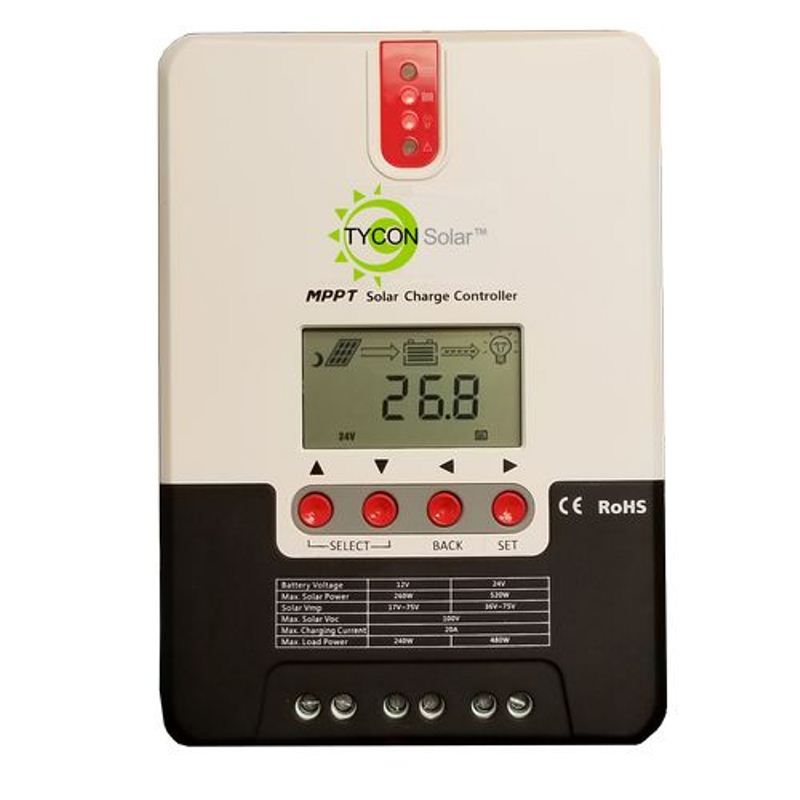

| Solar Controller Type | MPPT (Maximum Power Point Tracking), Manageable, Temperature Compensated, 20A Max Solar, 20A Max Load Control, LCD Display of Voltages and Currents, Battery % |
| Bulk Charge | 14.4V / 28.8V |
| Flight Charge | 13.8V / 27.6V |
| Over-discharge protection | 11V / 22V |
| Over-discharge recovery voltage | 12.6V / 25.2V |
| Controller Self Consumption | <1W |

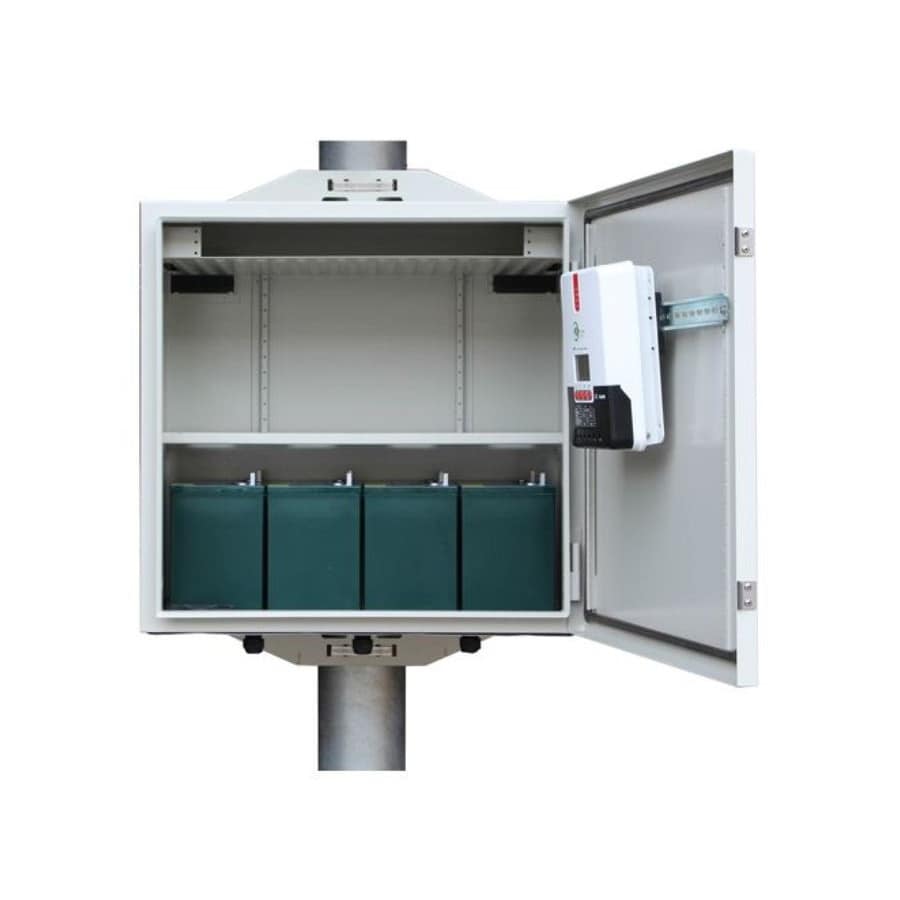

| Enclosure Type | Powder Coated Steel – Pole/Wall Mount |
| Enclosure External Size | 24.1 x 24.1 x 17.5" (612.5 x 612.5 x 445.6mm) |
| Enclosure Internal Size | 23.9 x 23.9 x 16.1" (608 x 608 x 409.5mm) |
| Internal Mount Features | DIN Rail/Flat Plate Mounting Brackets Welded to Door and Sides |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| Solar Panel Dims (LxW) | 53.4” x 62” (1356 x 1560mm) |
| System Weight (without batteries) | 212 lb (96 kg) |
| Battery Weight (each) | 322 lb (146 kg) |
| Wind Speed Rating | 90MPH |
| Warranty | 3 Years |
