Tycon Power RemotePro75W, 200Ah Battery, 340W Sol, 48V TPDIN MPPT

RemotePro 75W Cont Pwr, 340W Solar, 48V 200Ah 2400Wh LFP Lithium Batt , 48V20A MPPT Sol Ctrl w/7x GigE 24/48V Pasv PoE + 1x 24/48V Aux Port, 2-4" Pole/Wall Mt Lg Steel Lock Encl Rackmt + SidePole Sol Mt, PwrVent

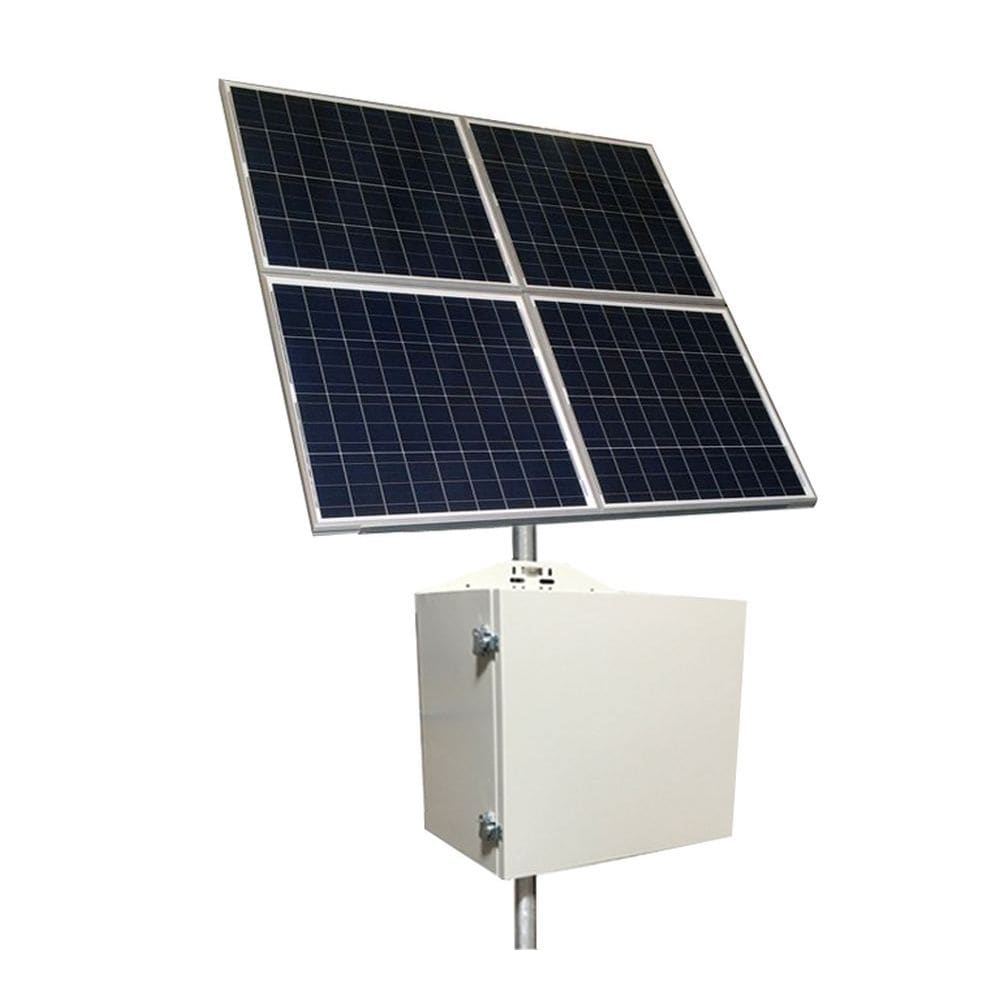

The RemotePro® 340W Lithium Series outdoor power systems from Tycon Power® are meticulously designed for applications requiring a primary off-grid power source to run various equipment. These robust systems feature vented, weatherproof enclosures that offer generous space inside for mounting customer equipment. Multiple mounting brackets, welded inside the enclosure, accommodate DIN rails or flat plates, ensuring versatile options for equipment installation. You can mount the enclosures to a wall or pole using the included mounting bracket system.

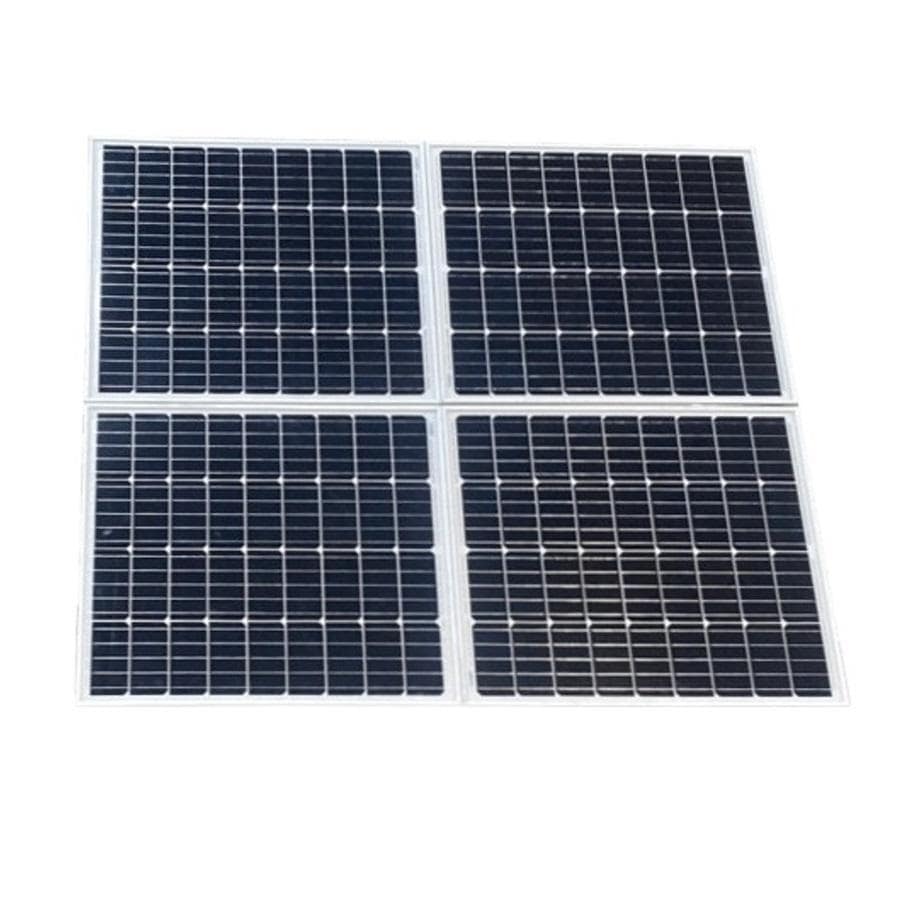

High-Quality Solar Panels

25-Year Power Output Guarantee: The high-quality solar panels, which come with a 25-year power output guarantee and a +5W output tolerance, can be mounted to poles with diameters ranging from 51mm to 101mm (2″ to 4″) or directly to a wall using the included bracket kit. This ensures optimal sunlight exposure and maximizes efficiency.

Advanced Battery Protection

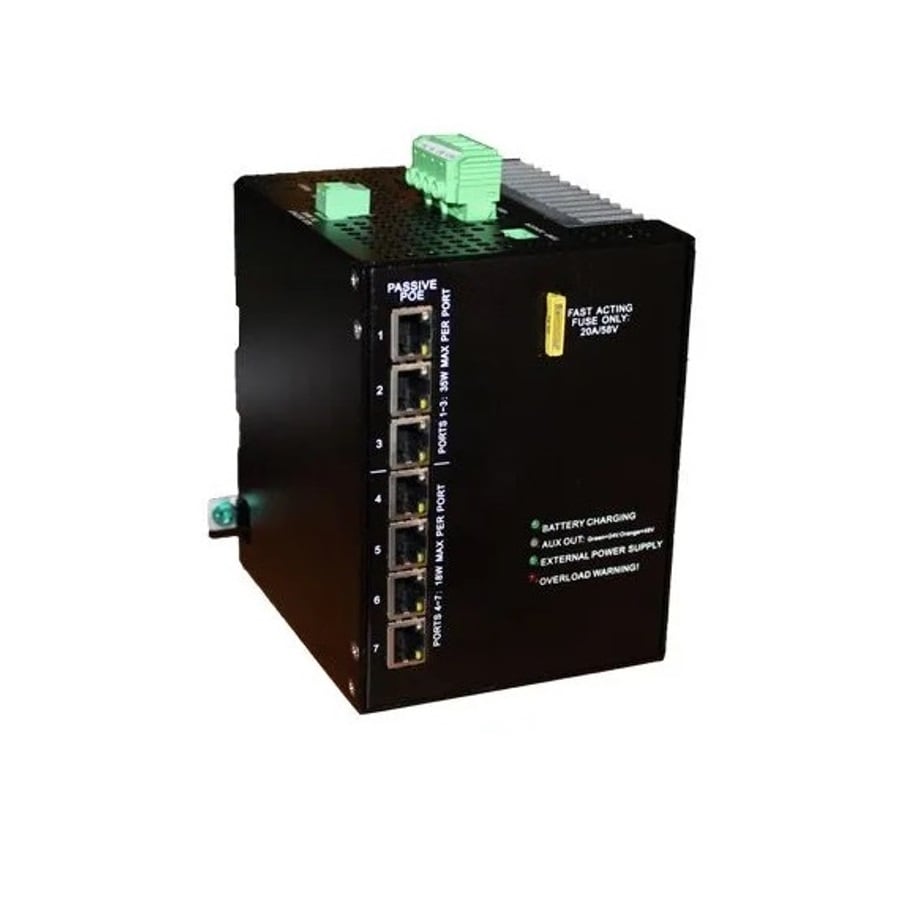

MPPT Battery Charge Controllers: The systems include advanced MPPT battery charge controllers with LVD load control and an RS485 interface, providing precise control and monitoring of the solar charging process. These controllers protect the batteries from over-charging or over-discharging, extending their lifespan and ensuring reliable performance.

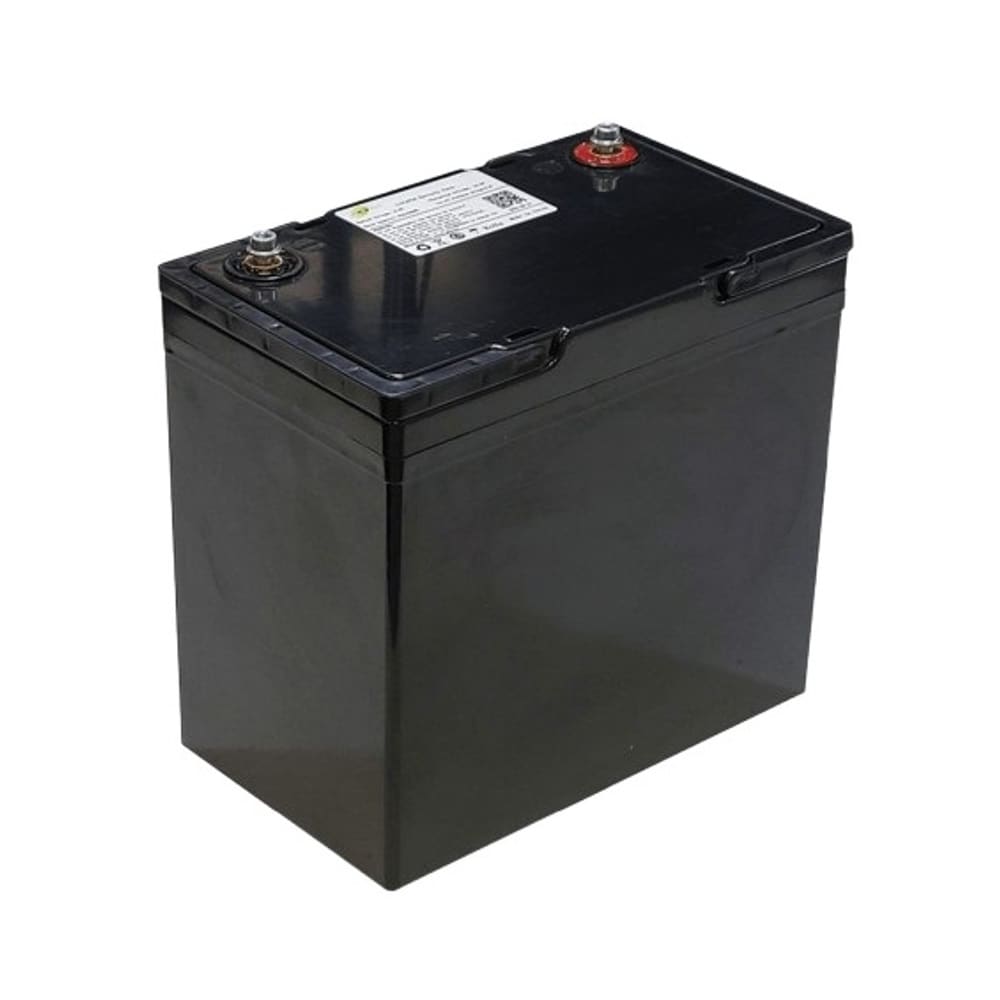

Reliable Lithium Batteries

LFP (LiFePO4) Lithium Batteries: The systems use LFP (LiFePO4) Lithium batteries, which offer superb 80% deep discharge and 4000+ cycle life performance. The embedded BMS (Battery Management System) enables a 10+ year battery life. The systems can be configured as 12V, 24V, or 48V, providing flexibility for various applications.

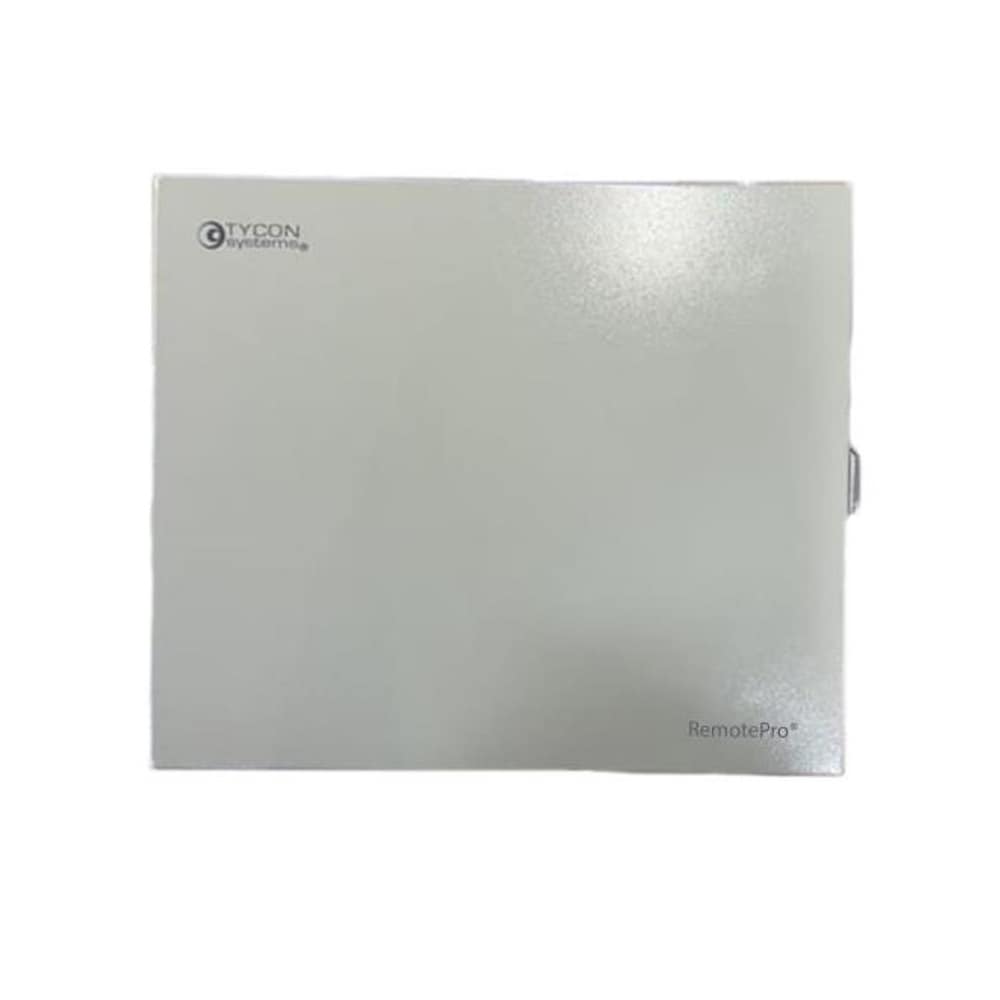

Durable and Secure Enclosures

Powder-Coated Steel or Aluminum: The outdoor enclosures, constructed from powder-coated steel or aluminum, are hinged and gasket-sealed with a locking closure that accepts a common padlock for security. This robust construction ensures the enclosures withstand harsh environmental conditions while keeping internal components secure.

Cable Gland Ports: The enclosures feature four cable gland ports for CAT5/6 cables, antenna cables/connectors, or other cabling. This design provides flexibility for various wiring needs, ensuring a clean and organized installation.

Efficient Thermal Management

Thermostatically Controlled Fan: Included in the system is a thermostatically controlled fan assembly that automatically turns on when the temperature exceeds 45°C. This feature ensures optimal operating temperatures, protecting the internal components and enhancing the system’s longevity.

Comprehensive Cabling Included

Complete Cabling Solution: The systems come with all the necessary cabling to connect the batteries to the controller. Additionally, a 20’ outdoor-rated cable connects the solar panels to the controller. This comprehensive cabling solution ensures a hassle-free installation process.

Features:

• Complete 340W Remote Power Solution for Off-Grid Operation
• 4000+ Cycle Life @ 80% discharge LiFePO4 Lithium Batteries
• Weatherproof Outdoor Enclosures accommodate up to 400Ah Battery
• Enclosures can be Wall or Pole Mounted (pole not included)
• MPPT Solar Charge Controllers with RS485 Interface
• Thermostatically Controlled Ventilation

Applications:

• Wireless Base Stations
• Remote Lighting
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Off-Grid Power
• Backup Power
