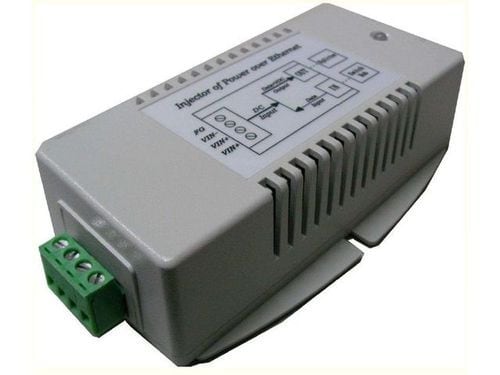

10-15VDC IN 56VDC OUT 50W Hi Power DC to DC Converter and PoE inserter, LVD Function
- SKU: TP-DCDC-1248G-HP
$61.70 $64.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
10-15VDC IN 56VDC OUT 50W Hi Power DC to DC Converter and PoE inserter, LVD Function
Specifications
Specifications TP-DCDC-1248G-HP
| DC Input Voltage | 10VDC - 15VDC |
| DC Output Voltage | 56V (Passive) |
| Data in & Data/POE Output Connector | RJ45 (shielded) |
| Output Current (max) | 0.9A |
| Output Power (max) | 35W |
| Self Consumption Power | 1W |
| Efficiency (min) | 75% |
| Operating Temp | -30 to +60deg C (-22 to +140deg F) |
| Operating Humidity | 5% - 90% |
| Dimensions | 125 x 75 x 38 mm (4.9 x 3 x 1.5 in) |
| Weight | 300g (10.6oz) |
