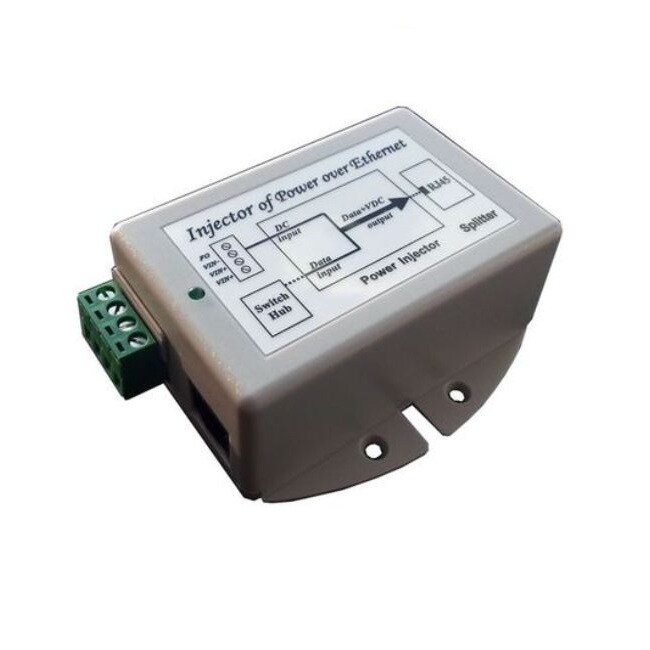

Tycon Systems TP-DCDC-1248GD DC To DC Converter, 802.3af, PoE, 10-36VDC, Shielded, Surge Protection, Low Voltage Disconnect

Features

• Input Voltage 9-36VDC

• IEEE 802.3af Compliant

• Dual Inputs for Connecting 2 Power Sources

• Integrated 10/100/1000MB PoE Inserter

• High Power up to 17W

• Low Self Consumption Power

• Short Circuit, Over Current and Reverse/Over Voltage Protect

• High Temperature Operation

• Compact Size – Maximize Available Space

• I.T.E. Power Supply, UL Listed



Applications

• 12V / 24V Battery Systems, Vehicle Applications

• Wireless Access Points and Client Devices

• IP Phone and Security Camera Systems



The TP-DCDC-1248GD offered by Tycon Power is a low cost and high efficiency solution for those requiring IEEE802.3af from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected.



They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated. A metal enclosure model is available for industrial applications.



They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The other models have power outputs up to 24W.
