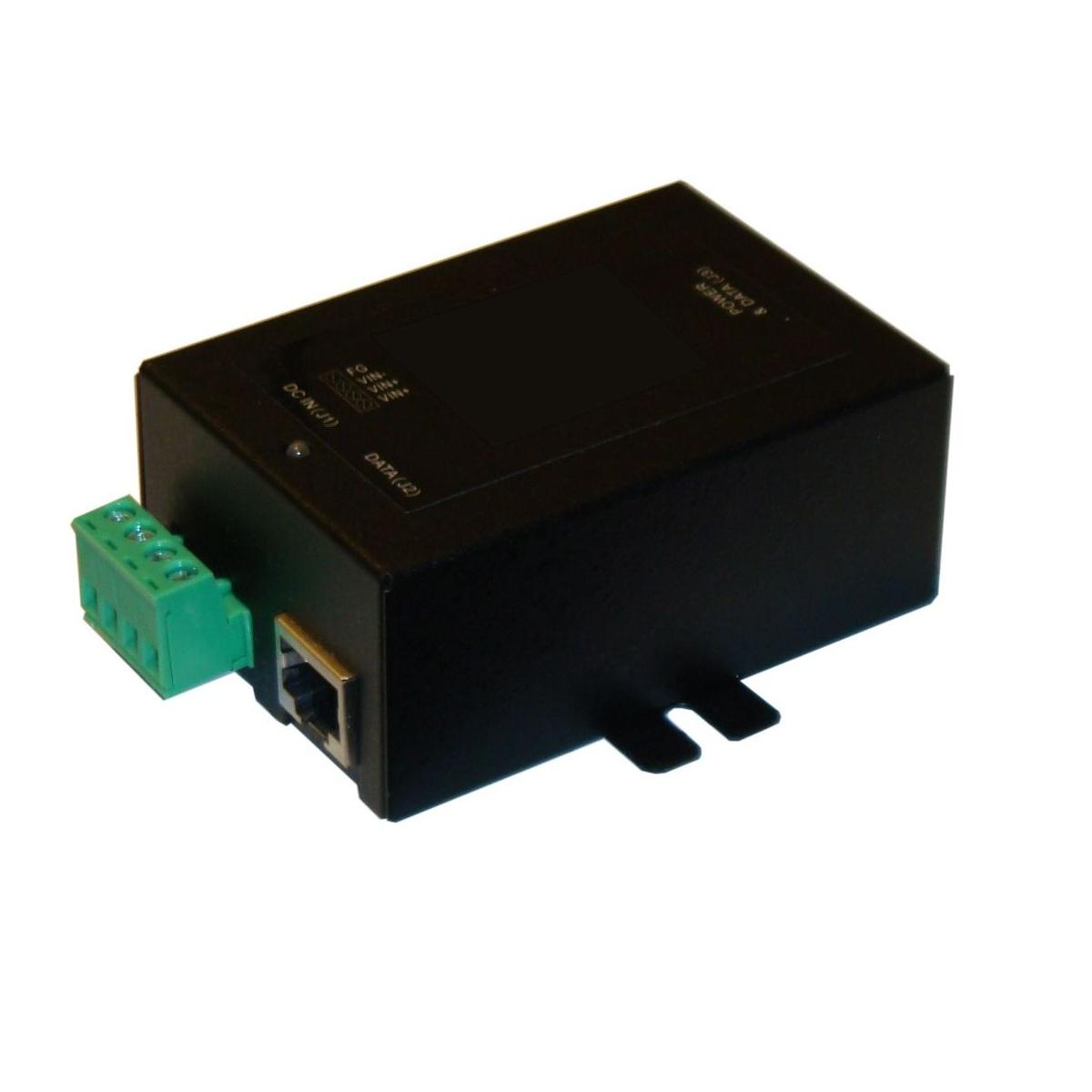

Gigabit 9-36VDC IN 48VDC OUT 17W DC to DC Converter and 802.3af PoE inserter. Metal Enclosure
- SKU: TP-DCDC-1248GD-M
$37.89 $89.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
Gigabit 9-36VDC IN 48VDC OUT 17W DC to DC Converter and 802.3af PoE inserter. Metal Enclosure
Specifications
Specifications TP-DCDC-1248GD-M
| DC Input Voltage | 9VDC – 36VDC |
| DC Input Connector | Removeable Screw Type Compression Wire Terminal (12 AWG Max) |
| DC Output Voltage | 48V (802.3af) |
| Data in & Data/POE Output Connector | RJ45 (Shielded) |
| Output Current (max) | 0.35A |
| Output Power (max) | 17W |
| Self Consumption Power | 1W |
| Efficiency (min) | 75% |
| Line Regulation | 1% |
