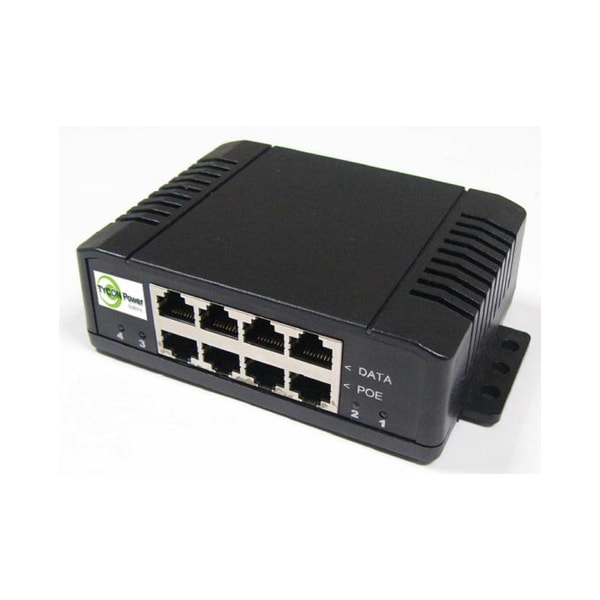

Mid Span, High Power 1A per port, Univolt PoE Injector - 4 port with same or diff PoE voltage, Gigabit.
- SKU: TP-MS4X4
$90.20 $94.95
Product Information
Mid Span, High Power 1A per port, Univolt PoE Injector - 4 port with same or diff PoE voltage, Gigabit.
Specifications
Specifications TP-MS4X4
| DC Input Voltage | 11VDC to 57VDC (Negative common) |

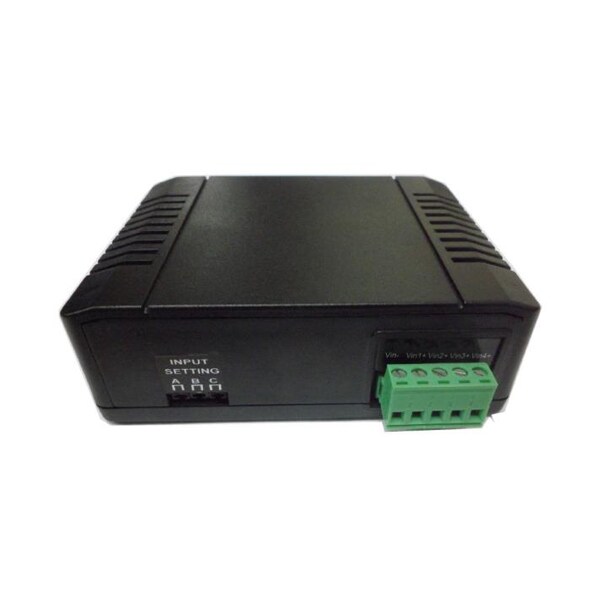

| DC Input Connector | Removable Screw Type Compression Wire Terminal (12 AWG Max) |
| PoE Method | Passive POE |
| Data in & Data/POE Output Connector | RJ45 (Shielded) |
| Self Consumption Power | <5W |
| Interfaces | 4 data-in; 4 data/POE out |
| Maximum POE Power | Up to 1A Per Port |
| Dimensions (LxWxH) | 90mm x 118mm x 40mm |
