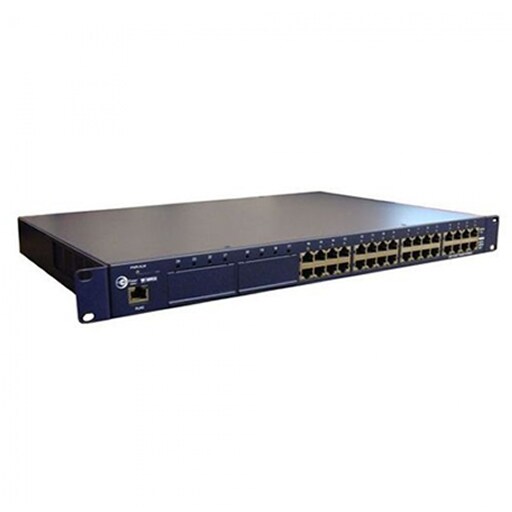

ISOLATED Mid Span Very High Power 40W PoE Injector - 16 port. AC/DC In. 1U Rack Mount. IEEE802.3af/at. Gigabit. 576W
- SKU: TP-MS616-ISO
$1,405.95 $1,479.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
ISOLATED Mid Span Very High Power 40W PoE Injector - 16 port. AC/DC In. 1U Rack Mount. IEEE802.3af/at. Gigabit. 576W
Specifications
Specifications TP-MS616-ISO
| Ethernet Standard | IEEE802.3 / IEEE802.3u / IEEE802.3ab (10base-T / 100base-T / 1000base-T) |
| PoE Standard | IEEE802.3at/af or Passive PoE |
| Shielded RJ45 Ports | 16 data-in ; 16 data/PoE out |
| Console Port | RJ45 Management Port. Can also be managed via network |
| Max Device Distance | 100m (328ft) |
| Maximum PoE Power | 35W per port, 625mA @ 56V |
| PoE Protection | Over Temperature, Over Current, Over/Under Voltage |
| AC Power Input | 100~240VAC, 50/60Hz |
| DC Power Input | -47 to -57VDC |
| Max Power Output | 576W |
| Operating Temperature | -20 to 65°C (-4 to 149°F) |
| Operating Humidity | Up to 95% (non condensing) |
| Storage Temperature | -20 to 80°C (-4 to 176°F) |
| Dimensions | 230 x 290 x 44mm (16.9 x 11.4 x 1.7") 1U rack mount 19" |
| Weight | 4.9kg (10.8lbs) |
