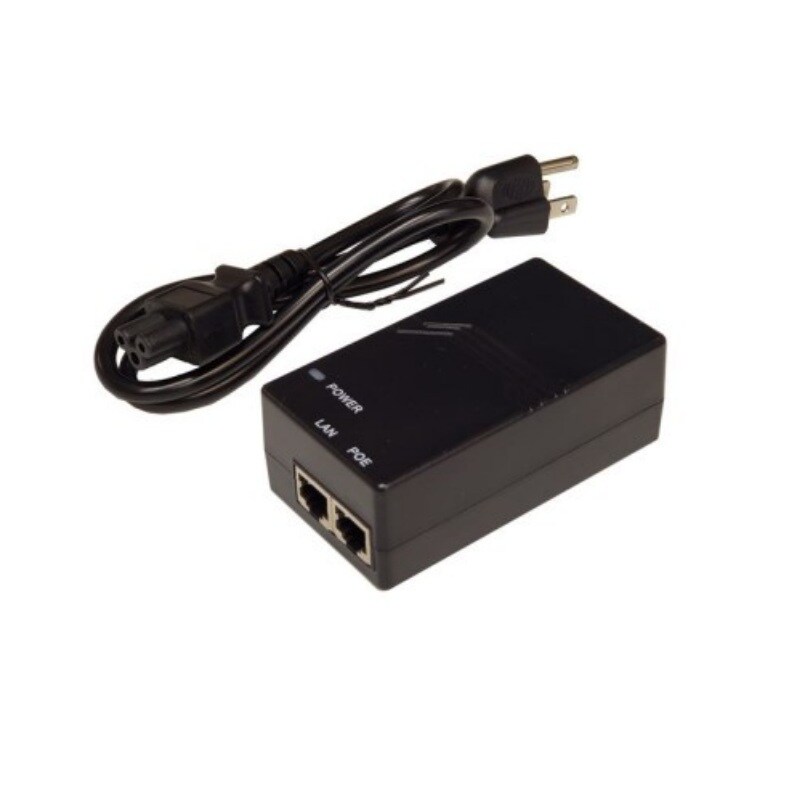

24V 1A 24W 10/100/1000/10000MB Passive PoE Power Inserter with US Power Cord, UL Listed
- SKU: TP-POE-24-10G
$42.70 $44.95
- Manufacturer: Tycon Power
- Spec Sheet: Download
Product Information
24V 1A 24W 10/100/1000/10000MB Passive PoE Power Inserter with US Power Cord, UL Listed
Specifications
Specifications TP-POE-24-10G
| AC Voltage Input | 100-240 VAC 50/60Hz |
| Output PoE Voltage | 24 VDC +/- 5% Passive PoE Mode B |
| RJ45 Pins with Power | 4,5 + 7,8 - |
| Maximum Load | 1A (24 W) Max |
| Protection | Short Circuit, Overcurrent, Surge/ESD (8 kV) |
| Efficiency | 86% Min. |
| Ripple and Noise | 120 mV p-p Max |
| Data Rate | 10/100/1000/10000Mbps (10Gb) |
| No Load Consumption | 0.1 W Max |
| Operating Temperature | -20 to +50o C |
| Storage Temperature | -30 to +80o C |
| Operating Humidity | 10% - 90% N.C. |
| Size (L x W x H) | 3.81 x 2.1 x 1.4” (97 x 53.5 x 35.5mm) |
| Weight | 4.7oz (133g) |
| MTBF | 120,000 Hrs |
| Connections | RJ45 Shielded Jacks |
| Ethernet Cable Compatibility | CAT 6 ( or higher) |
| Warranty | 3 years |
| Certifications | UL, CE, FCC |
