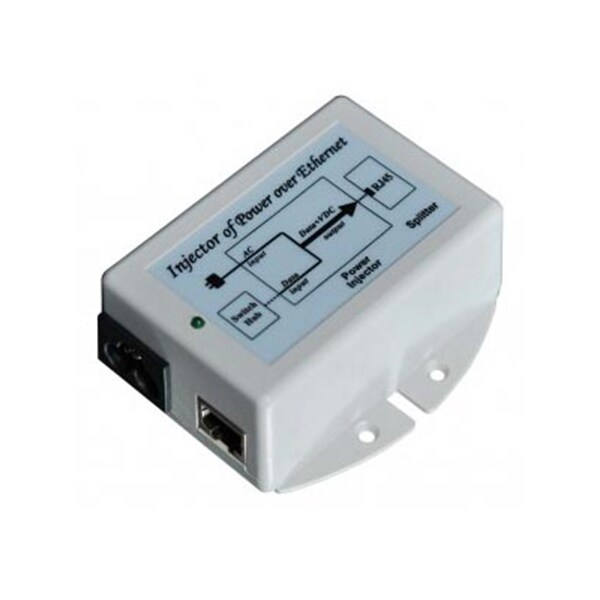

Tycon Power 100-240VAC Input 24V Gigabit PoE Injector 19W with US Power Cord
- SKU: TP-POE-24G
Product Information
The TP-POE-24G Power over Ethernet Power Source offered by Tycon Power is a quality midspan power source for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). For the “R” model the voltage is reversed. 4,5(V-) and 7,8(V+). The Ethernet spec supports distances up to 100m (328 feet).
The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated DC Voltage at the output. They have various protections for surge, short circuit, overload and overvoltage. The medium power models have power output up to 24W. This model has a 24V DC Output with load regulation within 5%. The CI model has a special current sense LED which changes color when a PoE device is plugged onto the CAT5/6 cable.
If the remote device does not support power over Ethernet a (POE-SPLT-S) splitter is available to split the data and DC voltage at the remote device. If the remote device requires reverse voltage the POE-XOVER cable can be used.
Product Features- Remotely Power Equipment thru CAT5/6 Cable up to 100m
- Built in Ethernet and AC Surge Protection
- Autoranging Switching Power Supply
- Short Circuit, Over Current and Over Voltage Protection
- Medium Power Model up to 24W
- Passive PoE Model
- 10/100Mb and 10/100/1000Mb Models Available
- High Temperature Industrial Operation
- Compact size – Floor / Desktop / Wall Mount
- I.T.E. Power Supply, UL Listed
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
Specifications
Specifications TP-POE-24G
| POE Output Voltage (+/- 2.5%) | 24V |
| Output Current | 0.8A |
| Output Power | 19W |
| POE Type | Passive |
| Dimensions (LxWxH) | 85 x 76 x 36mm (3.4 x 3 x 1.4”) |
| Weight | 0.75 inch |
| AC Input | 90-264VAC 47-63Hz |
| Max Inrush Current (120VAC) | 30A |
| Efficiency (min) | 85% |
| Line / Load Regulation | 1% / 5% |
| Ripple / Noise | 1% / 2% |
| Protections | Over-Voltage, Short Circuit, Over-Current |
| Surge Protection (+/- 4KV)( IEC 61000-4-2 ) | Ethernet: 4 Pin (1/2,3/6) Common Mode Protection, 7.5V Clamping Voltage 5.4A (8/20µs) Peak Pulse Current, <2pF Shunt Capacitance |
| EMC Standards | FCC Class B EN55022 Class B |
| Safety Standards | UL1950, CSA 22.2 & TUV EN60950 |
| Environmental Standards | RoHs |
| Operating Temperature | -30 to +60°C (-22 to +140°F) |
| Operating Humidity (RH) | 5% - 90% |
| Storage Temperature | -40 to +80°C (-40 to +176°F) |
