Tycon Power 5 Port Unmanaged Gigabit 802.3bt PoE Network Switch, 46-58VDC Wire Term In, 4x 802.3bt PoE Ports + 1x 802.3bt Uplink Port, 90W per port
- SKU: TP-SW5G-D-BT
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
5 port High Power PoE 10/100/1000BASET switch.Requires 53-57V DC Power Source.IEEE 802.3bt 90W per port output, 802.3bt Input Port 5

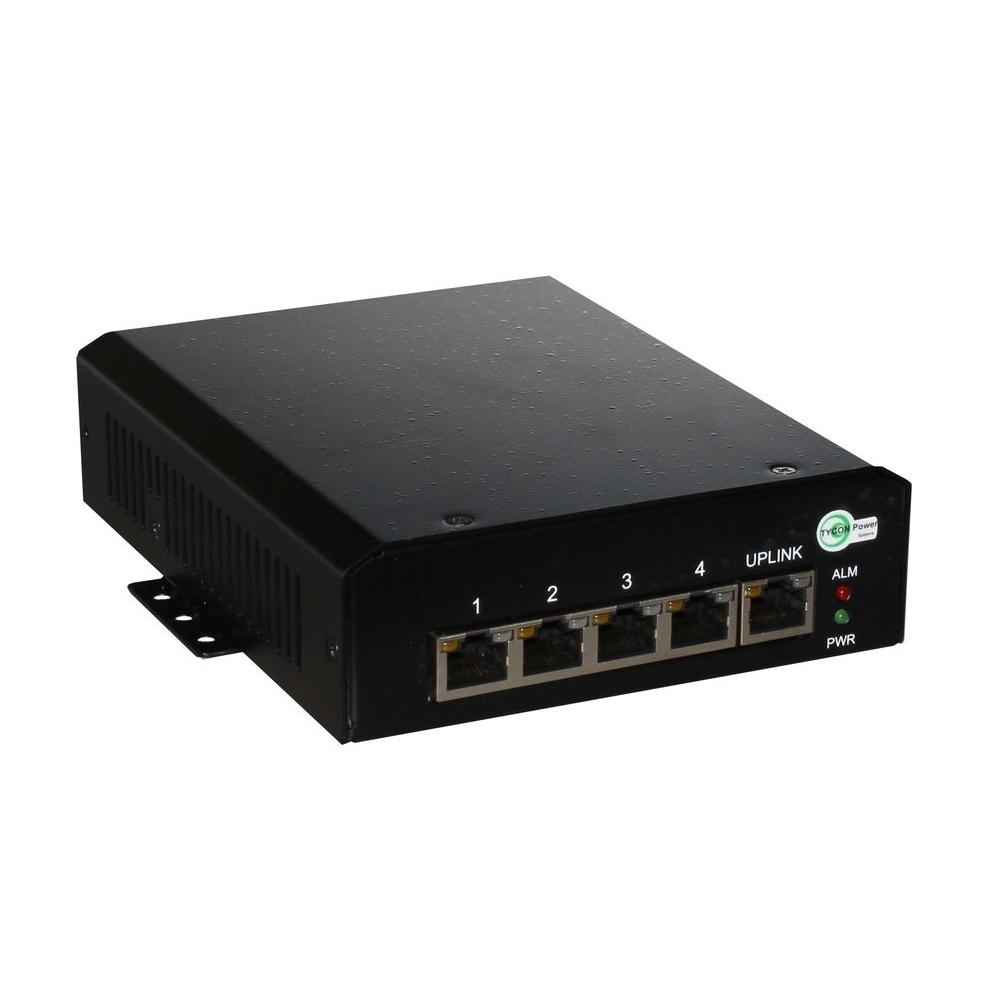

The TP-SW5G-D-BT Power over Ethernet (PoE) 5 Port Gigabit switch offered by Tycon® is a fully automatic high speed, high power, Layer 2 Ethernet switch with one 802.3bt PoE input and four 802.3bt PoE outputs. Ports 1-4 are 802.3af/at/bt compatible with up to 90W PoE Out per port utilizing 2 or 4 pairs for power. The Uplink Port 5, is 802.3bt compatible so the switch can accept up to 70W PoE on 4 pairs to power the switch and connected devices remotely over CAT5 or higher Ethernet Cable. The Ethernet spec supports distances up to 100m (328ft). By using as a repeater, 200m total Ethernet distance is realistic.

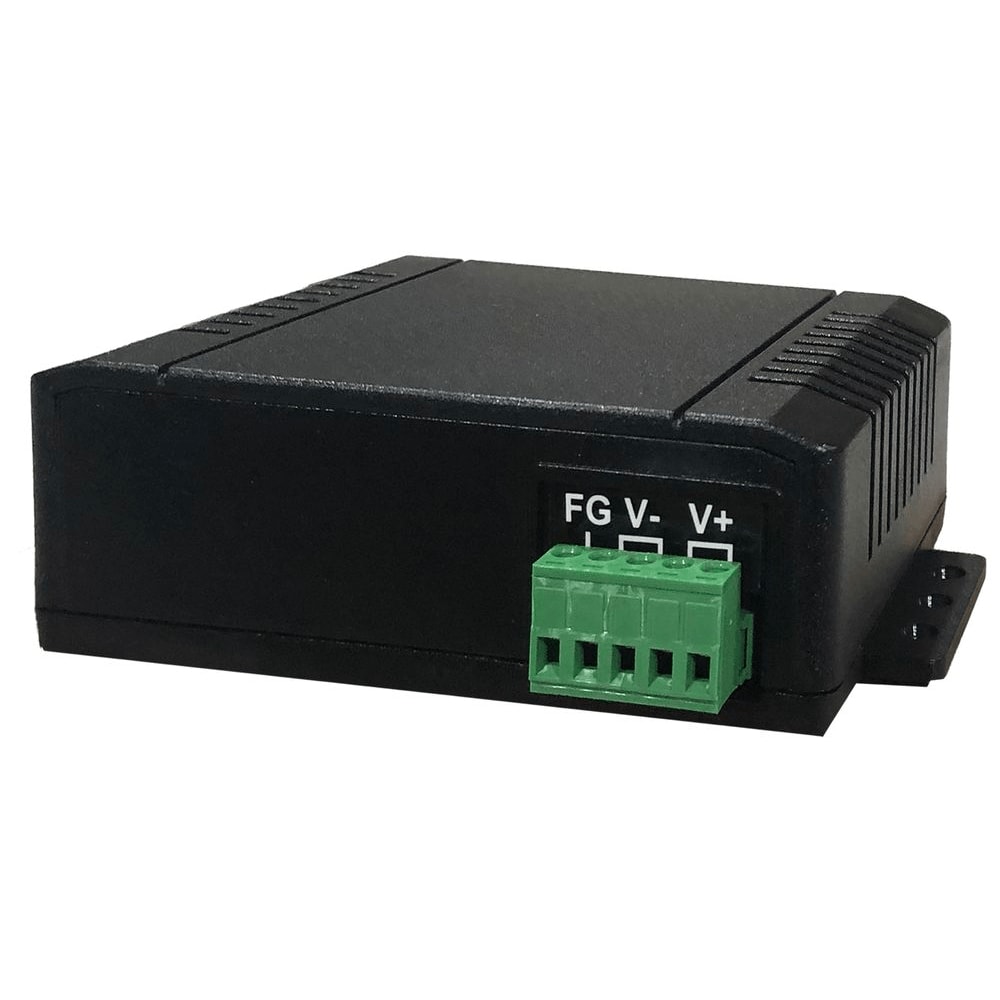

The switch can accept power via two different interfaces: Wire Terminal Connector (10A, approx 500W Max) or via 802.3bt PoE input to Uplink Port 5 (70W Max). Two different power inputs can be used for redundancy. The higher voltage takes priority
The RJ45 connectors are shielded and grounded to the common “FG” (Frame Ground) connection. The units have 15kV surge protection on all Ethernet wires and are conformal coated for moisture protection. They have a wide operating temperature range for outdoor and industrial applications.
Features:
- Power Inputs: 802.3bt PoE to Port 5, Wire Terminal
- Gigabit Compatible
- Built-in Surge Protection
- Automatic MDI/MDI-X Crossover
- Automatic Speed and Duplex Sensing
- Low Self Power and High Temperature Operation
- DIN Rail Adapters included
Applications:
- Power 4 802.3af/at devices from an 802.3bt (70W) PoE Input
- Power 4 802.3bt (up to 90W) from a wire terminal input
- Remote or Local Power for Cameras and Wireless Radios
- Also Functions as Ethernet/PoE repeater
- PoE Lighting Applications
Specifications
Specifications TP-SW5G-D-BT
| Ports | Port 1-4: 802.3bt 90W per port, supports 2 or 4 pair power Port 5: UPLINK 802.3bt Compatible PoE Input to 70W |
| Transmission Speed | 1000 Mbps (Gigabit) / 100 Mbps /10 Mbps Auto-negotiation |
| Data/PoE Connections | Shielded RJ45, Grounded to FG connection |
| Input Voltage | Vin 53VDC to 57VDC on Wire Terminal or 802.3bt PoE on port 5 44-57V OK if powering 802.3af devices 50-57V OK if powering 802.3at devices Note: Input power (watts) must be higher than total PoE power out (watts) |
| LED Function | Power on LED: Green = OK, Off = Fault RJ45 LED’s: Port 1-5 Right Hand LED: Link Light (Blinking) (Green = Gigabit, Yellow = 100Mb) Port 1-4 Left Hand LED: PoE ON 4 pair (Yellow On), PoE ON 2 pair (Yellow Blinking) Port 5 Left Hand LED: PoE Power On (Yellow On) |
| PoE Protections | Over Temperature, Over Current, Short Circuit |
| Surge Protection | IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) |
| Self Consumption | < 5 Watt Typical |
| Switch Technology | Store and Forward, automatic MDI/MDI-X crossover |
| Protocol | CSMA/CD |
| Flow Control | IEEE802.3x(full-duplex), Back Pressure(half-duplex) |
| Data Transmission Rate | 1488000pps , 148800pps, 14880pps ; Automatic speed and duplex sensing |
| Address Table | 2K MAC, self-learning |
| Operating Temp | -30 to +70°C (-22 to 158°F) |
| Operating Humidity (RH) | 5% - 90% (non condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Dimensions (LxWxH) | 159 x 118 x 40mm (6.3 x 4.6 x 1.6”) |
| Weight | 318g (11oz) |
| Warranty | 3 Years |
