Tycon Power Circuit Breaker, 100A 500VDC, 2 Pole, DIN Mount
- SKU: TPDIN-CB-100A-2P
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
Circuit Breaker, 100A 5000VDC, 2 Pole, DIN Mount

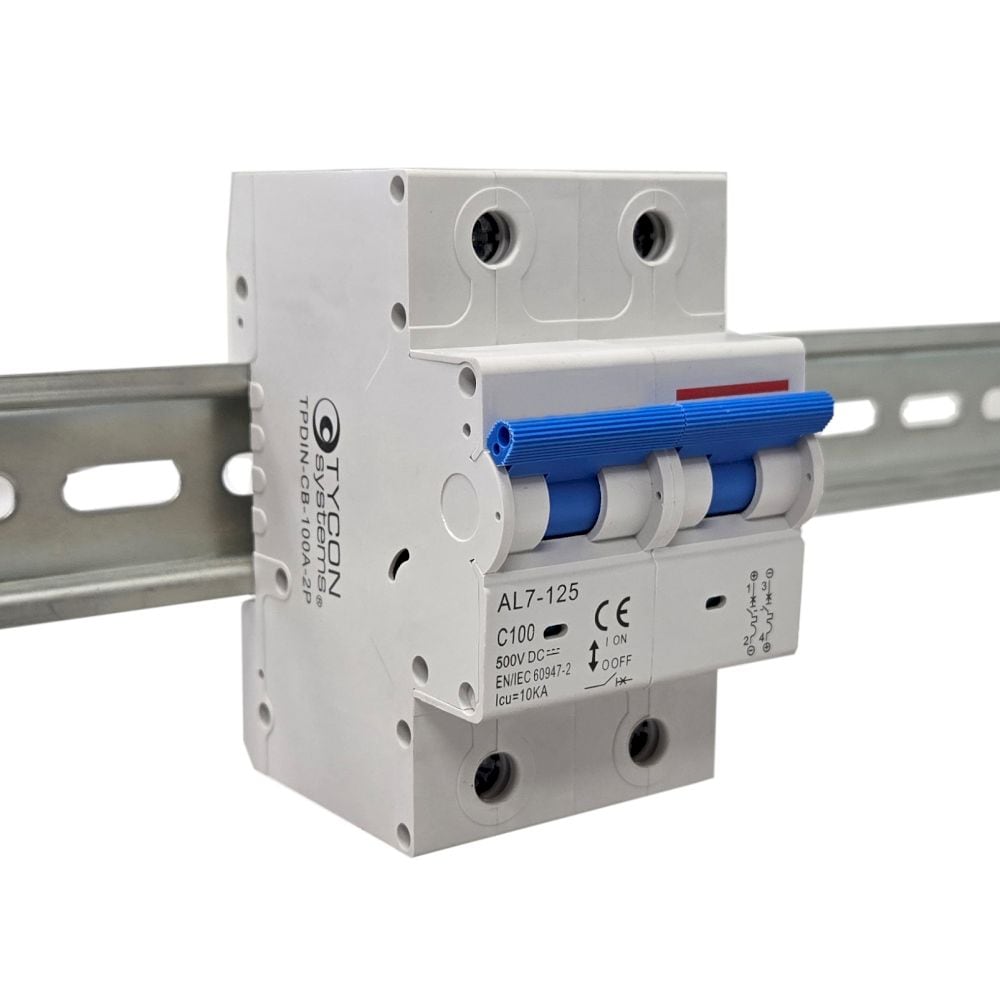

The Tycon Solar® TPDIN-CB-100A-2P is a high-quality DIN Rail mount miniature circuit breaker specifically designed for DC systems, making it ideal for remote power and solar systems. This versatile circuit breaker operates with a 500V and 100A trip point, providing reliable protection and functionality in various applications.
DIN Rail Mount Circuit Breaker
The TPDIN-CB-100A-2P is designed for easy installation on standard DIN rails, commonly used in industrial and commercial settings. This ensures a secure and organized setup within control panels or enclosures.
High Voltage Rating
With a 500V and 100A trip point, this circuit breaker is capable of handling high voltage and current levels, making it suitable for a wide range of DC applications.
Versatile Applications
This circuit breaker is perfect for use as a battery and solar panel disconnect switch, providing an efficient solution for isolating and protecting these components. It also offers reliable overload protection, ensuring the safety and longevity of your power systems.
Compact Design: The miniature size of this circuit breaker allows for space-saving installation, making it an excellent choice for systems with limited space. Its compact design does not compromise on performance, ensuring reliable protection in a small form factor.
Compact Design: The miniature size of this circuit breaker allows for space-saving installation, making it an excellent choice for systems with limited space. Its compact design does not compromise on performance, ensuring reliable protection in a small form factor.
Features:
- DC DIN Mount Circuit Breaker
- Rated for up to 500VDC @ 100A
- Mechanical life >10,000 Cycles
Applications:
- Remote Power Systems
- Solar Power Applications
Specifications
Specifications TPDIN-CB-100A-2P
| Rated Trip Current | 100A |
| Trip Type | Thermal Magnetic |
| Rated Voltage @ Current | 500 VDC @ 100A |
| Insulation Voltage | 1000V |
| Impulse Voltage | 6kV |
| Short Circuit Trip Current | 10kA Max |
| Mechanical Life | >10,000 Cycles |
| Electrical Life | >1500 Break Cycles |
| Terminal Wire Size (Max) | 9mm Diameter, 0 AWG |
| Fastening Torque | 2.0 ~ 3.5 Nm (1.5 ~ 2.5 ft lb) |
| Environmental Protection | IP40 |
| Relative Humidity | <95% |
| Vibration | IEC60069-2-6 |
| Shock | IEC60068-2-27 |
| Certifications | CE, RoHS |
| Operating Temp | -30°C to 70°C (-22°F to 158°F) |
| Max Storage Temperature | 85°C (185°F) |
| Dimensions (L x H x W) | 86 x 75.5 x 54mm (3.4 x 3 x 2.1”) |
| Weight | 240g (0.53lb ) |
| Warranty | 3 years |
