Tycon Power 12/24V Auto 40A MPPT Smart Temp Comp 100V Solar Charge Ctrl w/ Status Display and Load Ctrl

12/24V Auto 40A MPPT Smart Temp Comp 100V Solar Charge Ctrl w/ Status Display and Load Ctrl, 40A Solar/20A Neg Gnd Load Out, Modbus, DIN Rail/Wall Mt, WET AGM GEL Lithium and Custom Battery Charge

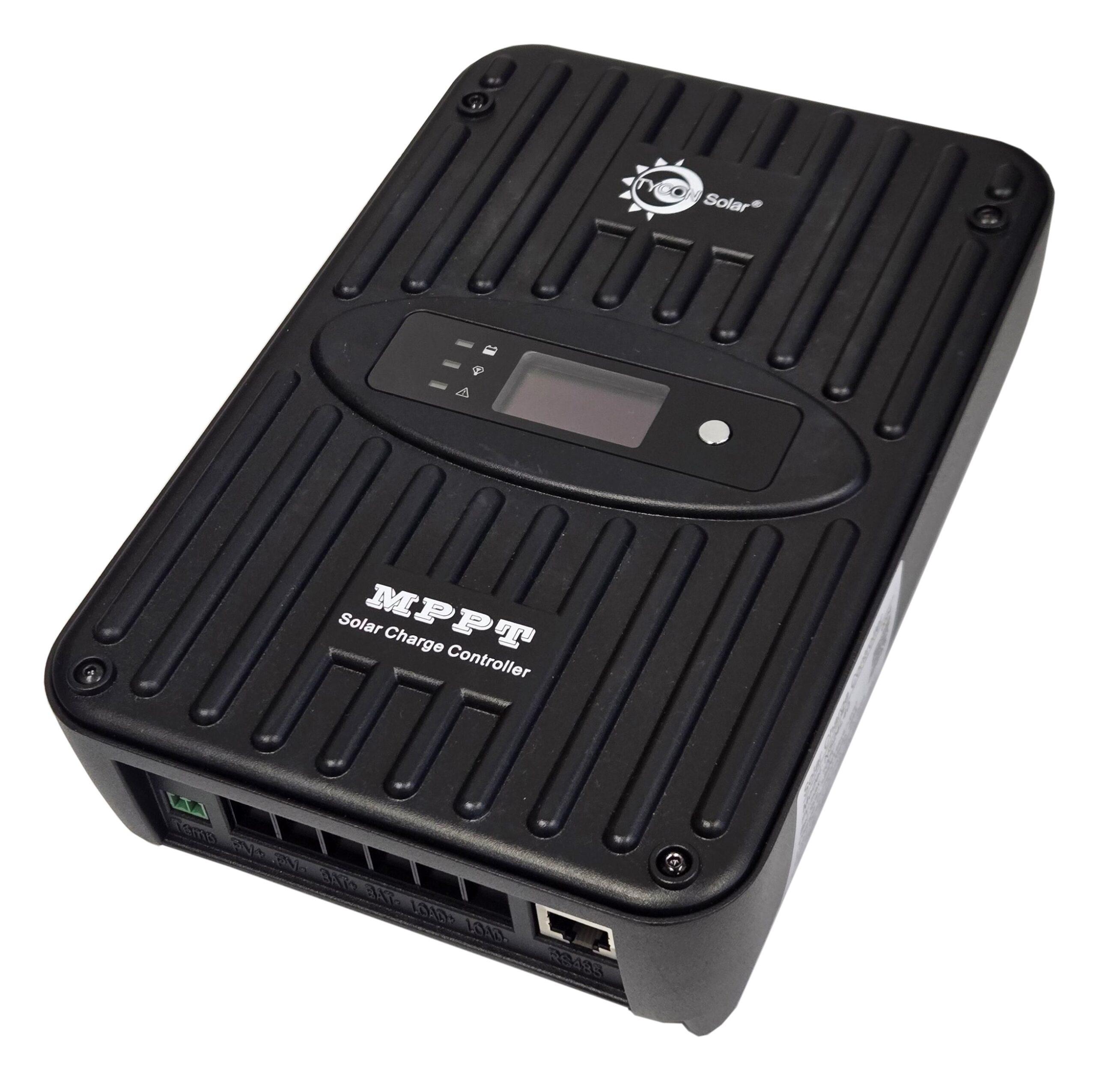

The TS-SC24-40N-MPPT, a 40A MPPT Solar Controller, optimizes your solar power system’s performance. This advanced controller ensures your solar panels operate at their maximum power point, boosting your energy production efficiency. Its robust design and high-quality components guarantee reliable and long-lasting performance.

Firstly, the controller features an intelligent tracking algorithm that continuously monitors and adjusts your solar panels’ operating point. This algorithm maximizes energy harvest from your solar array, even under varying weather conditions. Additionally, the TS-SC24-40N-MPPT includes multiple protection features, such as overcharge, over-discharge, and short-circuit protection, safeguarding your system and extending your batteries’ lifespan.

Moreover, the TS-SC24-40N-MPPT is user-friendly and easy to install. It comes with a clear LCD display that provides real-time information on system performance, including voltage, current, and power output. The intuitive interface allows you to easily configure settings and monitor your solar power system’s status.

Furthermore, this solar controller is compatible with various types of batteries, including lead-acid, lithium-ion, and gel batteries. This versatility makes it an ideal choice for a wide range of solar power applications, from residential to commercial installations.

Key Features:

• Auto-Ranging Battery Systems: Compatible with both 12V and 24V battery systems.
• Battery Compatibility: Additionally, these are suitable for Sealed (AGM), GEL, Flooded, and Lithium batteries. They also offer a USER setting for customizable battery charge settings.
• OLED Blue Display: Display includes PV Volts, Battery Volts/Current/Watts/Temperature, Load Amps/Watts, and charge state. The display dims automatically to save power.
• Lightning Protection: Operationally equipped with TVS diode protection against lightning strikes.
• Wide Temperature Range: Operate over a wide industrial temperature range.
• Parallel Operations: RS485 Interface: The MPPT controllers can be specifically connected via the RS485 interface for parallel operations, allowing multiple solar arrays to feed into a single battery bank.

Connections and Mounting:

• Screw Terminals: Connections are via 6 screw terminals for wire size up to 4AWG.
• Internal and External Fuses: The controllers are internally fused for protection, but it is recommended to use a 63A to 100A external fuse or circuit breaker between the controller and the battery.

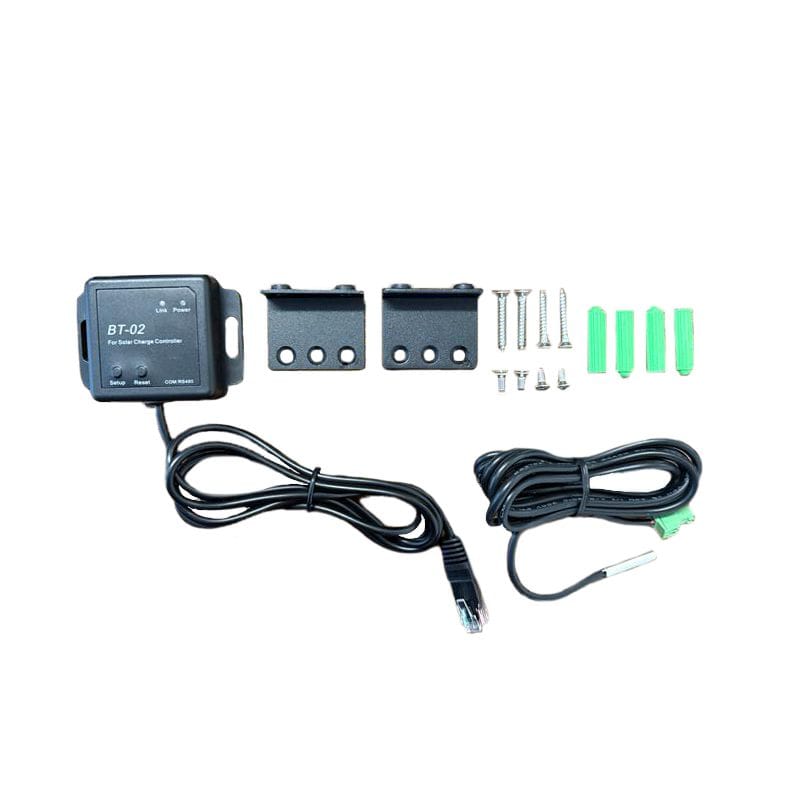

• Mounting Options: There are four 3mm threaded holes for permanent mounting to a flat plate. Brackets are included for mounting to a wall or DIN rail using the Tycon #DIN-CLIPKIT-UNI DIN rail adapter bracket kit.

Full Electronic Protections

Include protections for short circuit, reverse current, over-power, over-voltage, over-charge, over-discharge, and over-temperature. The built-in over-discharge protection and low self-consumption ensure the battery is not over-discharged, greatly increasing battery life. All protections are auto-recovery.

Features:

• MPPT Temp Compensated Charging (99.5% Efficient)
• Included Bluetooth Interface for Monitor and Control
• OLED Blue Display for higher visibility in varying light conditions
• Auto-ranging 12V or 24V Battery Arrays
• Multimode Load Operation – 4 selectable modes
• Soft Start 20A or 30A Load Output to Power High Capacitive Loads
• TVS lightning protection, Industrial Temperature Range
• Low self-consumption <1.8W

Applications

• Remote Power Systems
• Solar Lighting
• Solar Power Applications
