Tycon Power UPSPro 12/24V 100Ah 2400Wh Outdoor Lithium Backup Power System
- SKU: UPL12/24-100L-600
Product Information
UPSPro 12/24V 100Ah 2400Wh Outdoor Lithium Backup Power System, 12/24V Out, 60A MPPT Chrg Ctrl w/Status Disp/30A Ld Ctrl, 120/240VAC In 63V 500W Batt Chrg, 2-4"Pole/Wall Mt AL Lock Encl
The UPSPro® 600W Lithium series outdoor enclosures from Tycon Power® are meticulously designed for applications that require a reliable backup power source to maintain uninterrupted service to customers. These enclosures are powered from 120/240VAC, ensuring continuous operation during power outages. Additionally, they are solar ready (blocking diodes may be required), allowing you to add a solar panel as an alternate power source or to extend backup time.
Advanced Features for Enhanced Performance

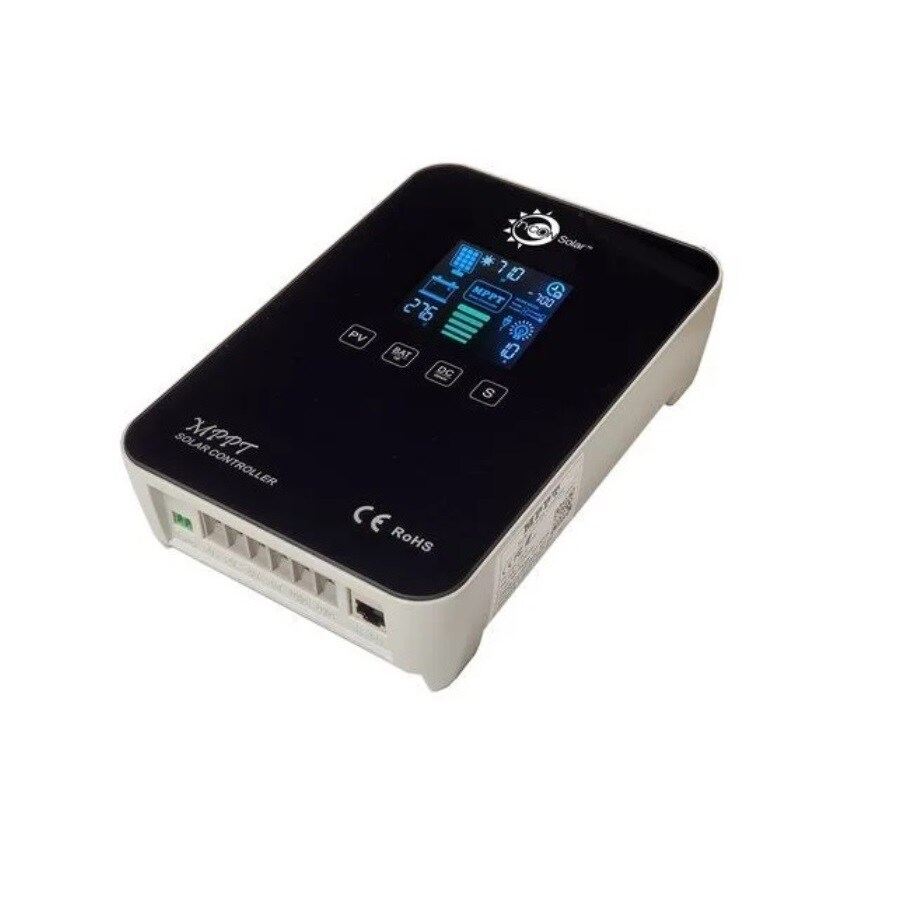

Advanced MPPT Solar Battery Charge Controller: The enclosures feature an advanced MPPT solar battery charge controller with an LCD display that provides system information. This controller includes LVD load control and solar charging capability, ensuring optimal performance and protection of the batteries.
LFP (LiFePO4) Lithium Batteries: The LFP (LiFePO4) Lithium batteries have an embedded BMS (Battery Management System) to maintain proper charging, achieving a 4000+ cycle life at 80% discharge. With an expected battery life of over 10 years, these batteries offer long-term reliability.
Flexible and Secure Enclosures
Multiple Ports for Cabling Needs: The enclosures are designed with multiple ports for CAT5 cable, antenna cables/connectors, and other cabling, providing flexibility for various wiring needs. This design ensures a clean and organized installation, enhancing the overall efficiency of the system.

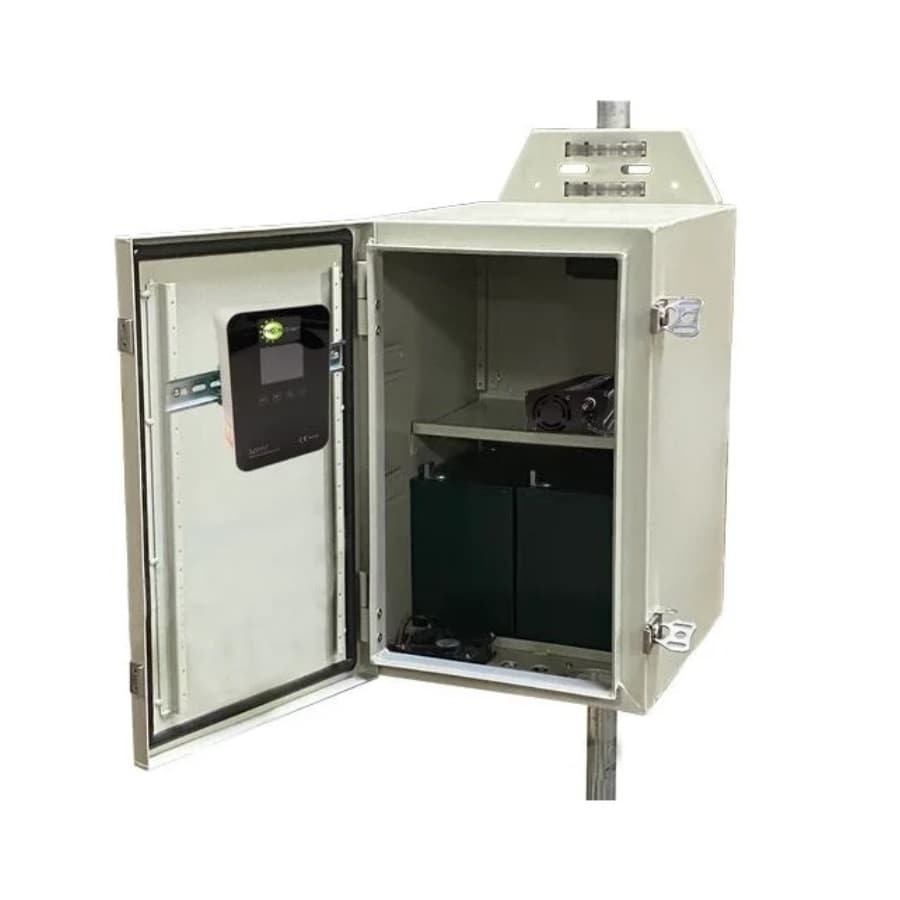

Space for Customer Electronics
Integration of Additional Equipment: Inside the enclosures, there is ample space for customer electronics such as controllers, wireless access points (AP), customer premises equipment (CPE) cards, sensors, and more. Running equipment on battery power isolates it from power line surges, a common cause of outdoor equipment failure, thereby enhancing the reliability of the system.
Multiple Configurations Available
Versatile Power Solutions: The UPSPro® series offers multiple configurations for 12V or 24V systems with various battery storage capacities, catering to different power requirements. This versatility makes the series suitable for a wide range of applications.
Efficient and Reliable Performance
Backup Power for Critical Equipment: A typical PTZ camera with an average power consumption of 20W can run for 24 hours on a 50Ah battery. This demonstrates the efficiency and reliability of the UPSPro® 600W Lithium series in providing backup power for critical equipment.
Features:
- Uninterruptible Power System
- Solar Ready™

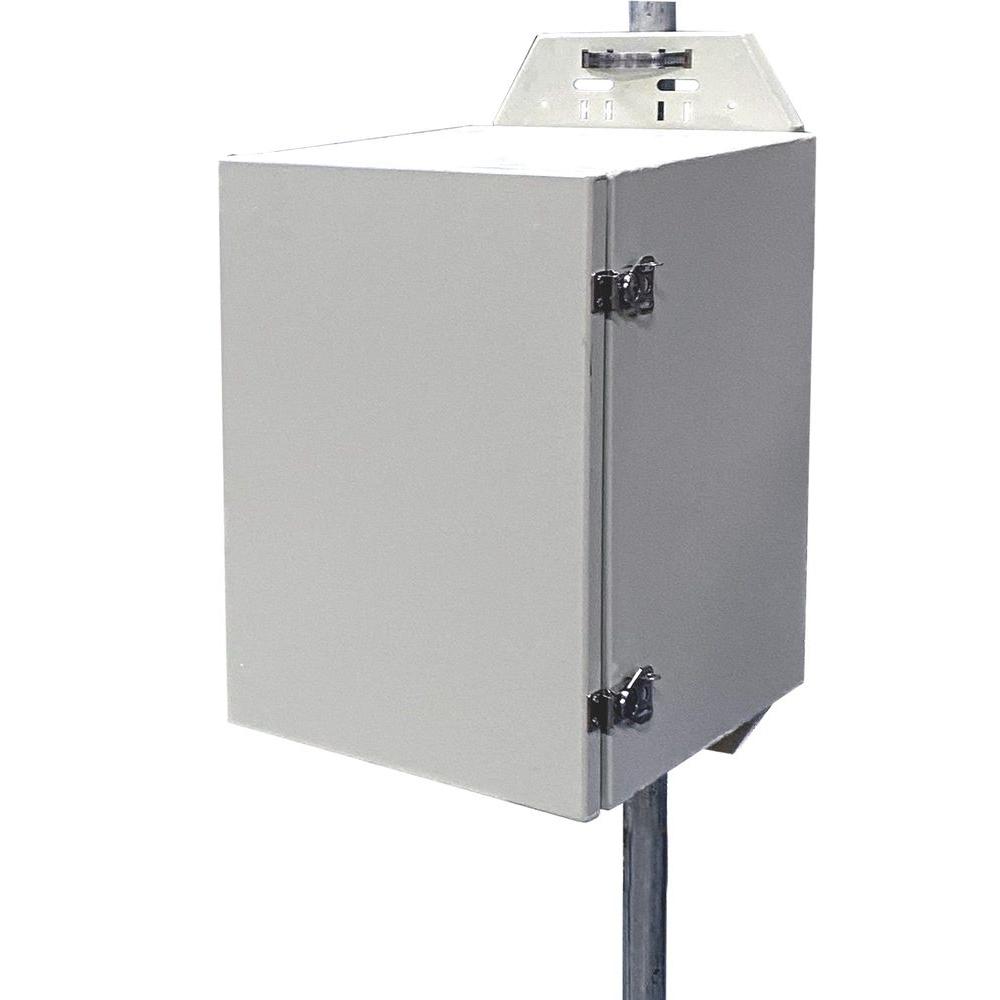

- Weatherproof, UV resistant, outdoor enclosures
- Powered from AC mains power and/or Solar
- LFP (LiFePO4) Lithium Batteries
- Isolates Customer Equipment from Power Line Surges
- Interior space for customer electronics
- Wall or Pole Mounting
Applications:
- Wireless Base Stations and Clients
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Remote Sensors
- Mission critical outdoor power
- Backup Power Systems
Specifications
Specifications UPL12/24-100L-600
| Battery Voltage (DC) | 12V or 24V |
| Charger Input Voltage (AC) | 100/240VAC, 47-63Hz |
| Max Output Power | 600W |
| Suggested Maximum Load | 350W @ 12V, 400W @ 24V |
| Maximum Instantaneous Load | 30A 500msec |
| Battery Type | LFP (LiFePO4) Lithium without heater |
| Battery Life | 10+ Years |
| Controller Type | 60A MPPT Solar Controller with Status Display and Load on/off switch Max Solar Panel Size 12V 720W , 24V 1440W 100V Max |
| Controller Display Status | Battery Voltage, Charging Current, Load Current, Temperature |
| Charge Voltage | 28.8V |
| Over-discharge protection | 22V |
| Over-discharge recovery voltage | 24.6V |
| Controller Self Consumption | <1W |
| Enclosure Type | LG Aluminum |
| Enclosure Size | 21 x 14 x 15" (533 x 356 x 381mm) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| System Weight (without batteries) | 34lb (15kg) |
| Battery Weight (each) | 13.5lb (6kg) |
| Warranty | 3 Years |
