Tycon Power UPSPro 24V 1200Wh 100Ah Outdoor Lithium Backup Power System, 24V75W Cont Ld Out
- SKU: UPS24-100L-120
Product Information
Tycon Power UPSPro 24V 1200Wh 100Ah Outdoor Lithium Backup Power System, 24V75W Cont Ld Out, 24V20A PWM Chrg Ctrl w/Status Disp/20A Ld Ctrl, 120/240VAC 24V120W Batt Chrg w/16" 2wire DC Cable, 2-4"Pole/Wall Mt, Small Al Lock Encl
The UPSPro® 120W Lithium series outdoor enclosures from Tycon Power® are meticulously designed for applications requiring a reliable backup power source to maintain uninterrupted service to customers. Operating on 120/240VAC input, these systems guarantee continuous operation during power outages. Additionally, they are solar-ready, allowing for easy integration of a solar panel as an alternate power source or to extend backup time. This flexibility ensures seamless operations, even during power interruptions.
Advanced Features for Enhanced Performance

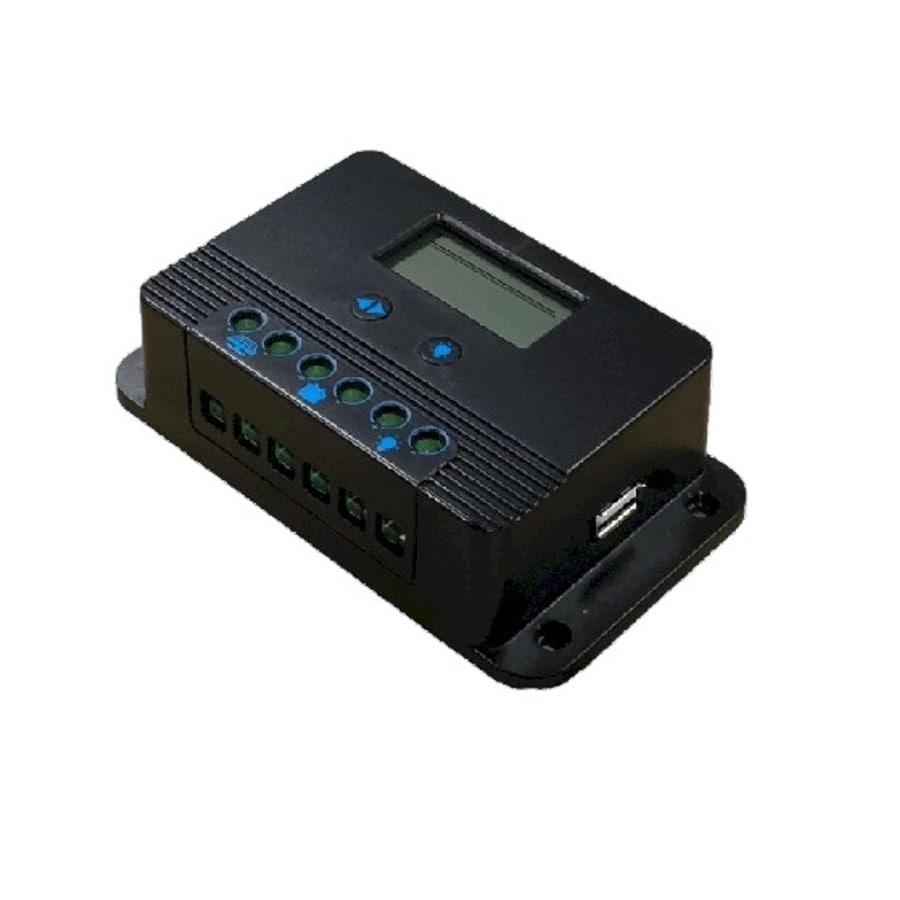

Solar Battery Charge Controller and LCD Display: The enclosures feature an advanced solar battery charge controller with an LCD display that provides essential system information. This controller includes LVD load control and solar charging capability, ensuring optimal performance and protection of the batteries.

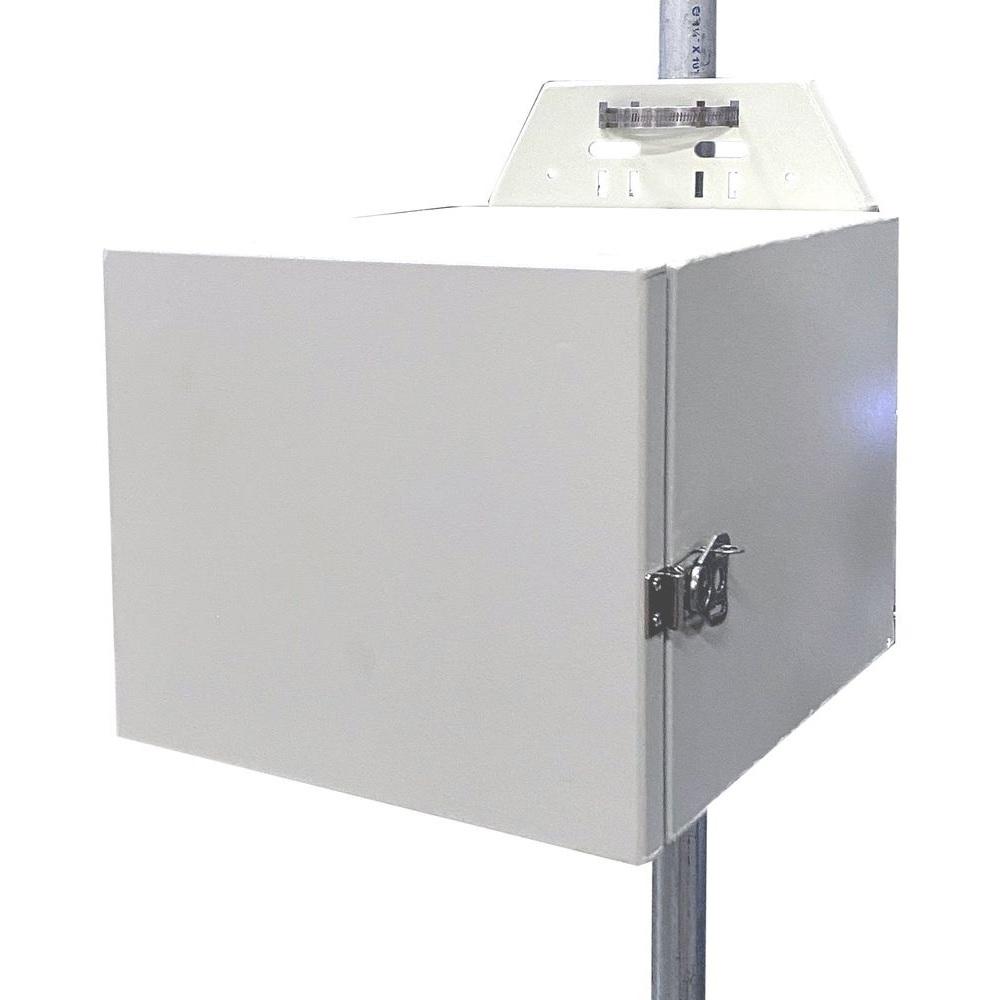

Flexible and Secure Enclosures
Multiple Ports for Cabling Needs: Designed with multiple ports for CAT5 cable, antenna cables/connectors, and other cabling, the enclosures provide flexibility for various wiring needs. This design ensures a clean and organized installation, enhancing the overall efficiency of the system.
Space for Customer Electronics

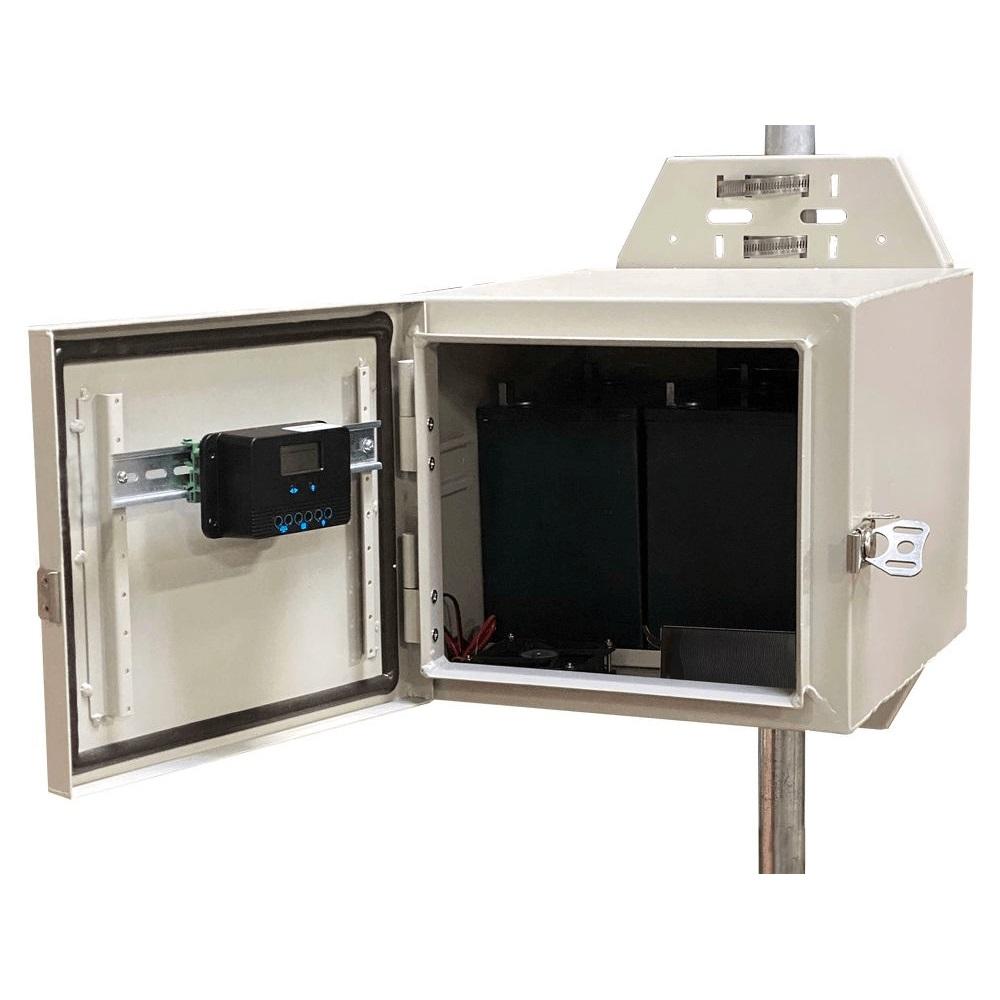

Integration of Additional Equipment: Inside the enclosures, there is ample space for customer electronics such as controllers, wireless access points (AP), customer premises equipment (CPE) cards, sensors, and more. Running equipment on battery power isolates it from power line surges, a main cause of outdoor equipment failure, thereby enhancing the reliability of the system.
Multiple Configurations Available
Versatile Power Solutions: The UPSPro® series offers multiple configurations for 12V or 24V systems with various battery storage capacities, catering to different power requirements. This versatility makes the series suitable for a wide range of applications.
Efficient and Reliable Performance
Backup Power for Critical Equipment: A typical wireless access point with an average power consumption of 4W can run for 24 hours on a 10Ah battery. This demonstrates the efficiency and reliability of the UPSPro® 120W Lithium series in providing backup power for critical equipment.
Features:
- Uninterruptible Power System
- Solar Ready™
- Weatherproof, UV resistant, outdoor enclosures
- Powered from AC mains power and/or Solar

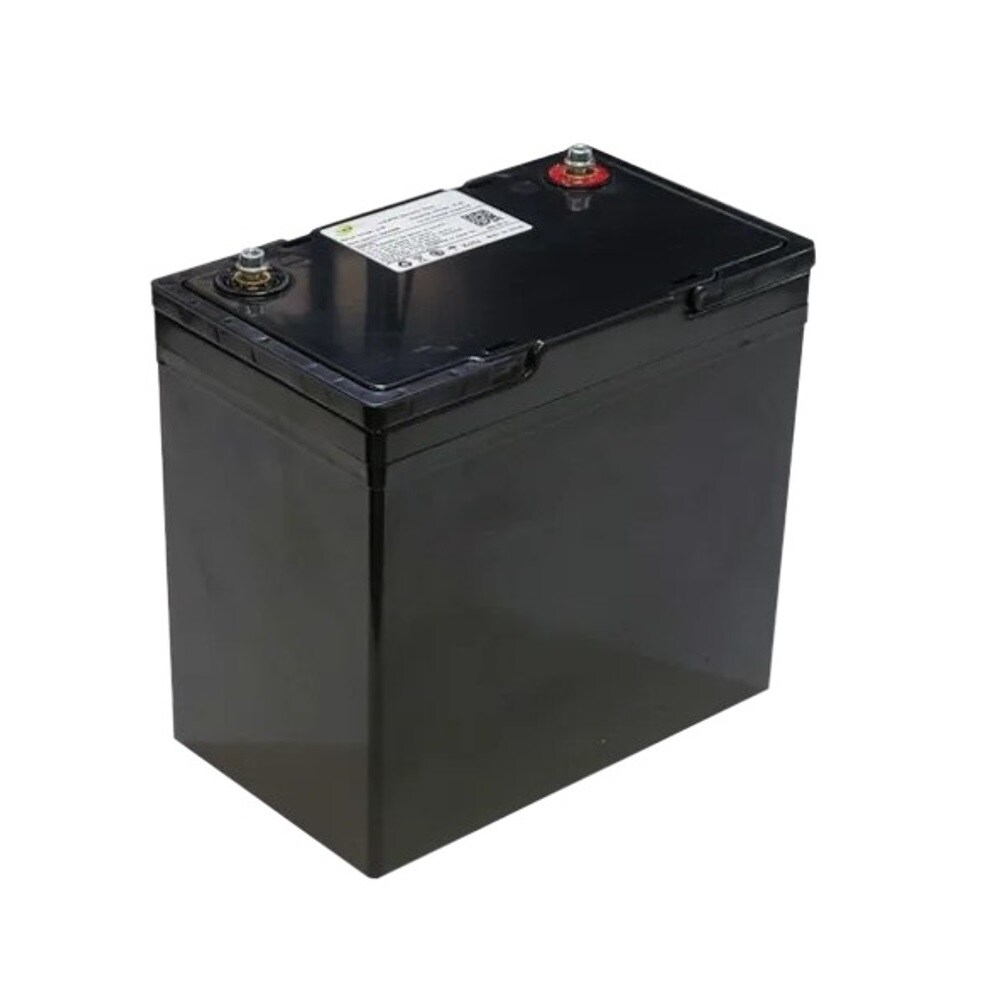

- LFP (LiFePO4) Lithium Batteries
- Isolates Customer Equipment from Power Line Surges
- Interior space for customer electronics
- Wall or Pole Mounting
Applications:
- Wireless Base Stations and Clients
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Remote Sensors
- Mission critical outdoor power
- Backup Power Systems
Specifications
Specifications UPS24-100L-120
| Battery Voltage (DC) | 12V or 24V |
| Input Voltage (AC) | 100/240VAC, 47-63Hz, 2A Max. |
| Max Output Power | 120W |
| Suggested Maximum Load | 100W |
| Maximum Instantaneous Load | 20A 500msec |
| Battery Type | LFP (LiFePO4) Lithium without heater |
| Battery Life | 10+ Years |
| Controller Type | 20A PWM Solar Controller with Status Display and Load on/off switch Max Solar Panel Size 12V 240W , 24V 480W |
| Controller Display Status | Battery Voltage, Charging Current, Load Current, Temperature |
| Overcharge Protection | 14.4V / 28.8V |
| Over-discharge protection | 11V / 22V |
| Over-discharge recovery voltage | 12.3V / 24.6V |
| Controller Self Consumption | <0.3W |
| Enclosure Type | SM Aluminum |
| Enclosure Size | 12 x 14 x 15" (305 x 356 x 381mm) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| System Weight (without batteries) | 21lb (9.5kg) |
| Battery Weight (each) | 13.5lb (6kg) |
| Warranty | 3 Years |
