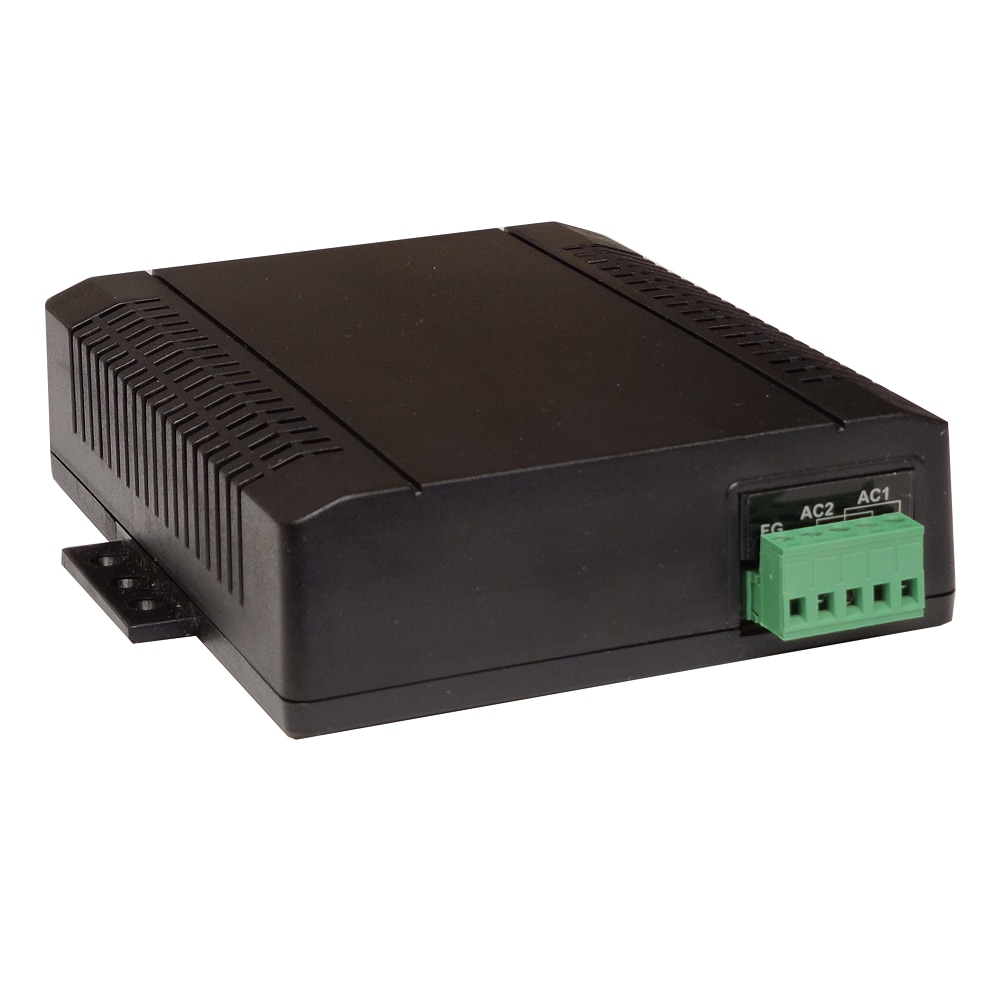

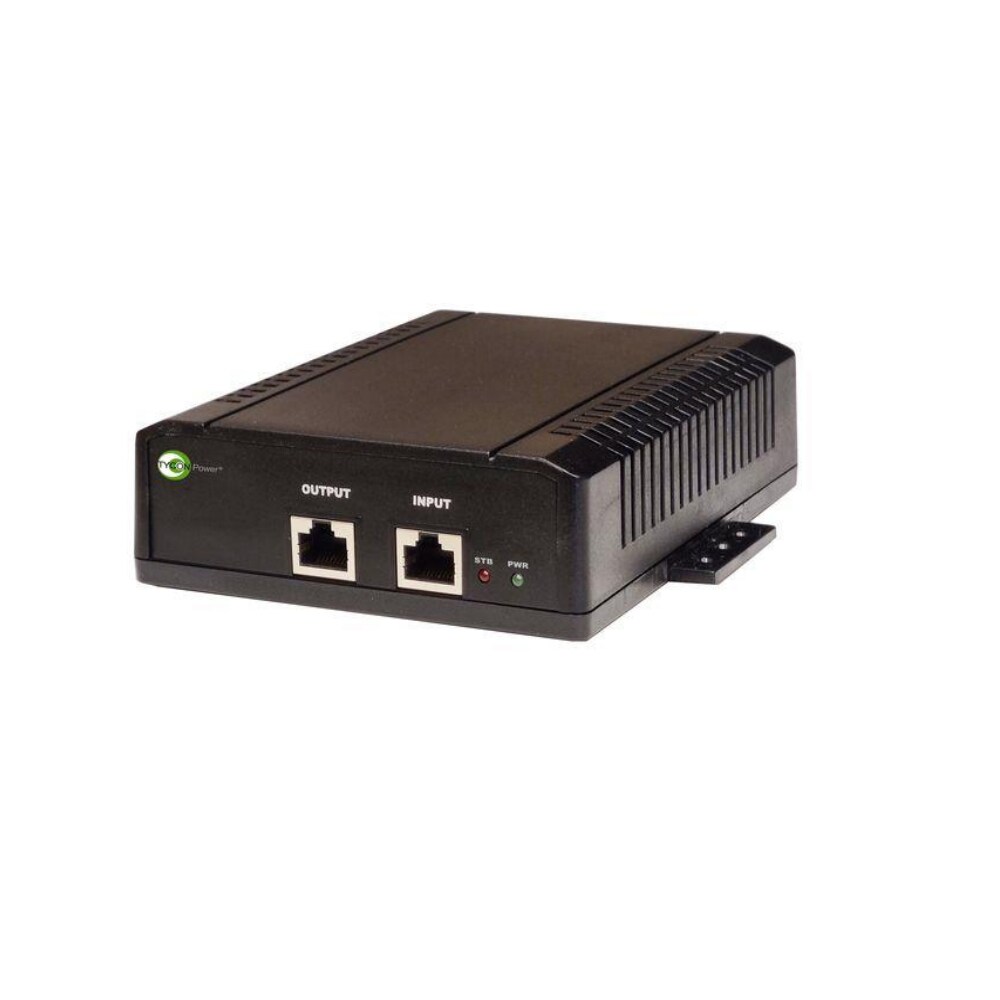

5Gigabit,22-35VAC or VDC IN, 802.3bt 56VDC 90W OUT, AC/DC to DC Conv and 802.3bt PoE inserter. Din Rail or Wall Mount, -40 to +70C
- SKU: TP-DCDC-A2456GD-BT
$227.95 $239.95
Product Information
5Gigabit,22-35VAC or VDC IN, 802.3bt 56VDC 90W OUT, AC/DC to DC Conv and 802.3bt PoE inserter. Din Rail or Wall Mount, -40 to +70C
Specifications
Specifications
| Input Voltage | 22 to 35VAC 50/60hz or 22 to 35VDC |
| Input Current | 4.42A @ 24VAC IN (Full Load) 4.40A @ 24VDC IN (Full Load) |
| Output Voltage | IEEE802.3bt 56VDC ; Load Reg = 5%, Line Reg = 1% |
| Output Current / Max Watts | 1.6A / 90W |
| Ripple & Noise | 1% |
| Efficiency | >80% 22-35V Input |
| Protections | Short Circuit, Reverse Voltage |
| Over Current Protection | 802.3bt Limits ; Auto Recover |
| Low Voltage Detect (LVD) | Device with stop drawing all current when input voltage drops below 33.2VDC |
| Misc Protections | Short Circuit, Reverse Voltage |
| Data PassThrough | 10/100/1000/5000Mbps ; Gigabit |
| Data Protection | Pin to Pin (1-2, 3-6, 4-5, 7-8) Clamp Voltage: 3.3V ESD, IEC61000-4-2: +/- 30KV contact and air EFT, IEC61000-4-4: 40A (5/50us) Lightning, IEC61000-4-5: 15A (8/20us) |
| MTBF | 135,326 Hrs |
| Safety Standards | TUV EN62368-1 |
| EMC Standards | FCC Class B ; EN55032 Class B |
| Connections | Removable Wire Terminal |
| Wire Size | 12AWG Max |
| LED Function | Green Power LED = Valid 802.3bt Detection Red STB LED = Input Power OK |
| Mounting | Wall Mount or DIN Rail (Adapters Included) |
| Operating Temperature | -40C to +70C (-40F to 158F) |
| Humidity (RH) | 5% - 90% Non-Condensing |

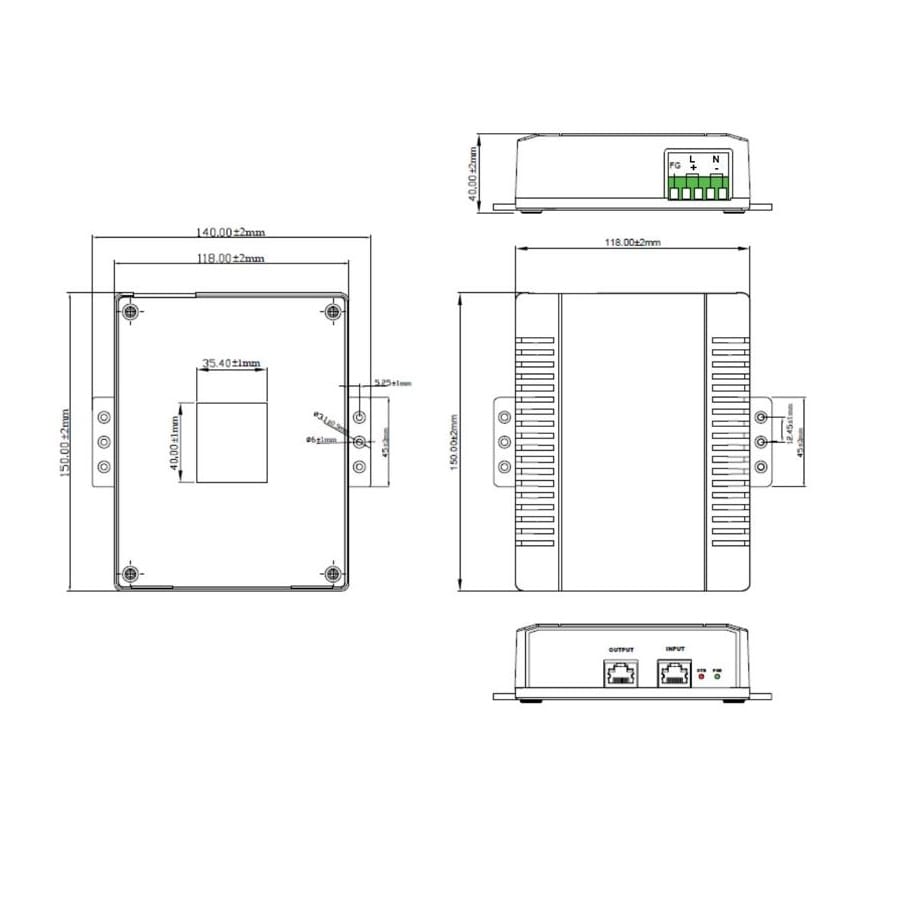

| Dimensions (LxWxH) | 140 x 150 x 40 mm (5.5” x 5.9” x 1.6”) |
| Weight | 0.66kg (1.45lb) |
| Warranty | 3 Years |
