UPSPro, 60W 430VA Polycarbonate Enclosure, 36Ah Batt, 24V PoE, Solar Ready. 24hr backup @ 9W
- SKU: UPS-PL2424-36
$455.95 $479.95
Product Information
UPSPro, 60W 430VA Polycarbonate Enclosure, 36Ah Batt, 24V PoE, Solar Ready. 24hr backup @ 9W
Specifications
Specifications UPS-PL2424-36
| POE Output Voltage Available (DC) | 24V |
| Available Capacities (Amp Hours) | 17Ah |
| Total Output Power | 60W |
| Maximum POE Input Voltage | 57V |
| Battery Voltage (DC) | 12V |
| Battery Type | Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM) |
| Battery Life | 5 Years |

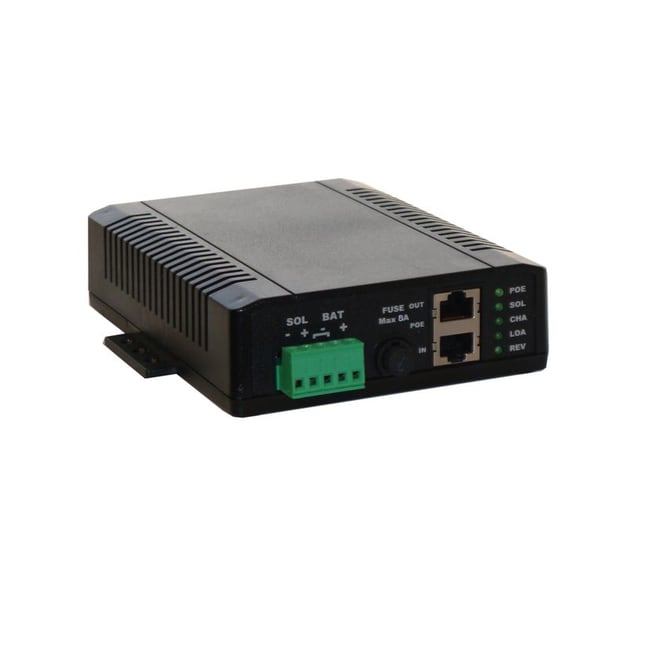

| Controller Type | Dual Input Solar/POE, PWM, 12V 8A |
| Max Solar Panel Size 135W | |
| Overcharge Protection | 28.6V |
| Over-discharge protection | 22.0V |
| Over-discharge recovery voltage | 24.0V |
| Controller Self Consumption | <0.5W |
| Charging POE Power Supply | 120/220VAC In ; 48VDC 60W Out |

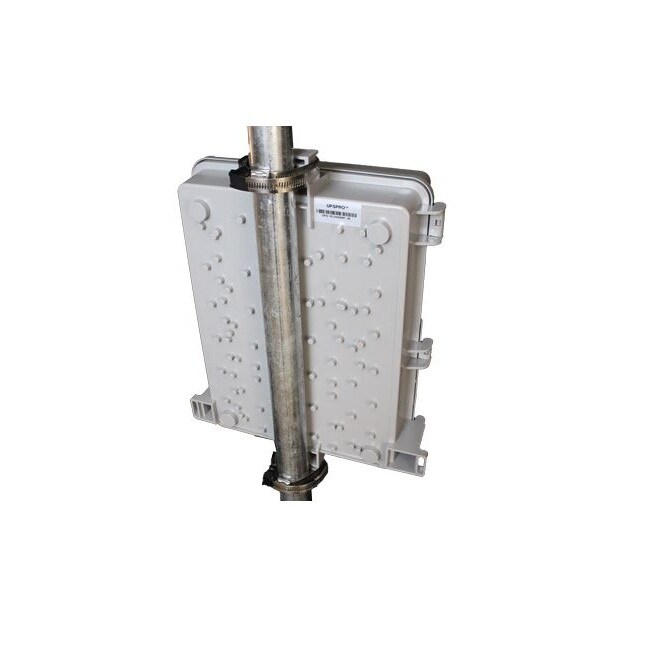

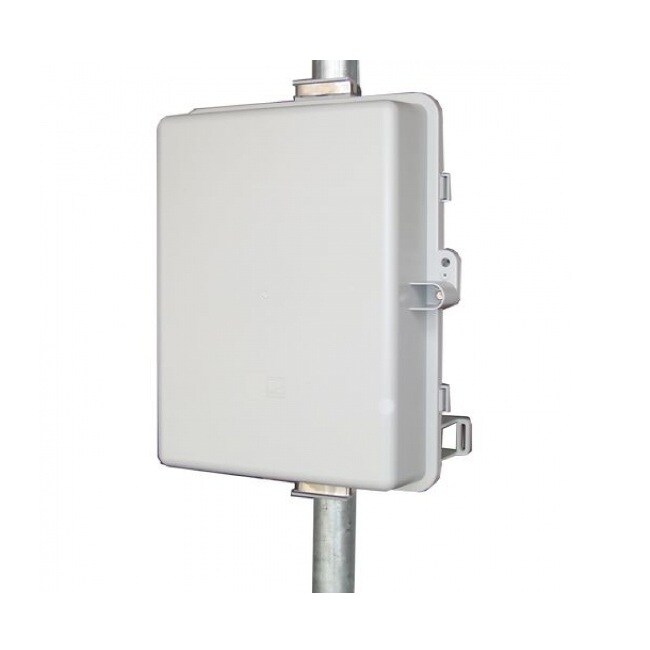

| Enclosure Type | Polycarbonate |
| Enclosure External Size | 17.5 x 12.5 x 6” |
| (445 x 318 x 152mm) | |
| Enclosure Internal Size | 14 x 10 x 5” |
| (356 x 254 x 127mm) | |

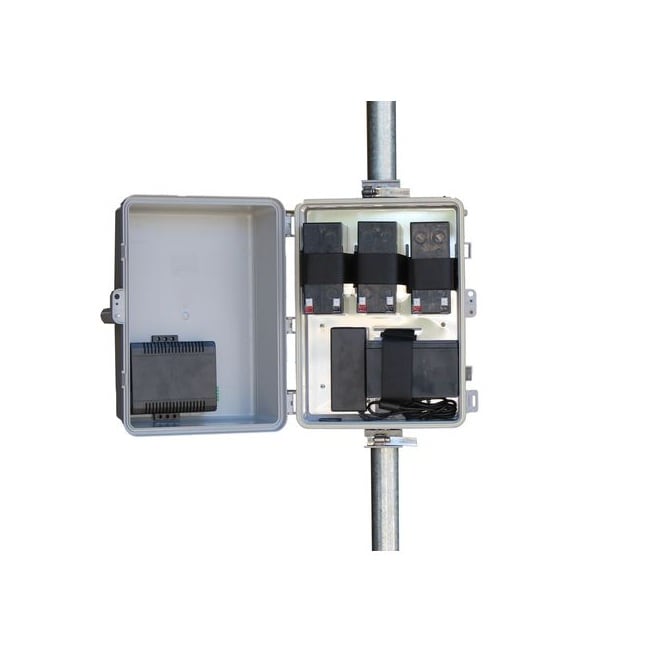

| Space available for Customer Electronics | 3 x 5 x 3” |
| (76 x 127 x 76mm) | |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| System Weight (without batteries) | 4lb (1.8kg) |
| Battery Weight (each) | 5.5lb (2.5kg) |
| Warranty | 3 Years |
