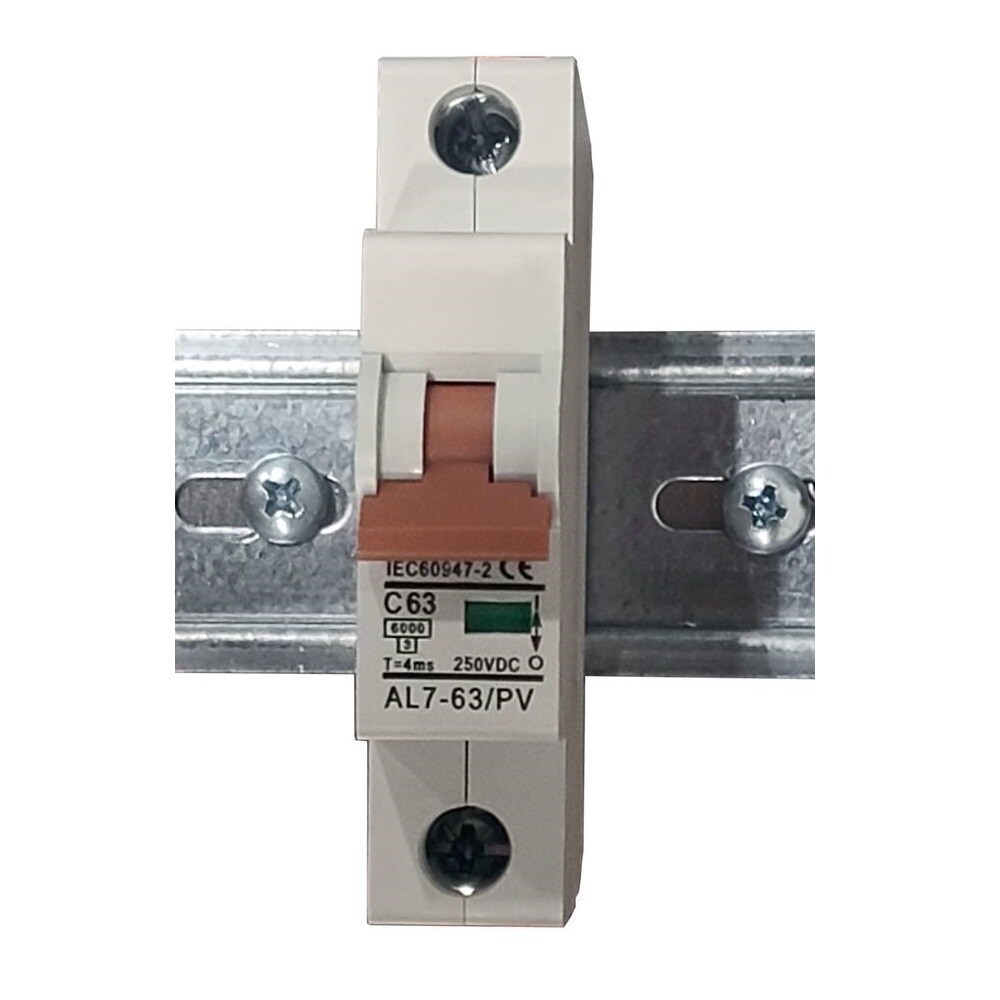

Tycon Power Circuit Breaker, 63A 250VDC, DIN Mount
- SKU: TPDIN-CB-63A
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
Tycon Power Circuit Breaker, 63A 250VDC, DIN Mount
The Tycon Solar® TPDIN-CB-63A is a high-quality DIN Rail mount miniature circuit breaker specifically designed for DC systems, making it ideal for remote power and solar systems. With its 250V and 63A trip point, this circuit breaker provides reliable and efficient protection for various applications.
Versatile and Reliable Protection
Wide Range of Applications: The TPDIN-CB-63A offers versatile protection solutions, making it suitable for use in battery and solar panel disconnect switches, as well as providing overload protection. Its robust design ensures consistent performance and durability, allowing it to withstand the demands of different DC system environments.
Robust Construction and Easy Installation
Durable and High-Quality Design: Constructed with high-quality materials, the TPDIN-CB-63A guarantees long-lasting performance and reliability. The DIN Rail mount design facilitates easy and secure installation, ensuring a stable connection within the system.
Enhanced Safety and Performance
Reliable Trip Point: With its 250V and 63A trip point, the TPDIN-CB-63A offers precise and dependable protection against overloads and short circuits. This feature enhances the overall safety and performance of the DC systems, safeguarding critical components and ensuring uninterrupted operation.
Features:
- DC DIN Mount Circuit Breaker
- Rated for up to 250VDC @ 100A
- Mechanical life >10,000 Cycles
Applications:
- Remote Power Systems
- Solar Power Applications
Specifications
Specifications TPDIN-CB-63A
| Rated Trip Current | 63A |
| Trip Type | Thermal Magnetic |
| Rated Voltage @ Current | 250 VDC @ 100A |
| Insulation Voltage | 1000V |
| Impulse Voltage | 6kV |
| Short Circuit Trip Current | 10kA Max |
| Mechanical Life | >10,000 Cycles |
| Electrical Life | >1500 Break Cycles |
| Terminal Wire Size (Max) | 5mm Diameter, 4 AWG |
| Fastening Torque | 2.0 ~ 3.5 Nm (1.5 ~ 2.5 ft lb) |
| Environmental Protection | IP40 |
| Relative Humidity | <95% |
| Vibration | IEC60069-2-6 |
| Shock | IEC60068-2-27 |
| Certifications | CE, RoHS |
| Operating Temp | -30°C to 70°C (-22°F to 158°F) |
| Max Storage Temperature | 85°C (185°F) |
| Dimensions (L x H x W) | 87.5 x 81 x 18mm (3.4 x 3.2 x 0.7”) |
| Weight | 120g (0.26lb ) |
| Warranty | 3 years |
