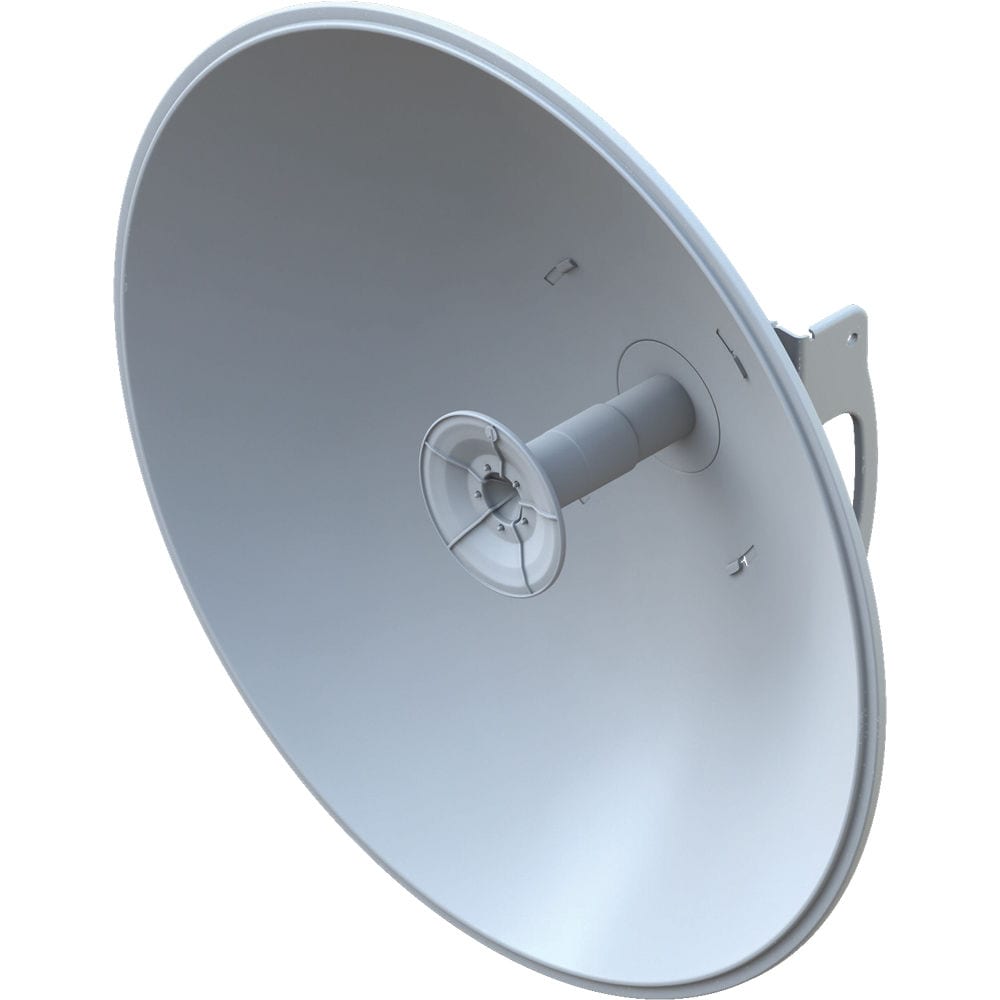

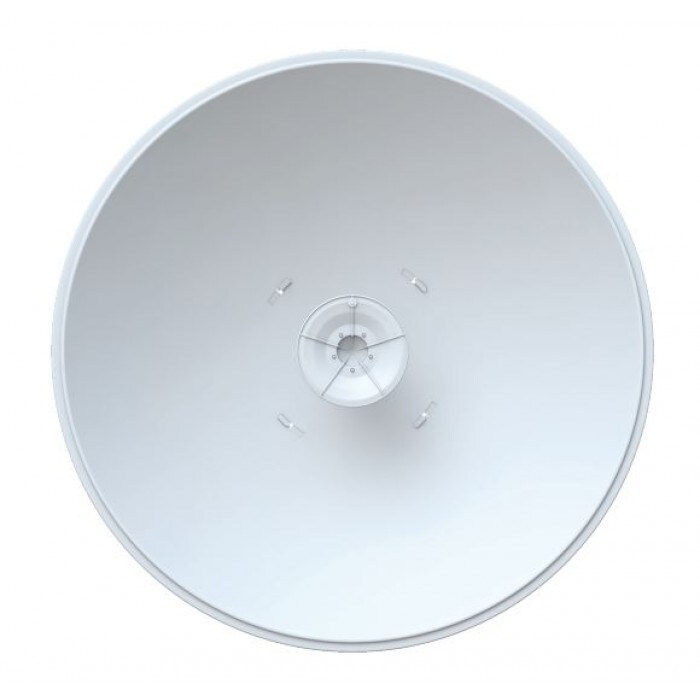

Ubiquiti airFiber X 5 GHz, 30 dBi, Slant 45 Parabolic Dish Antenna (2 Pack)
- SKU: AF-5G30-S45-2PACK
Product Information
airFiber X 5 GHz, 30 dBi, Slant 45 Parabolic Dish Antenna (2 Pack)
The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.

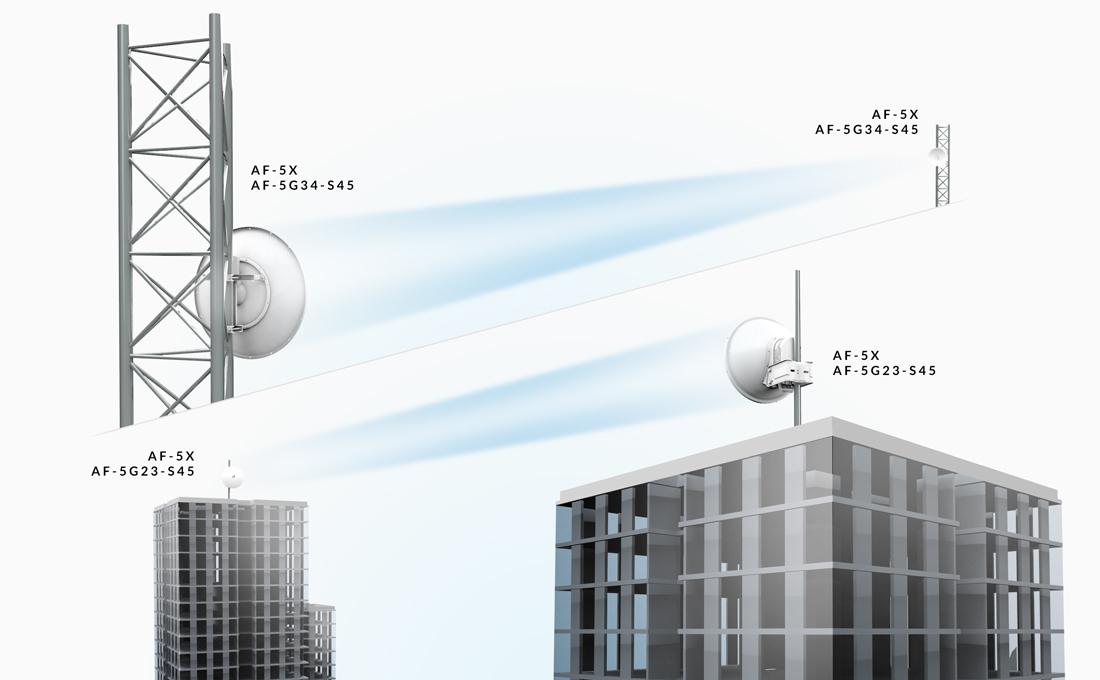

Compact Footprint for Deployment Flexibility
The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.
Plug and Play Integration
The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.

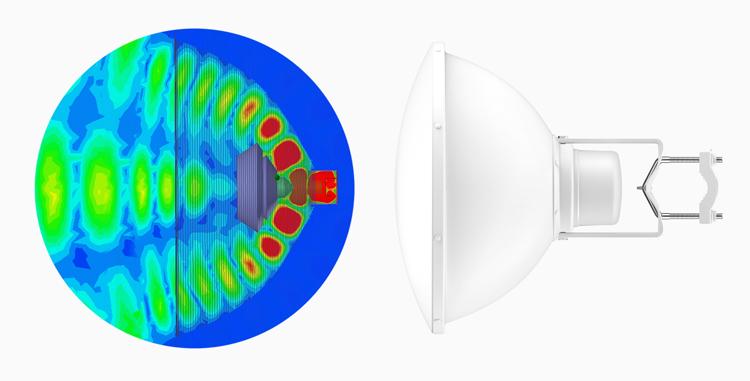

Advanced RF Isolation Design
The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high‑capacity, multipoint networks.

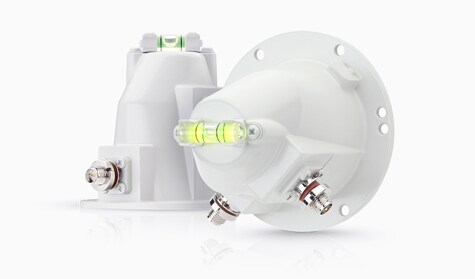

airFiber X Conversion Kit
The 5 GHz RocketDish to airFiber® Antenna Conversion Kit, model AF-5G-OMT-S45, converts the RocketDish RD-5G30 or RD-5G34 antenna for use with the airFiber AF-5X radio.
Features:
- 2x2 dual-polarity performance
- Robust mechanical design for outdoor application use
- Secure pole-mounting
- Compatible with airFiber X radios and Wave MLO5
Specifications
Specifications AF-5G30-S45-2PACK
| Dimensions | 650 x 650 x 386 mm (25.6 x 25.6 x 15.2") |
| Weight | With Mount: 7.4 kg (16.31 lb) |
| Frequency Range | 5.1 - 5.9 GHz |
| Gain | 30 dBi |
| + 45° Beamwidth | 5.8° (3 dB) |
| - 45° Beamwidth | 5.8° (3 dB) |
| F/B Ratio | 30 dB |
| Max. VSWR | 1.6:1 |
| Wind Loading | 790 N @ 200 km/h (178 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| F/B Ratio | 30 dB |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included |
| NDAA Compliant | Yes |
