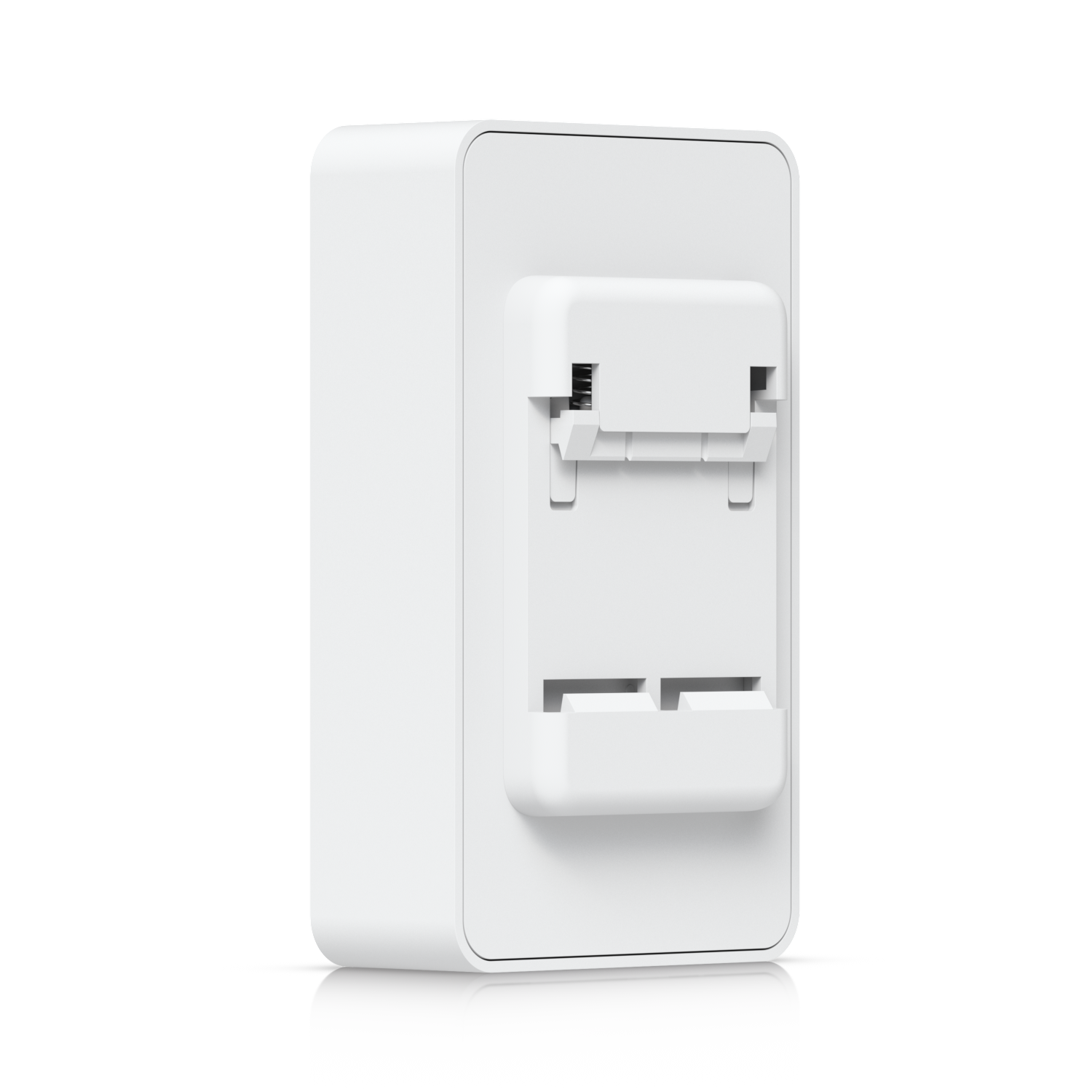

Ubiquiti Networks UA-Hub-Door-Mini
- SKU: UA-Hub-Door-Mini
$129.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

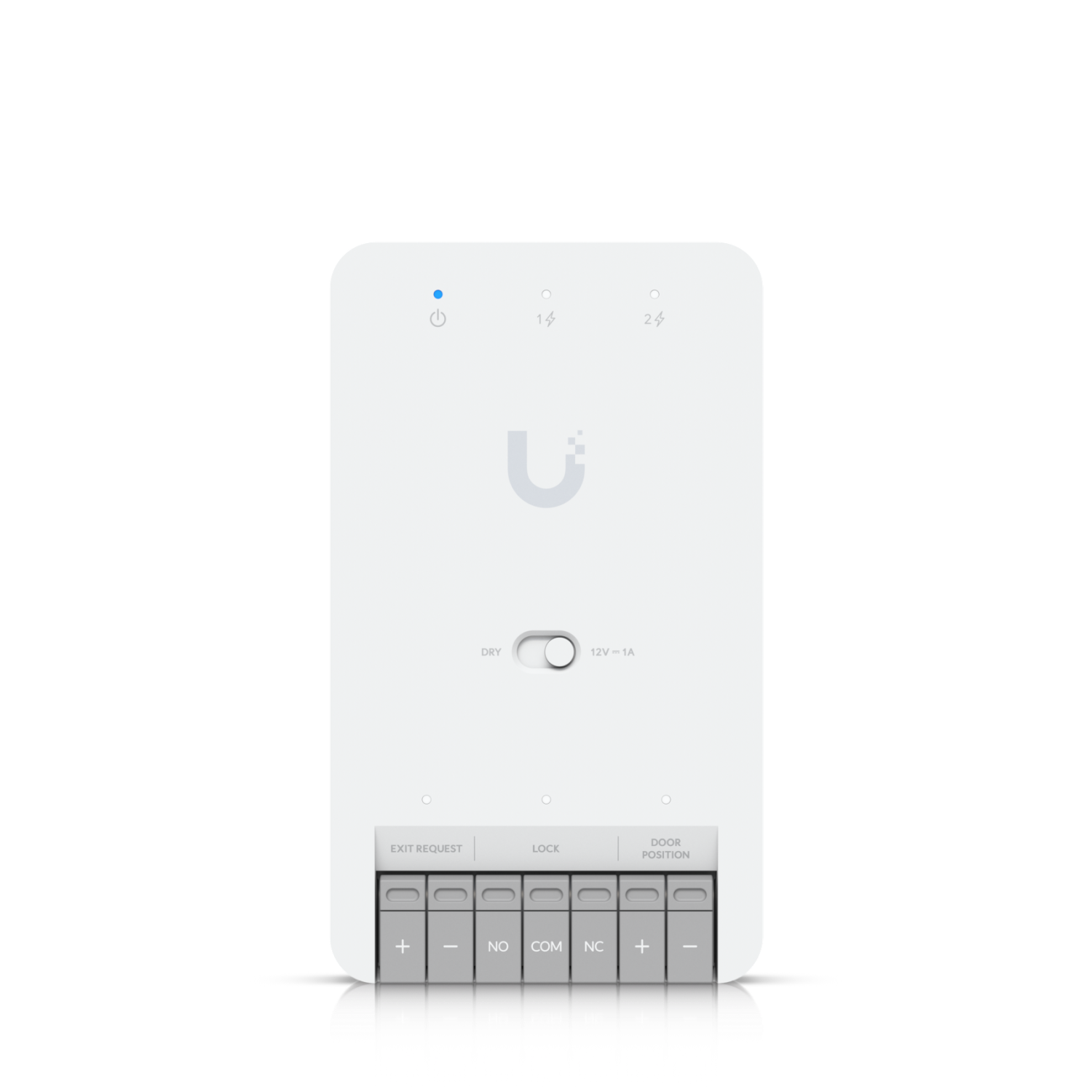

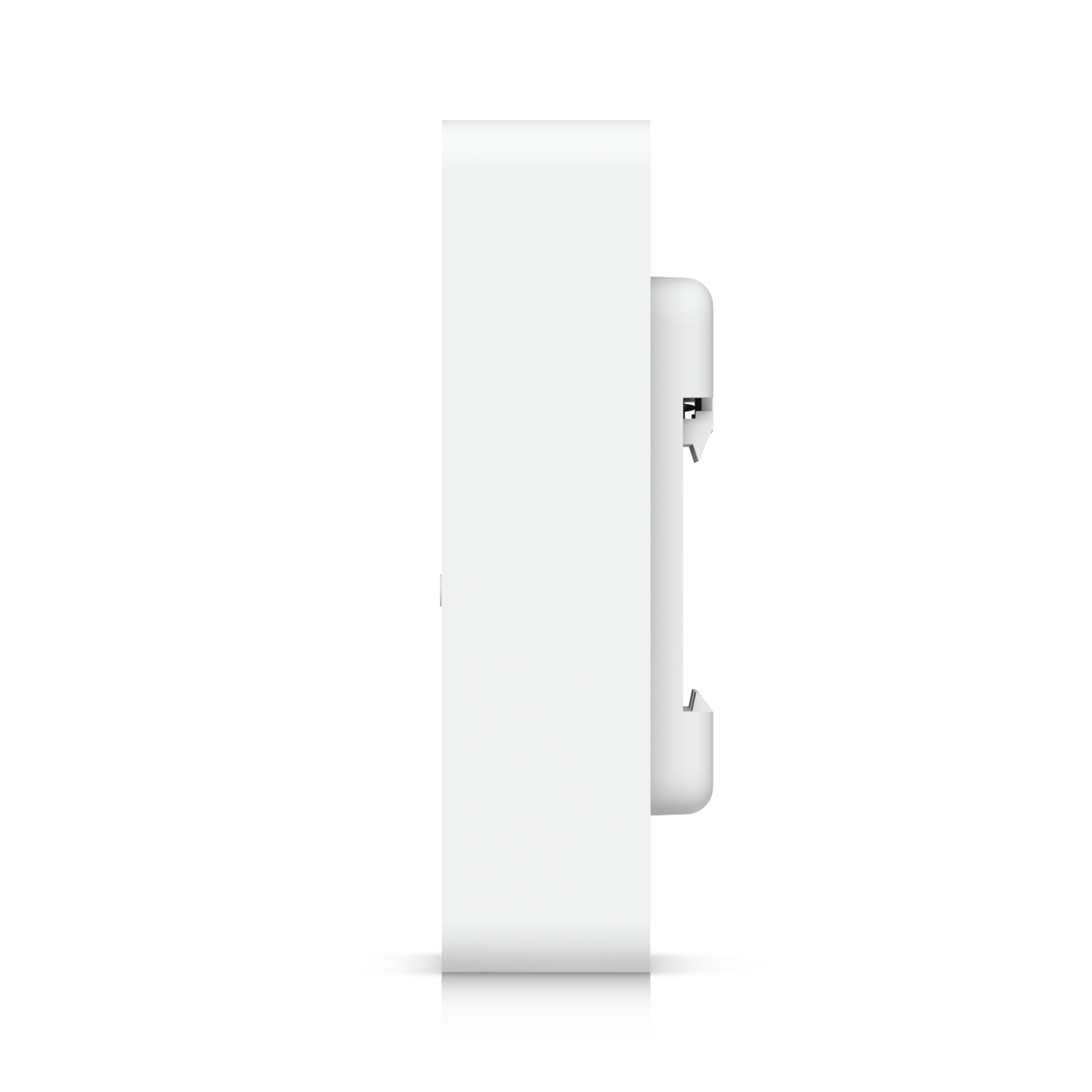

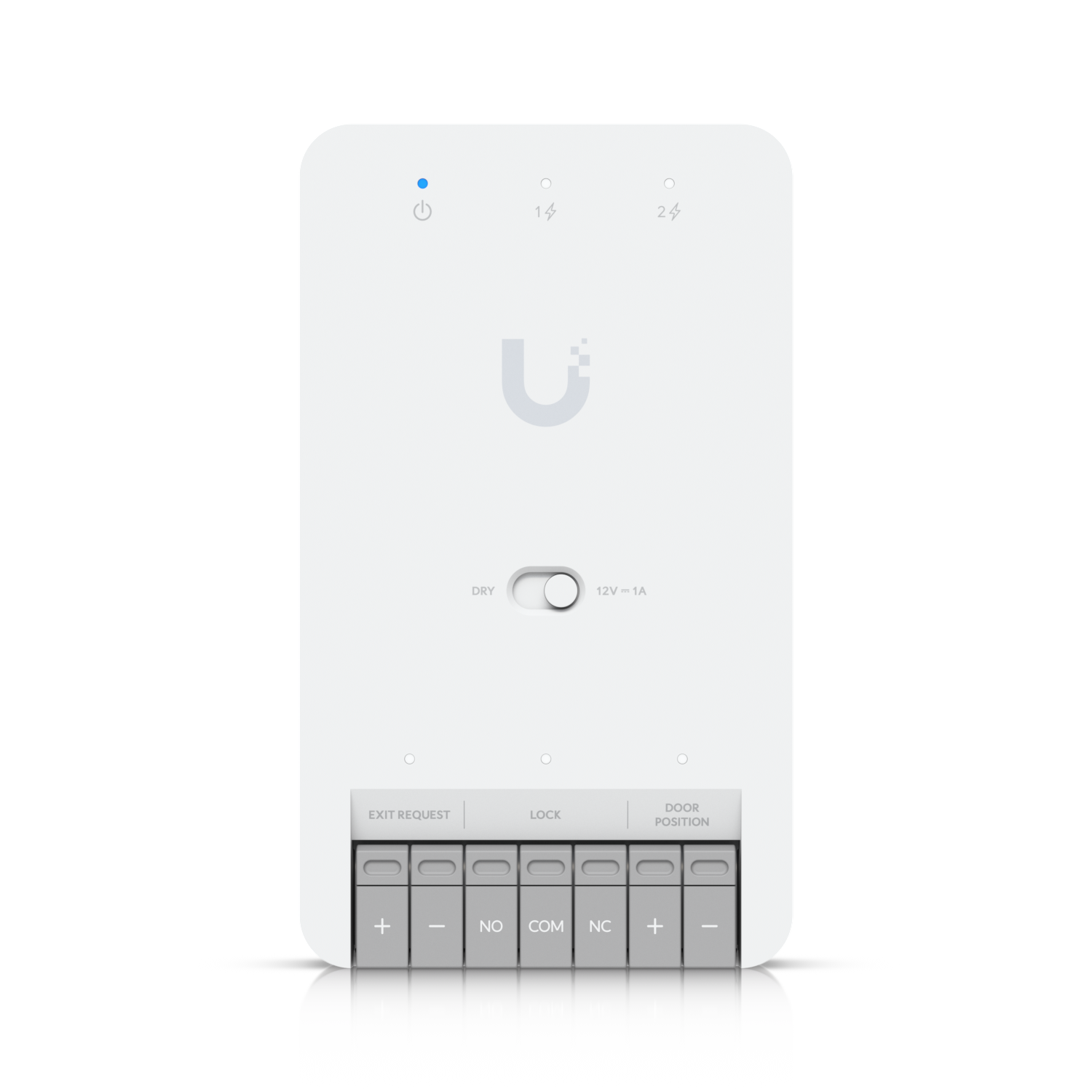

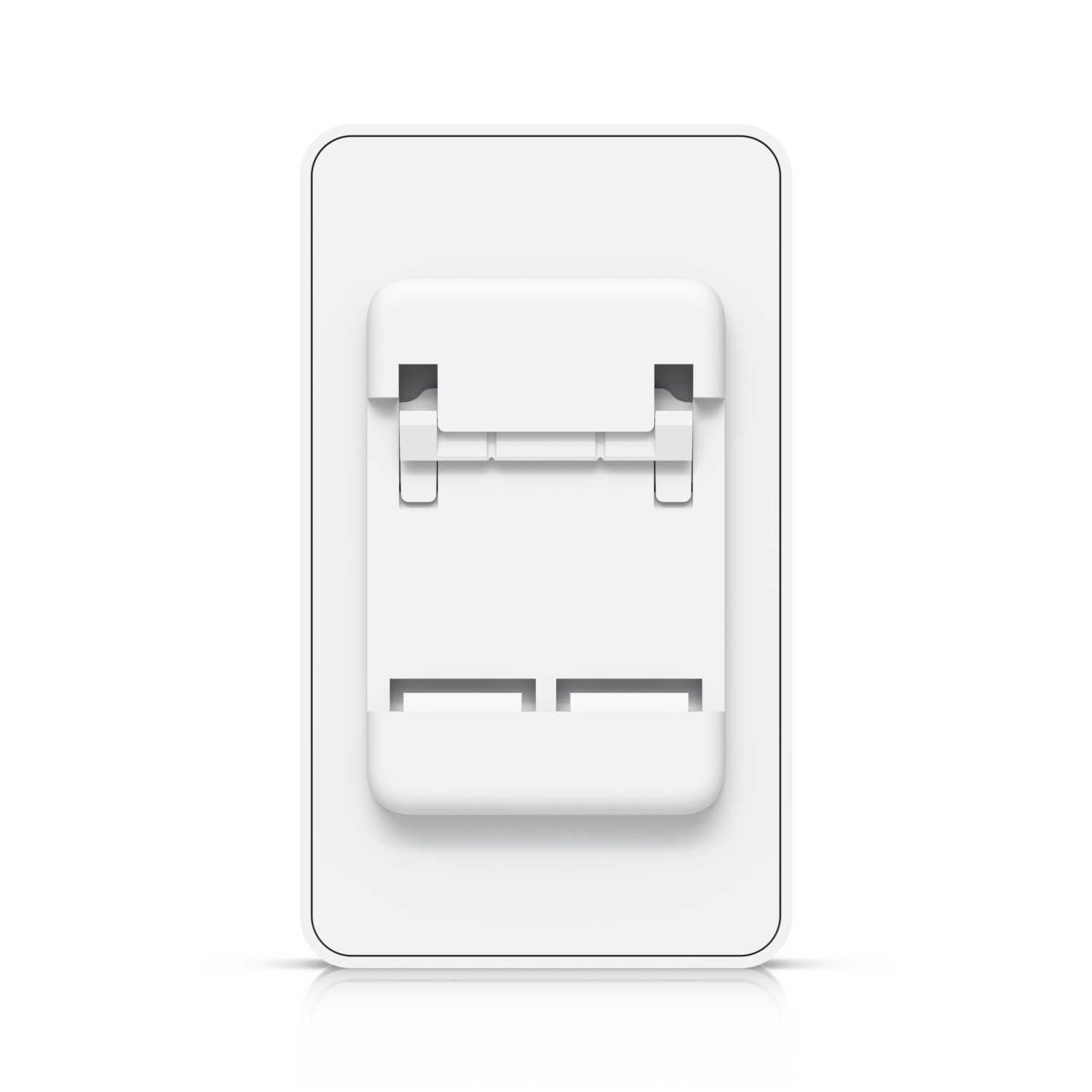

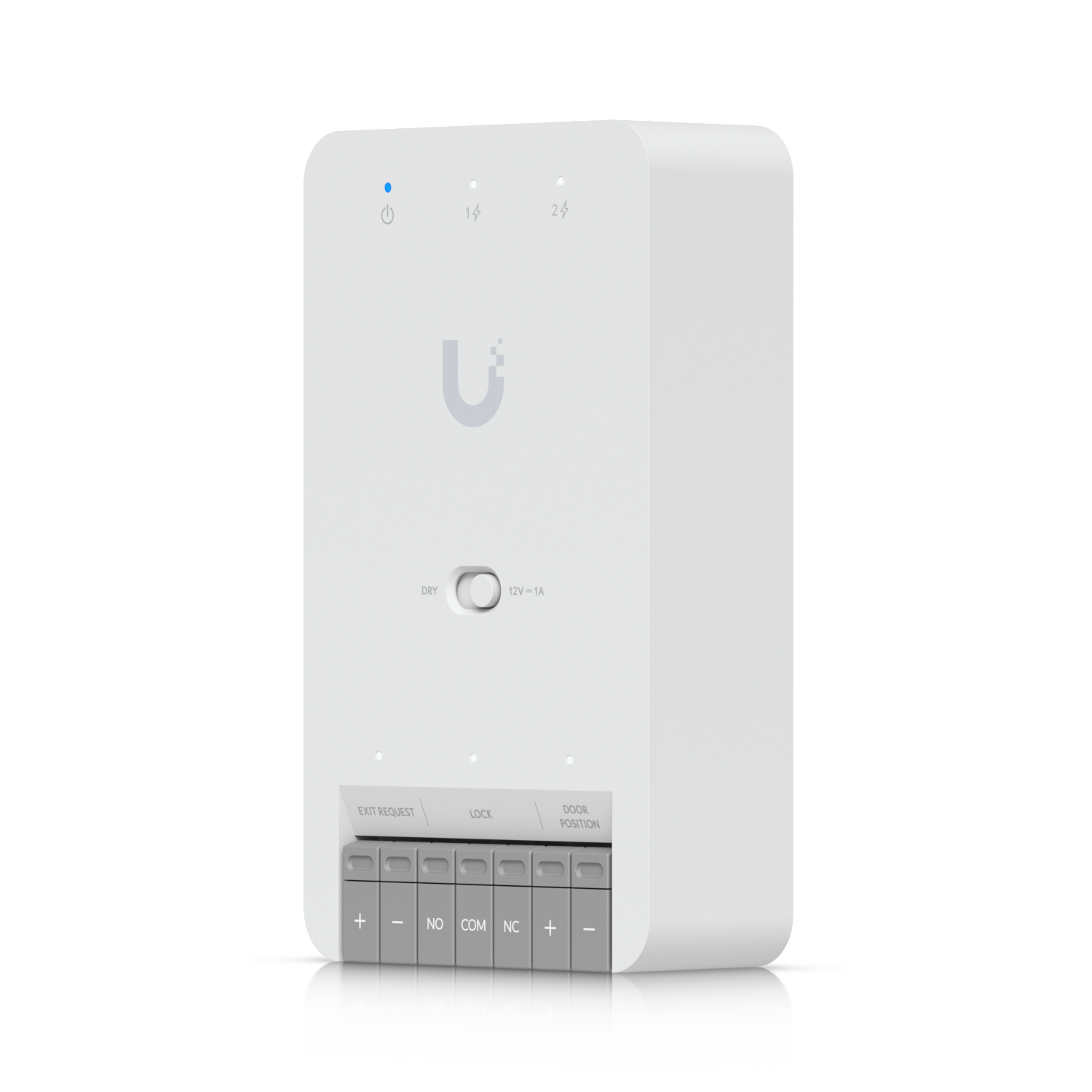

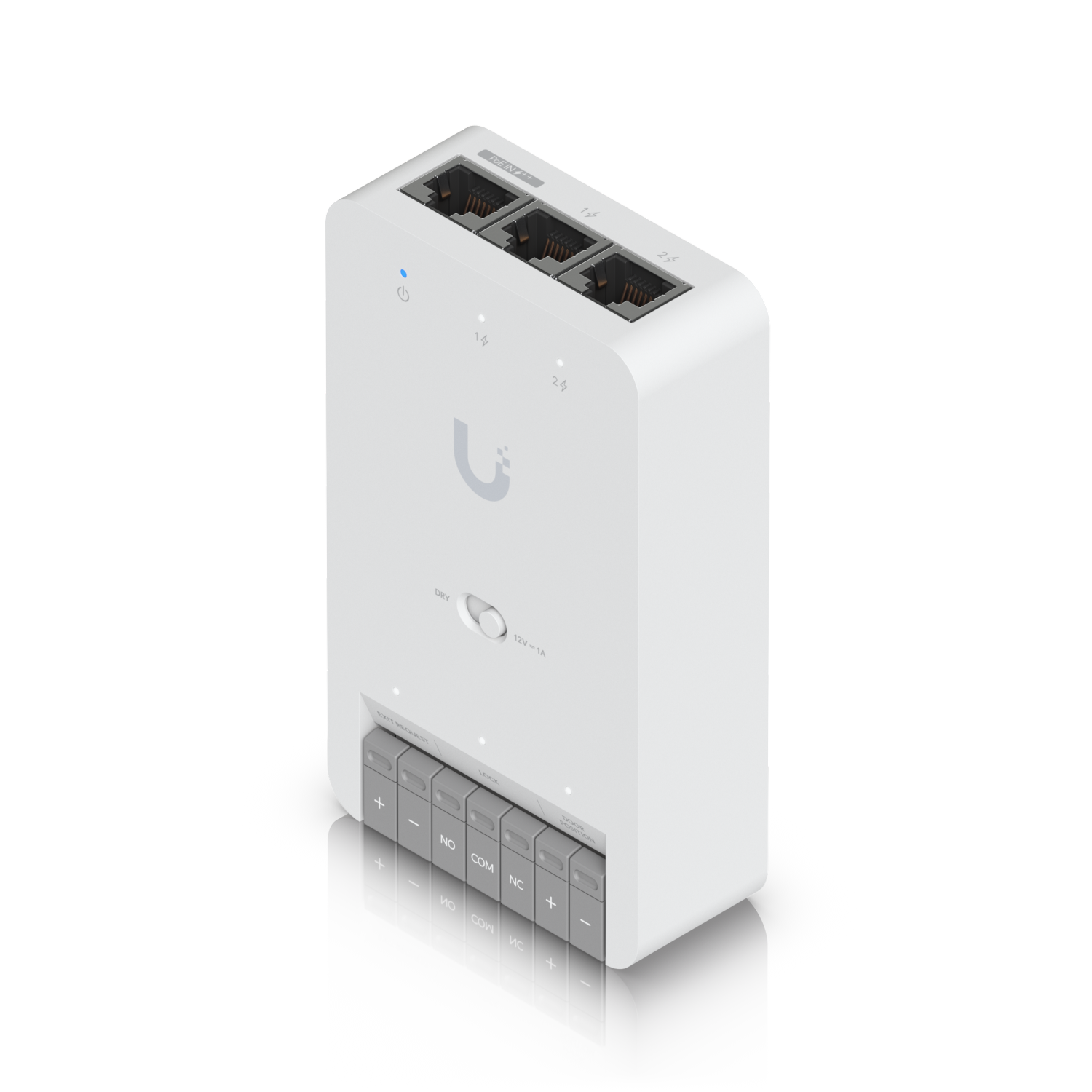

Ubiquiti Compact Access Control Door Hub Mini
Specifications
Specifications UA-Hub-Door-Mini
| Dimensions | 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1") | ||||
| Weight | 190 g (0.41 lb) | ||||
| Enclosure material | Polycarbonate, metal | ||||
| Hardware | |||||

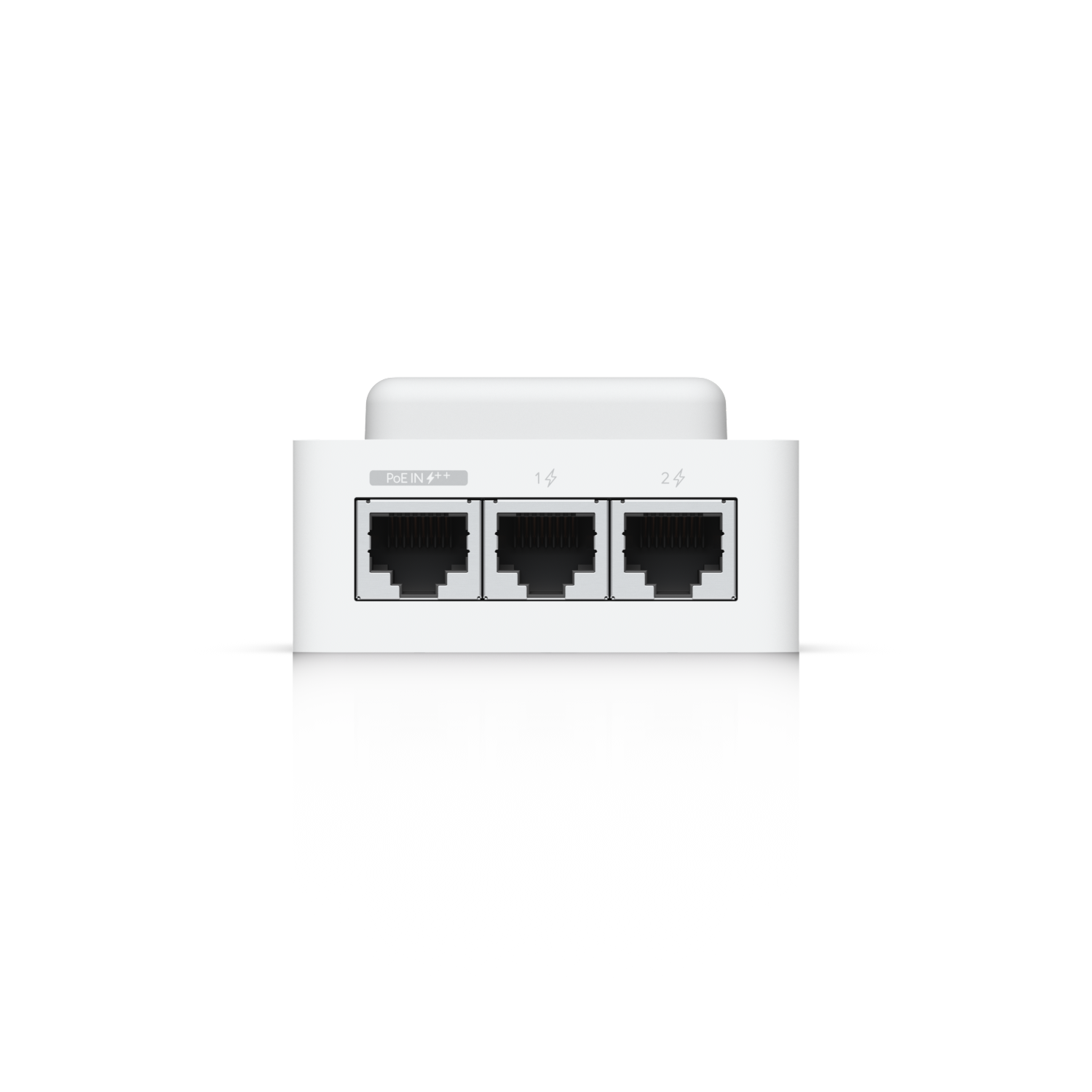

| Networking interface | (3) GbE RJ45 ports | ||||
| Power method | PoE++ | ||||
| Max. power consumption | Without PoE output: 19W With PoE output: 50W | ||||
| PoE input | 50V DC, 1A | ||||
| PoE output | (2) PoE ports, total 31W | ||||

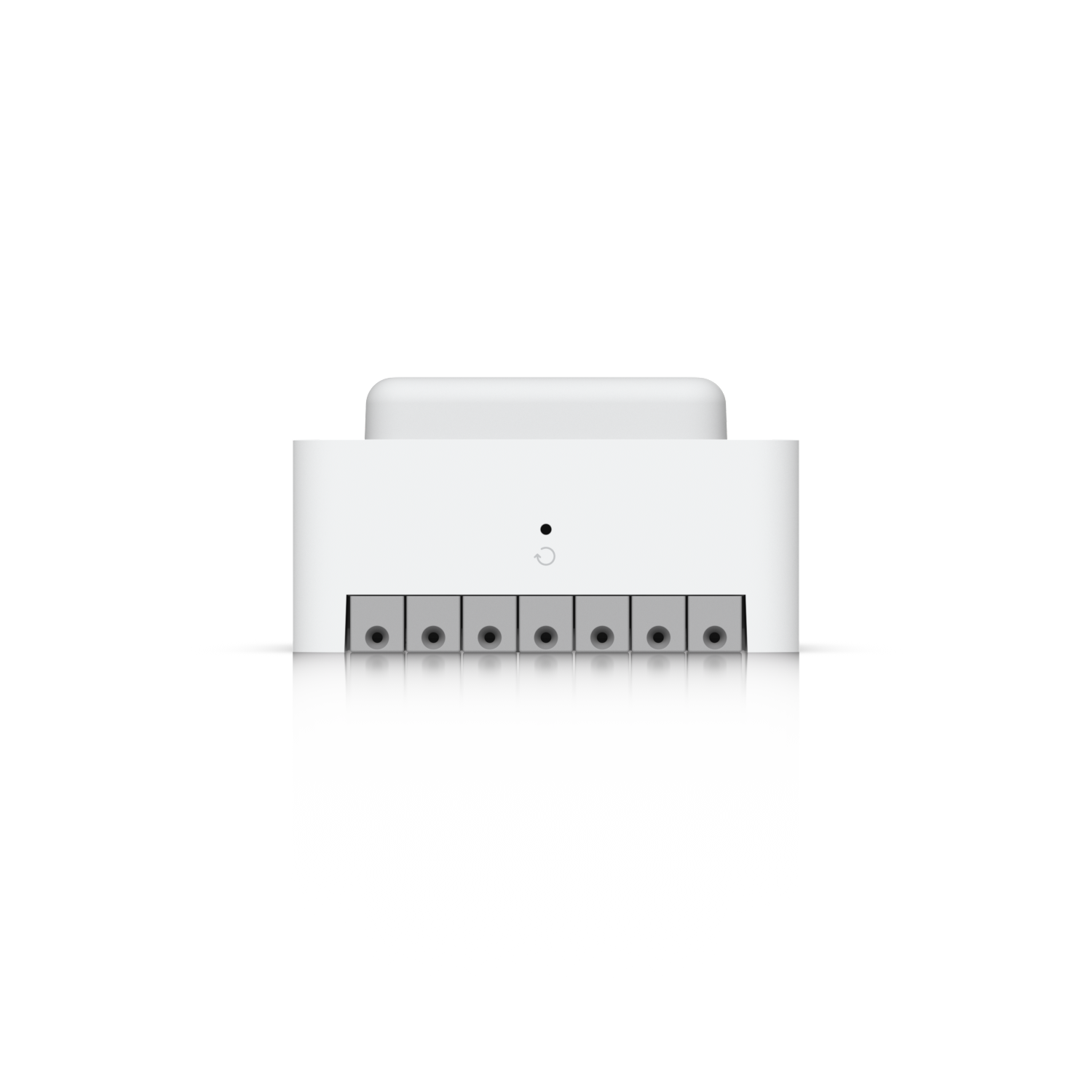

| Button | (1) Factory-reset (1) Dry/Wet switch | ||||
| Digital input | Request to exit/door position sensor | ||||
| Output relay | Dry: 30V DC, 1A Wet: 12V DC, 1A | ||||
| Recommend max. cable length | 18 AWG UACC-Cable-DoorLockRelay length | 20 AWG length | 22 AWG length | 24 AWG length | |
| UA-Lock-Electric (400mA) | 100 m (328 ft) | 66 m (217 ft) | 42 m (138 ft) | 25 m (82 ft) | |
| UA-Lock-Magnetic-270kg (800mA) | 46 m (151 ft) | 30 m (98 ft) | 20 m (66 ft) | 12 m (29 ft) | |
| UA-Lock-Magnetic-540kg (500mA) | 80 m (262 ft) | 51 m (167 ft) | 32 m (105 ft) | 20 m (66 ft) | |
| Other locks (1A) | 36 m (118 ft) | 24 m (79 ft) | 15 m (49 ft) | 9 m (30 ft) | |
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. | ||||
| Operating environment | Indoor use only | ||||
| Ambient operating temperature | -10 to 40° C (14 to 104° F) | ||||
| Ambient operating humidity | 5 to 90% noncondensing | ||||
| Certifications | CE, FCC, IC | ||||
| Document number, and issue date and/or revision level | UA-Hub-Door-Mini, V01 | ||||
| Software | |||||
| Management application | UniFi Access: Version 2.5.2 and later | ||||
| LEDs | |||||
| PoE in | System status | ||||
| PoE out | Wire status/activity | ||||
| Input/output relay | Wire status/activity | ||||
