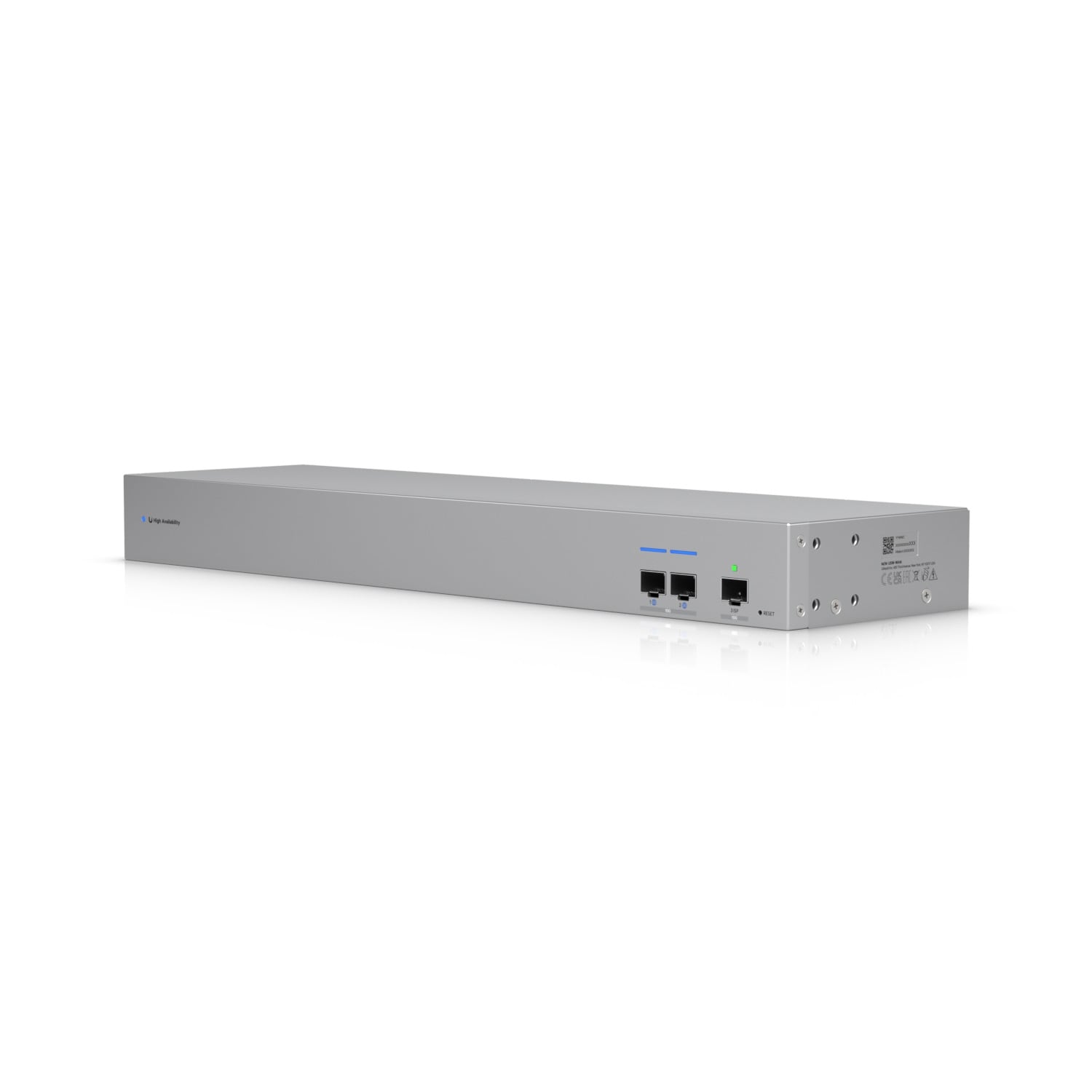

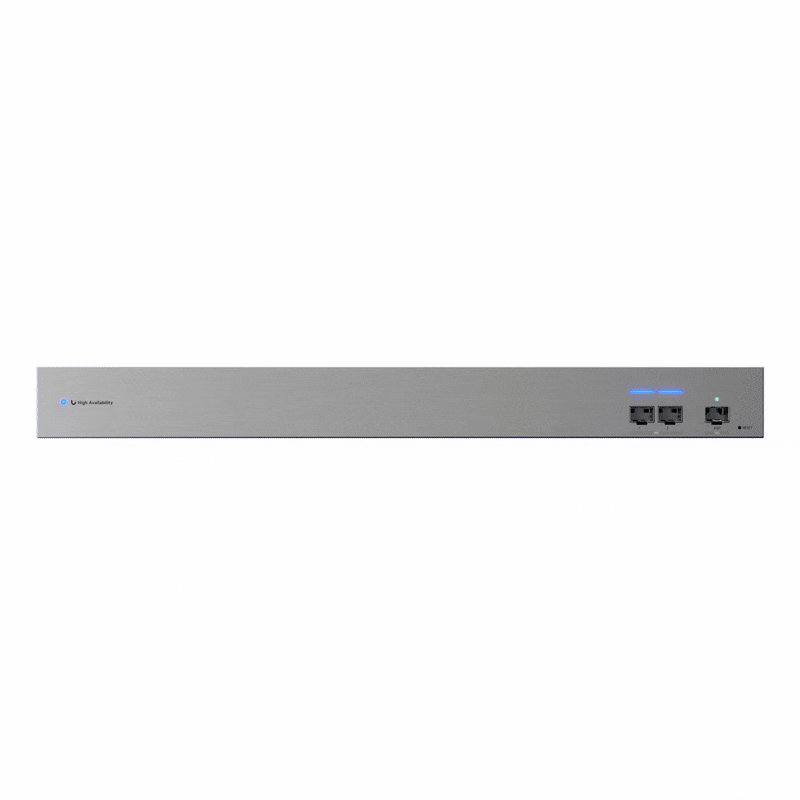

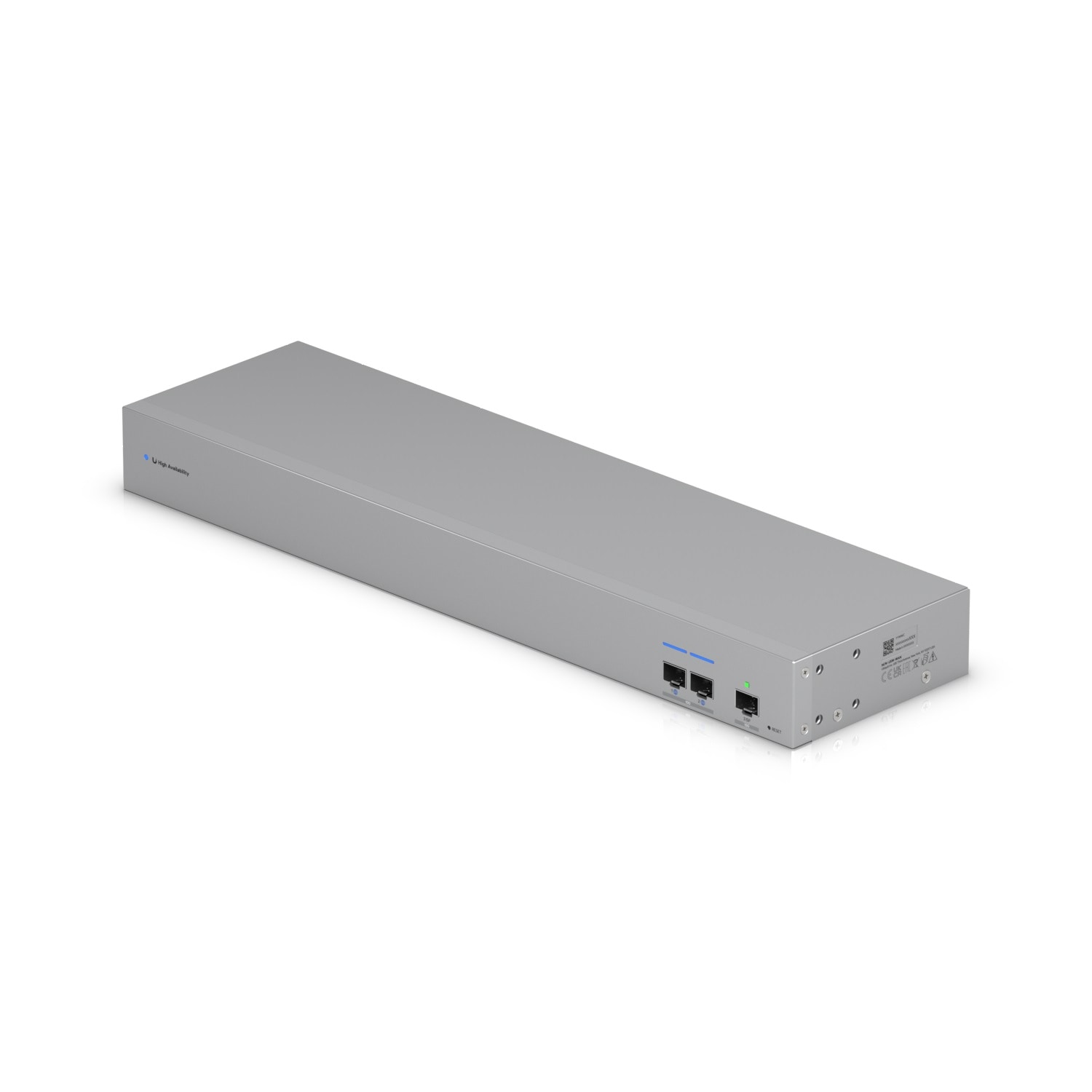

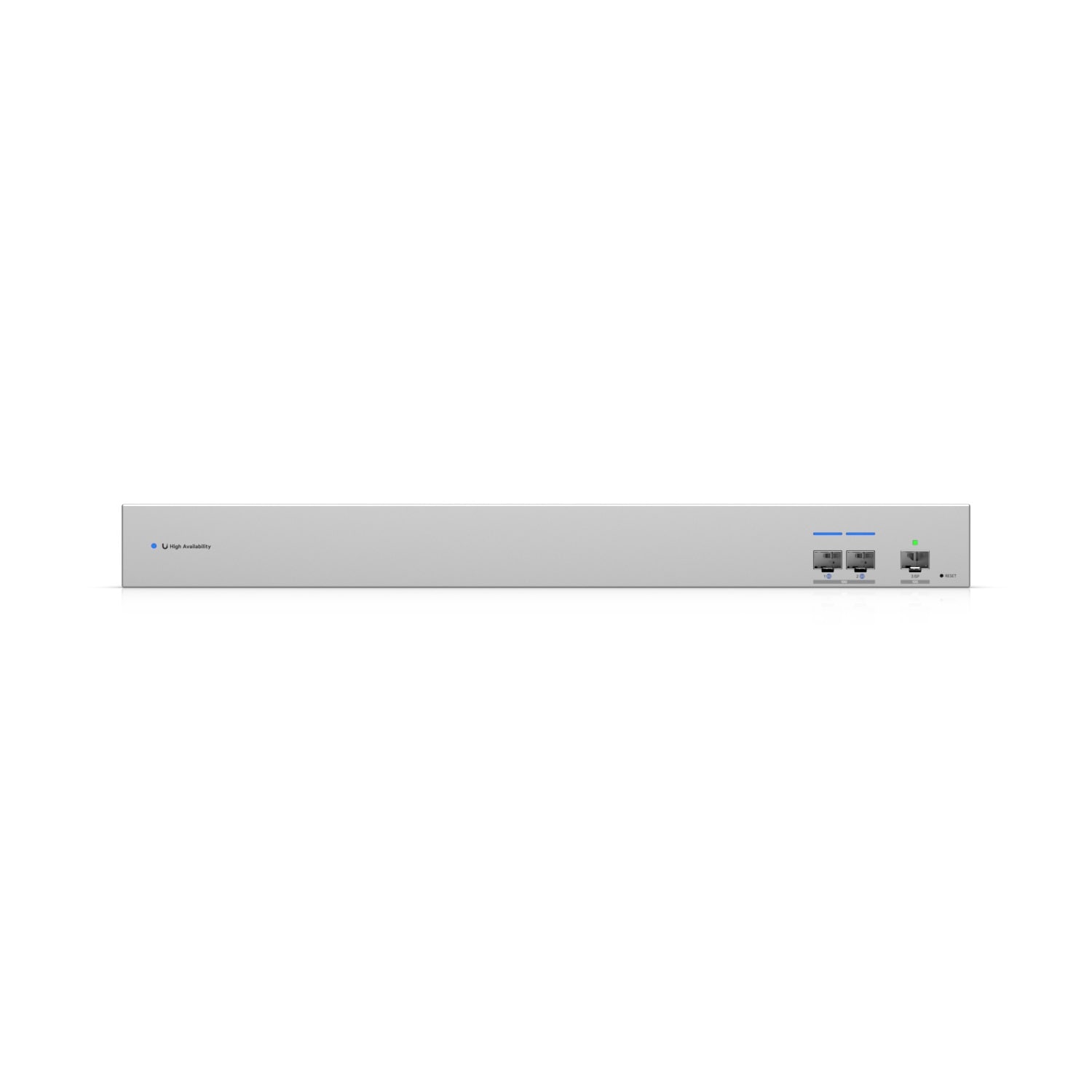

Ubiquiti Networks 10G SFP+ WAN Switch

(0)No Reviews yet
  • SKU: USW-WAN
$249.00
  • Manufacturer: Ubiquiti Networks
  • Installation Guide: Download

Out of Stock

 Open chat or call us for stock status

Product Information

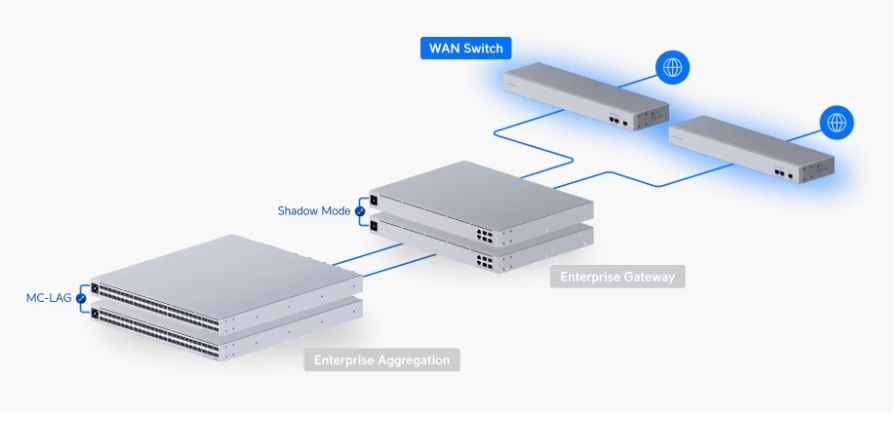

Ubiquiti 10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP

Features:

  • Combine with Shadow Mode High Availability to ensure uninterrupted connectivity
  • (1) 10G SFP+ ISP uplink and (2) 10G SFP+ downlink ports

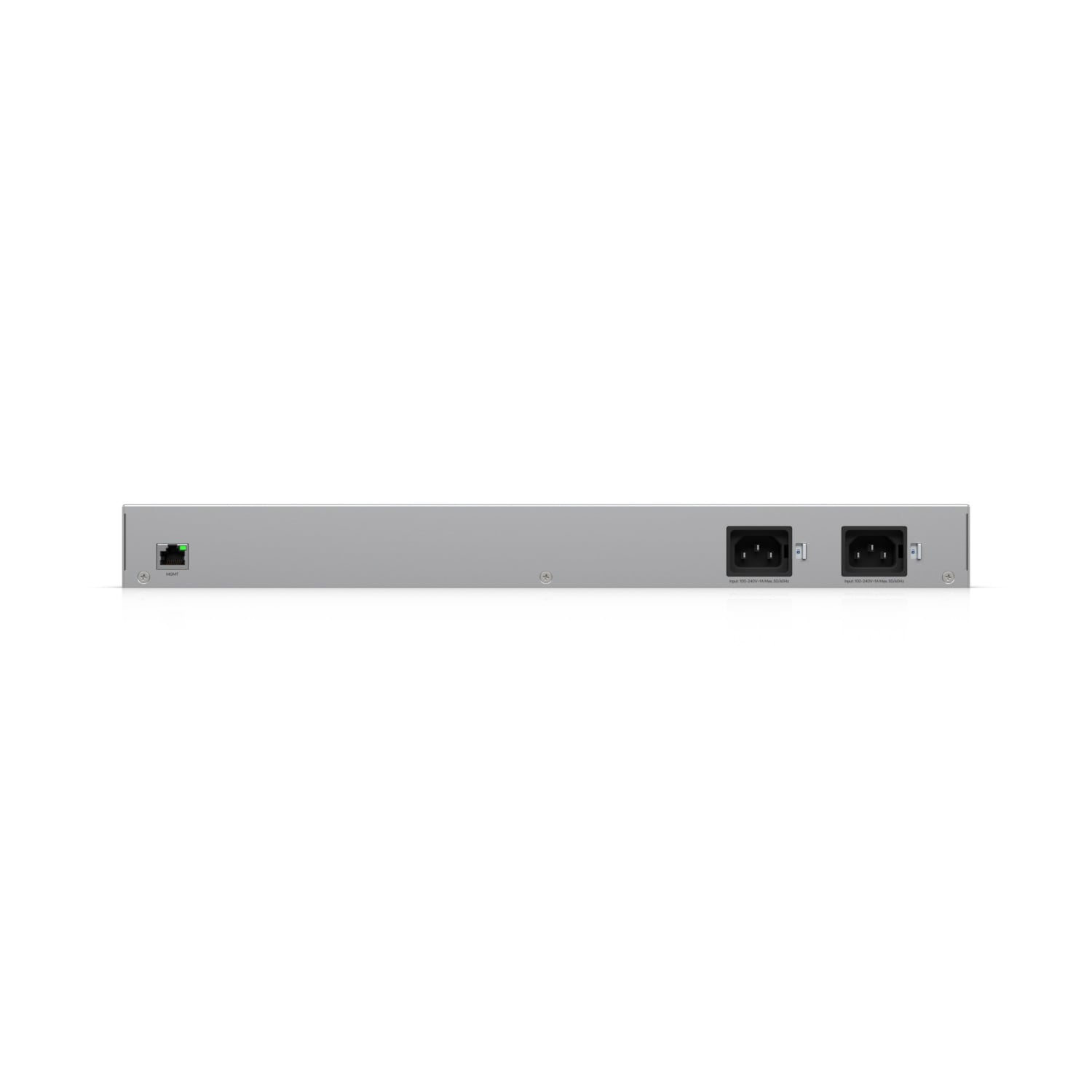

  • (2) AC inputs for power redundancy
  • (1) GbE port for management with UniFi Network

Specifications

Specifications USW-WAN

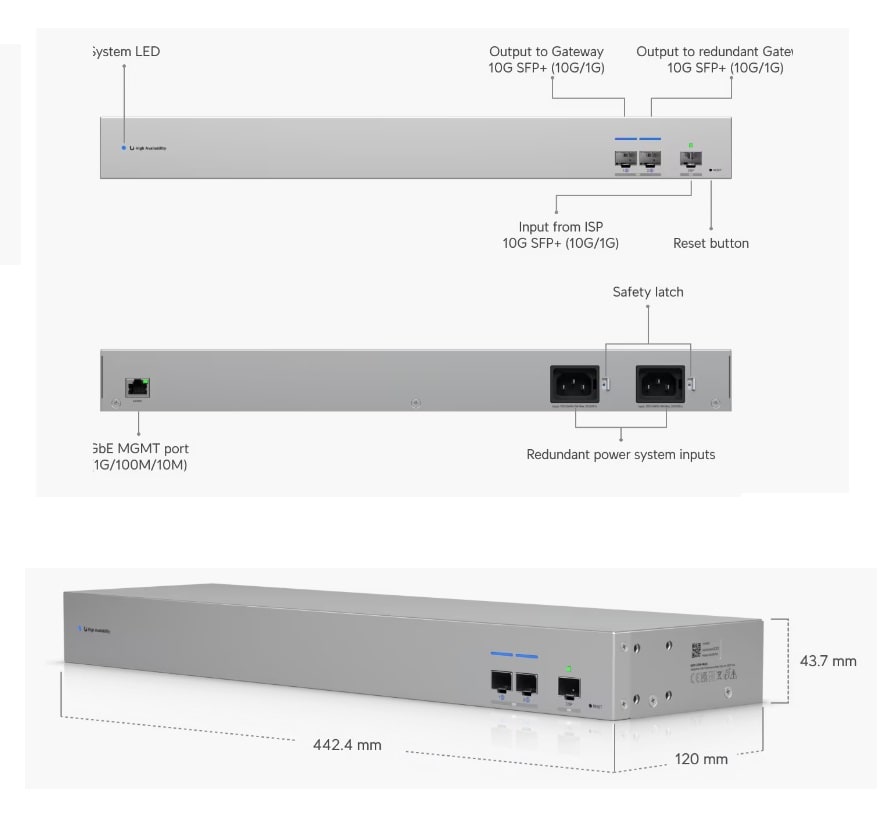

Dimensions442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7")
Port Layout
1 GbE RJ451
(1G/100M/10M)
10G SFP+3
(10G/1G)
Redundancy(2) AC inputs

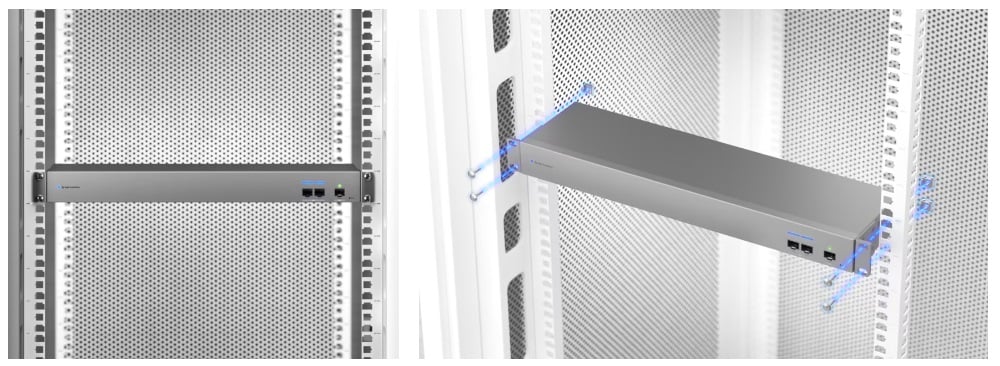

Form FactorRack mount (1U)
Performance
Switching Capacity20 Gbps
Total Non-Blocking Throughput10 Gbps
Forwarding Rate15 Mpps
Hardware
Max. Power Consumption13W
Power Method(2) Universal input, 100—240V AC, 50/60 Hz
Power Input MethodAC input
Power Supply(2) AC/DC, internal, 36W
Supported Voltage Range100—240V AC
ManagementEthernet
WeightWithout mounting brackets: 2.2 kg (4.85 lb)
With mounting brackets: 2.3 kg (5.1 lb)
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
ESD/EMP ProtectionAir: ± 16kV, contact: ± 22kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
LEDs
EthernetYes
SFP+Yes
SystemYes
CertificationsCE, FCC, IC
NDAA CompliantYes
SoftwareApplication Requirements
UniFi NetworkVersion 9.1.119 and later
