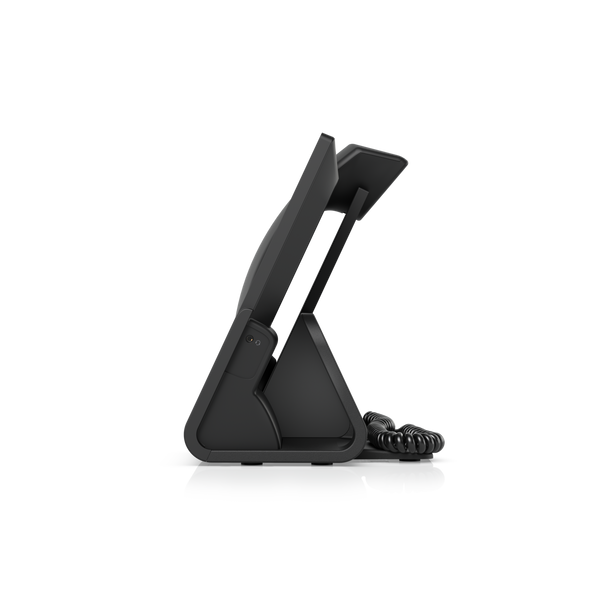

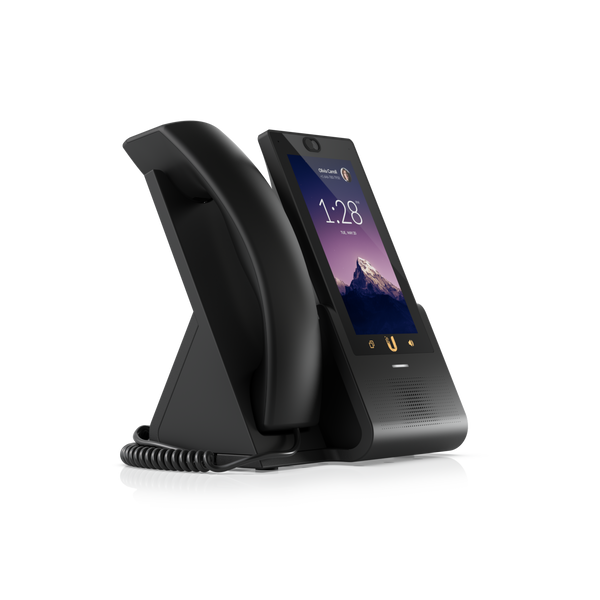

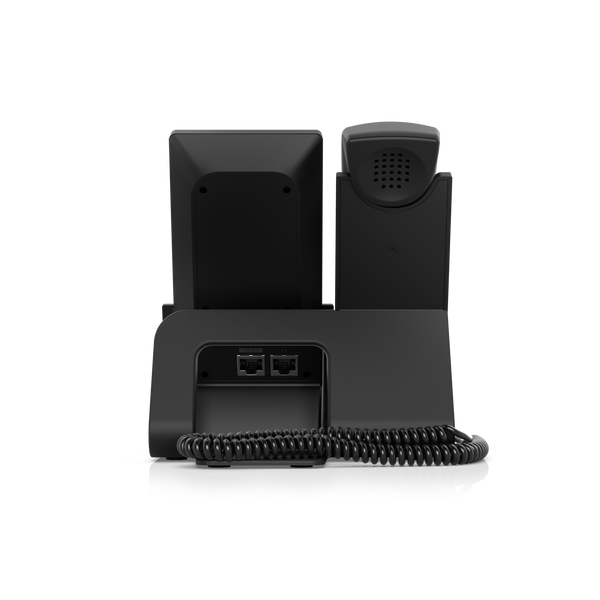

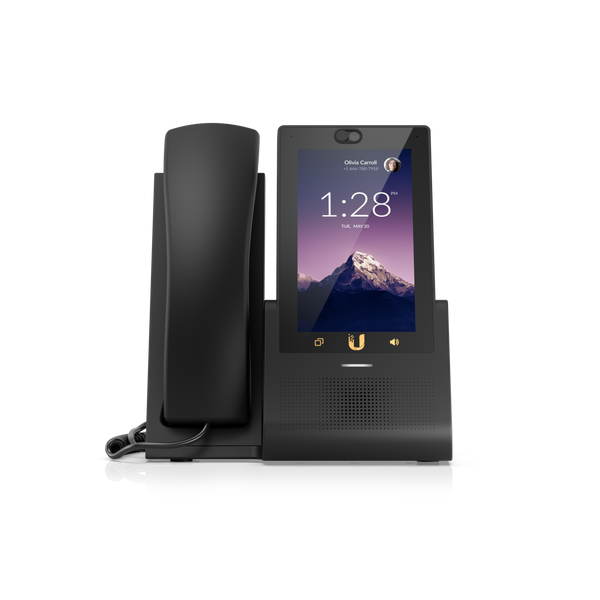

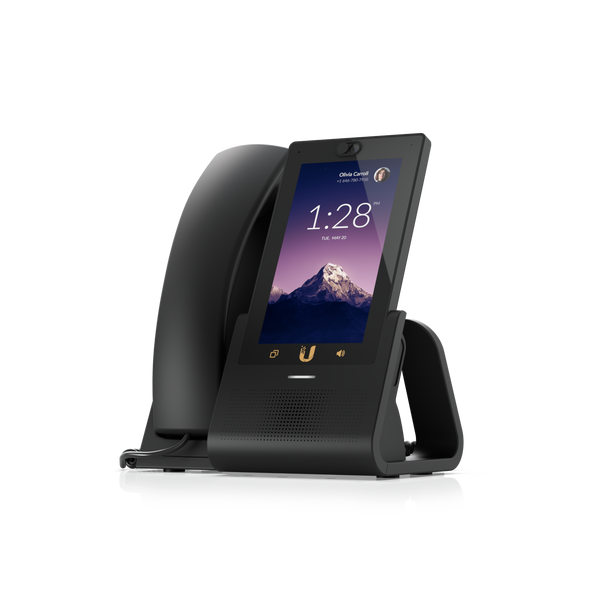

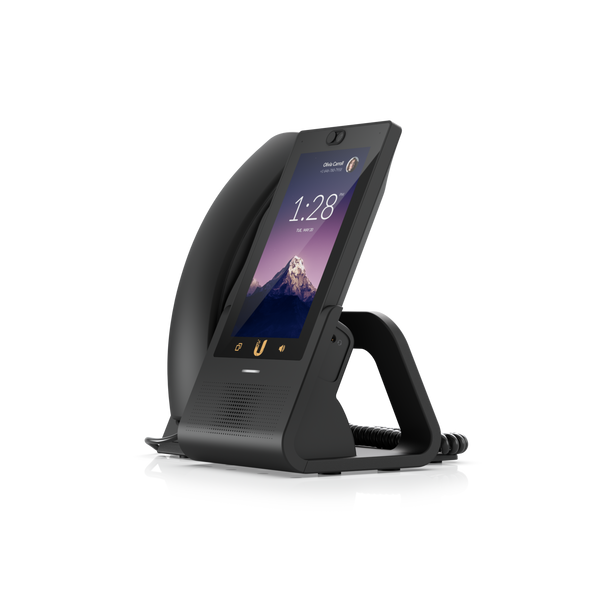

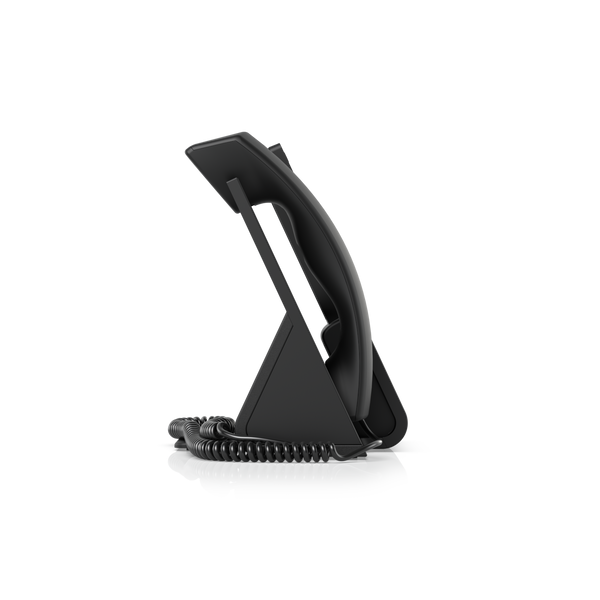

Ubiquiti Networks UTP-Touch-U
- SKU: UTP-Touch-U
$199.00
Product Information
Phone Touch (Unlocked)
Specifications
Specifications UTP-Touch-U
| Dimensions | 166 x 140 x 183 mm (6.5 x 5.5 x 7.2") |
| Weight | 1.10 kg (2.43 lb) |
| Enclosure materials | Plastic, aluminum (base) |
| Colours | Black, White |
| Display size | 127 mm (5") diagonal |
| Resolution | 720 x 1280 HD (16:9) |
| Screen technology | G+F multi-touch |
| Camera sensor | 5 MP |
| Resolution | 2592 x 1944 |
| Audio | |
| Handset dynamic receiver | 16 ohm SPL 116 dB at1 KHz, 30mW, 0 m |
| Handset microphone | Omnidirectional electret microphone SNR 70 dB Sensitivity -38 ± 3 dB |
| Codec | Standalone Hi-Fi audio codec IC Smart speaker amplier |
| Hands-free speaker | Mono, 4 ohm Nominal power: 2W Max. power: 3W SPL 80 dB at 1W, 0.5 m |
| Hands-free microphone | Dual omnidirectional MEMS microphones SNR 64 dB Sensitivity -26 dBFS Digital microphone |
| Hardware | |
| Processor | Octa-Core ARM® Cortex ® A53, 1.8 GHz |
| Memory | Storage: 32 GB RAM: 2 GB |
| WiFi standards | 802.11 a/b/g/n/ac |
| Power input | PoE |
| Max. power consumption | 8W |
| Power output | Type-C port(charging only) |
| Connectivity | (2) 10/100/1000 MbE RJ45 Bluetooth ® 4.2 WiFi 2.4 GHz b/g/n, 20/40 MHz WiFi 5 GHz a/n/ac, 20/40/80 MHz, Slave DFS |
| Headset support | 3.5 mm (0.14") Audio Jack |
| Operating temperature | 0 to 40° C (32 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certications | FCC, IC, CE |
| Software | |
| LED | Power status |
| Audio DSP algorithm | Active echo cancellation, noise suppression, blind source separation |
| Protocol | SIP/SDP/RTP/RTCP/VLAN/DHCP |
| Number of supported phone lines | Multiple |
| UniFi OS application | UniFi Talk |
| Minimum software requirements | Web browser (Chrome™ recommended) |
