Uniview HC121@TS8CR-Z
- SKU: HC121@TS8CR-Z
$1,339.00 $1,669.00
- Manufacturer: Uniview
- Data Sheet: Download
Product Information

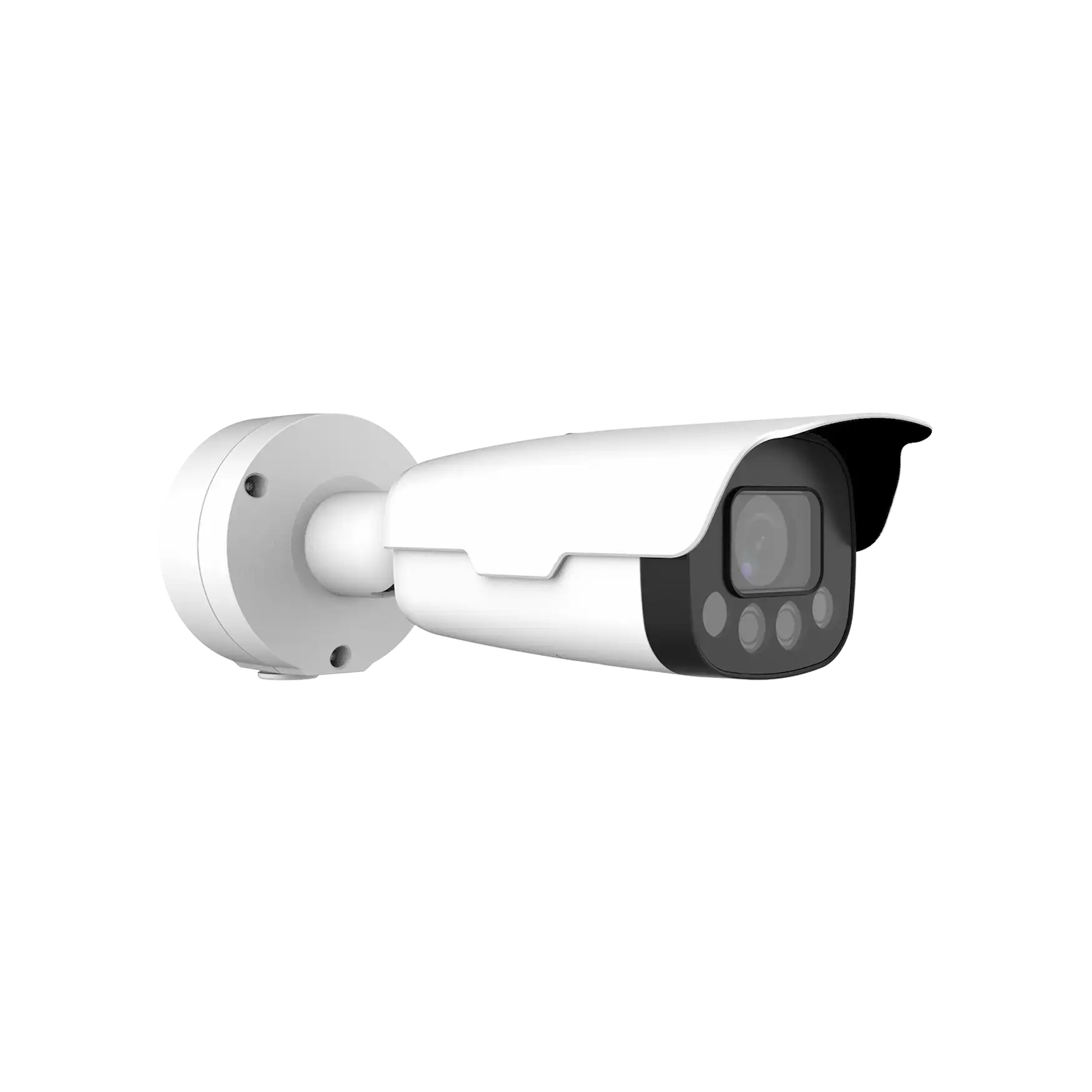

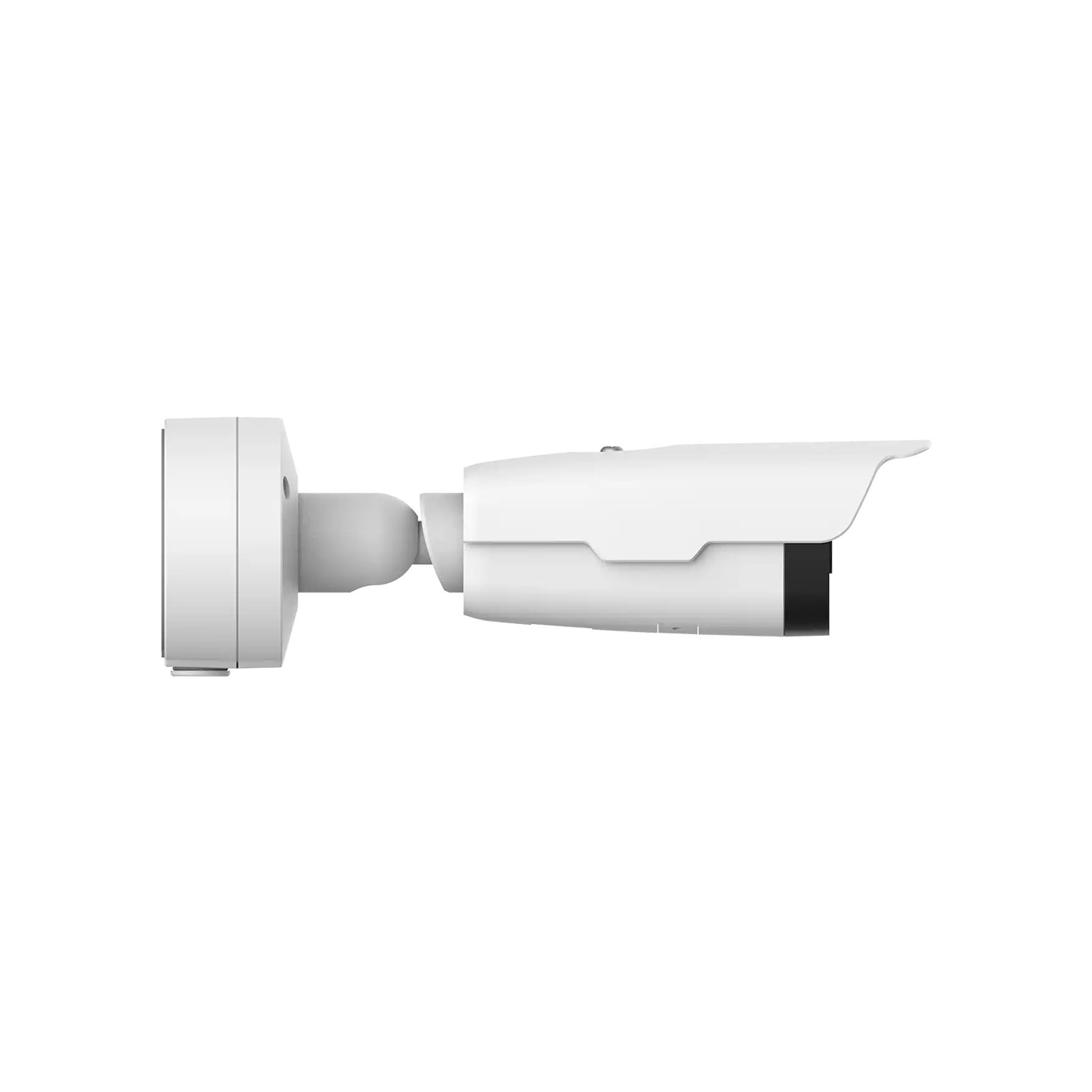

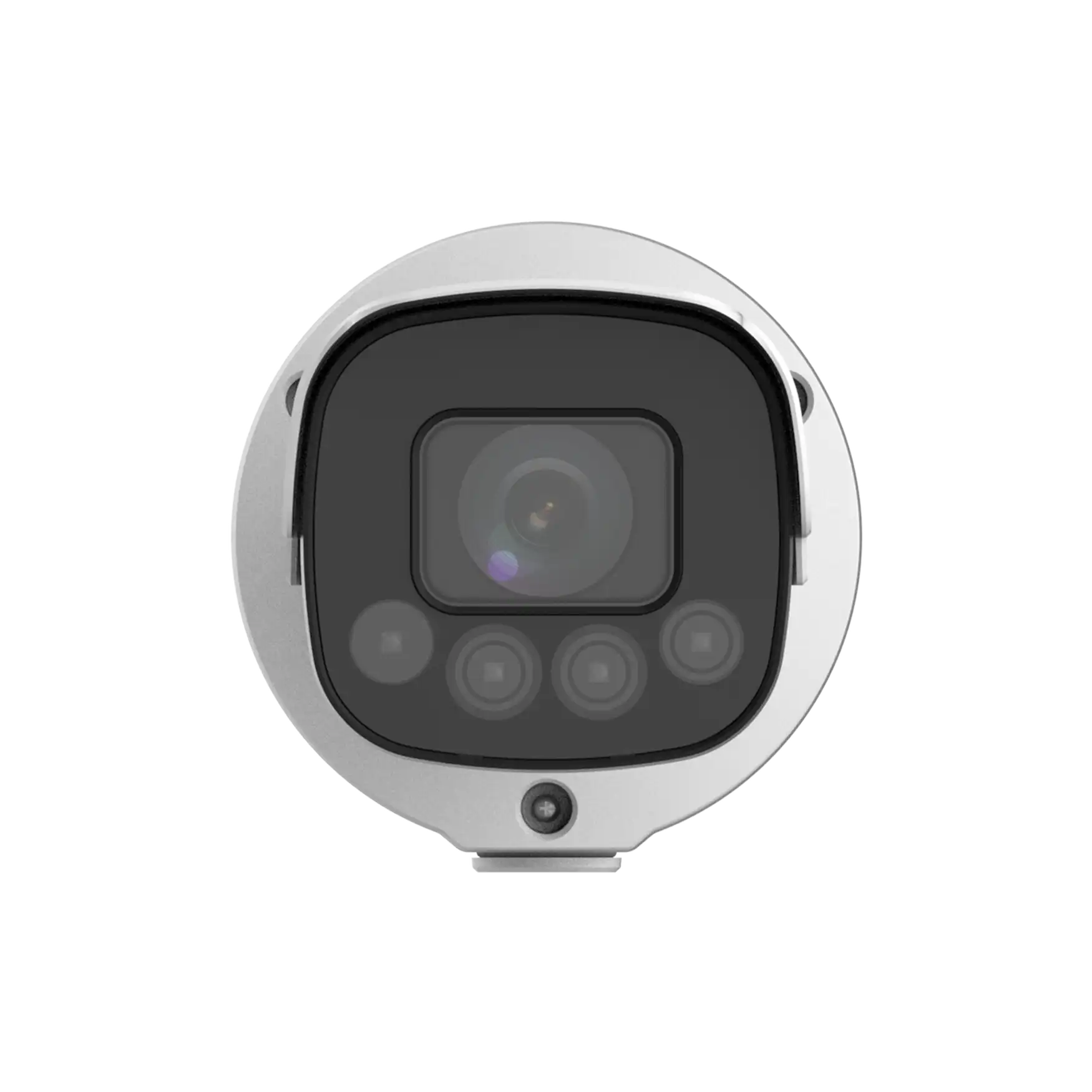

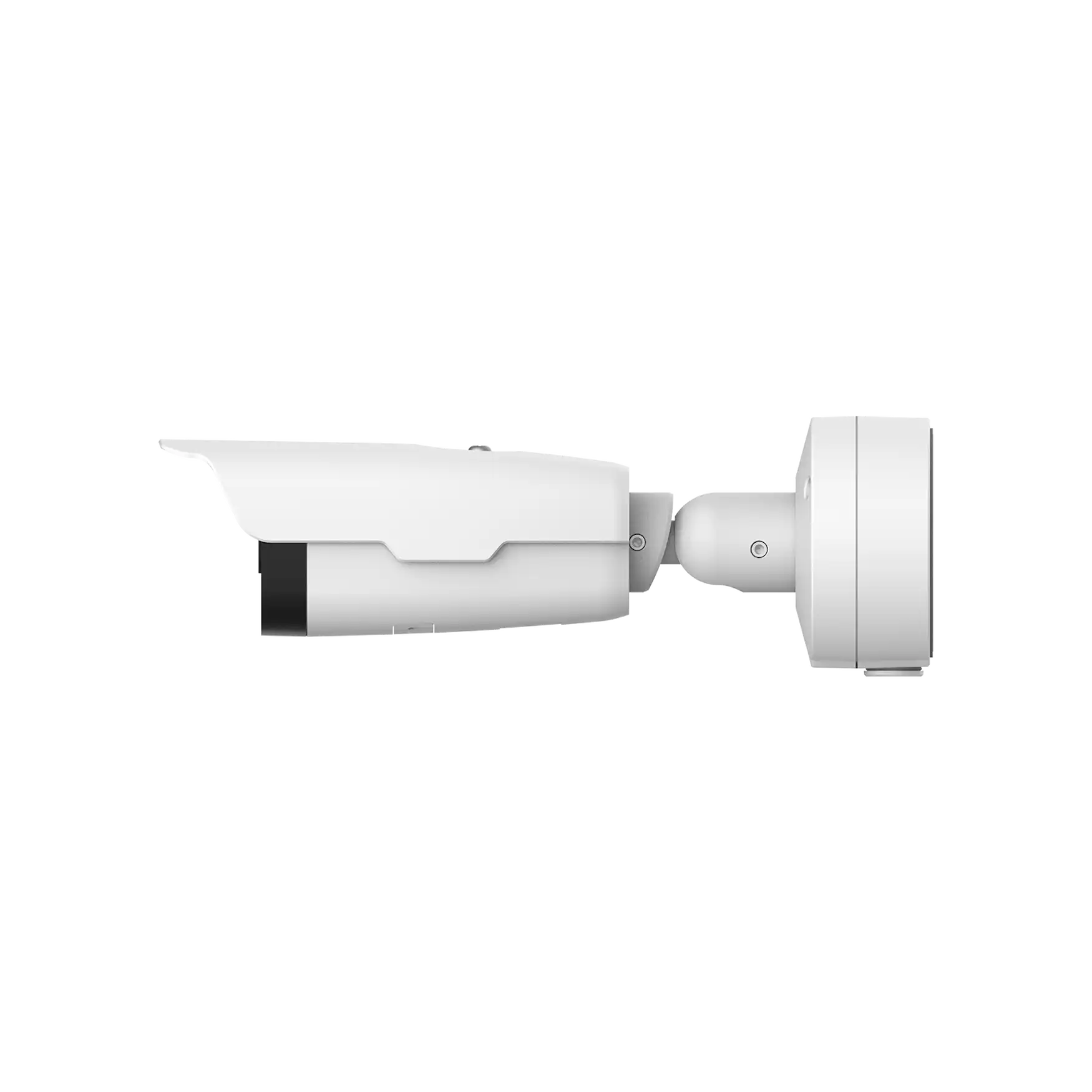

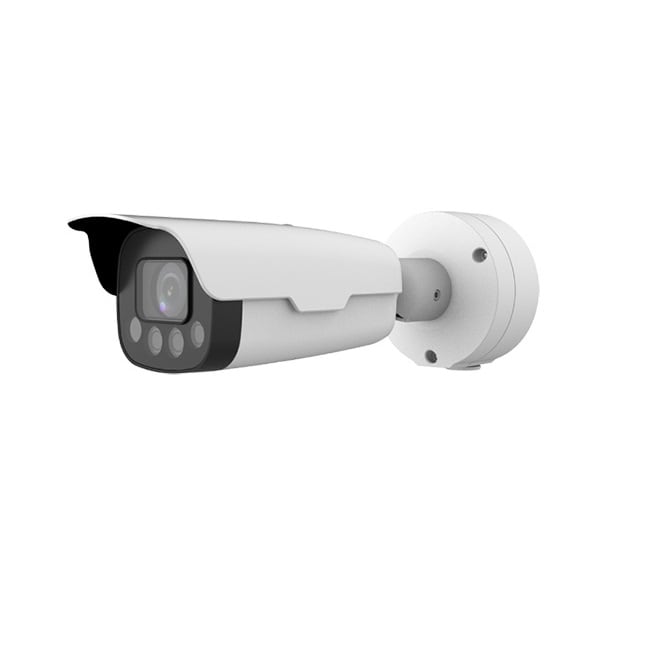

2MP ANPR Bullet Camera
Specifications
Specifications HC121@TS8CR-Z
| Camera | |
| Sensor | 1/2.8” 2MP CMOS |
| Focal length | 4.7 to 47mm, motorized zoom |
| Shutter | Auto/Manual, range: 1/25 to 1/100000 s |
| Minimum illumination | 0.001lux (F1.6) |
| Image | |
| Image collection format | 1080P@25 (default), 1080P@30, 1080P@50, 1080P@60 |
| Resolution | Main stream: 1080P (default), 720P, D1 Sub stream: 720P (default), D1, 2CIF, CIF Third stream: D1 (default), 2CIF, CIF |
| Frame rate | 60, 50, 30, 25 (default), 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 |
| Video compression | H.264 (default), H.265 |
| ROI | Supports up to 8 regions |
| Video OSD | Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents |
| Image OSD | Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location |
| Smart | |
| Application scenario | Vehicle speed ≤30km/h Supports simultaneous application to entry/exit scenes |
| Vehicle detection mode | Video (default) or inductive loop |
| Capture vehicle head only | Support |
| License plate number recognition | Supports recognition of license plates with numbers and letters by default |
| List configuration | Supports allowlist and blocklist configuration, each list allows 20,000 items Supports import, export, add, and delete operations |
| Barrier opening policy | Open barrier only for the recognized vehicles Open barrier for all vehicles Open barrier only for vehicles on the allowlist Open barrier for vehicles not on the blocklist Configurable Boolean output ID |
| Storage | |
| Edge storage | Supports ANR with a Micro SD card, up to 128GB |
| Structure | |
| Illumination | Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control |
| Sunshield | Long sunshield |
| Bracket | 3-axis mounting bracket |
| Junction box | The camera comes with a junction box for storing tail cable |
| Interface | |
| Network interface | 1 × 10M/100M RJ45 |
| Serial port | 1 × RS485 |
| Boolean output | 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A |
| Boolean input | 2 inputs, supports level/Boolean, with max level up to DC 5V |
| Audio interface | 1 × audio input, 1 × audio output |
| Storage interface | 1 × Micro SD card slot |
| General | |
| Power supply | DC12V + 25% - 10% |
| Max. power consumption: 20W | |
| Supports PoE (802.3at, class 4) | |
| Dimensions (L×W×H) | 386mm x 126mm x 130mm (15.19" x 4.96" x 5.11") |
| Weight | 2kg (4.40lbs) |
| Operating environment | -40℃ to 60℃, ≤90% RH |
| Ingress protection | IP67, IK10 |
