Product Information

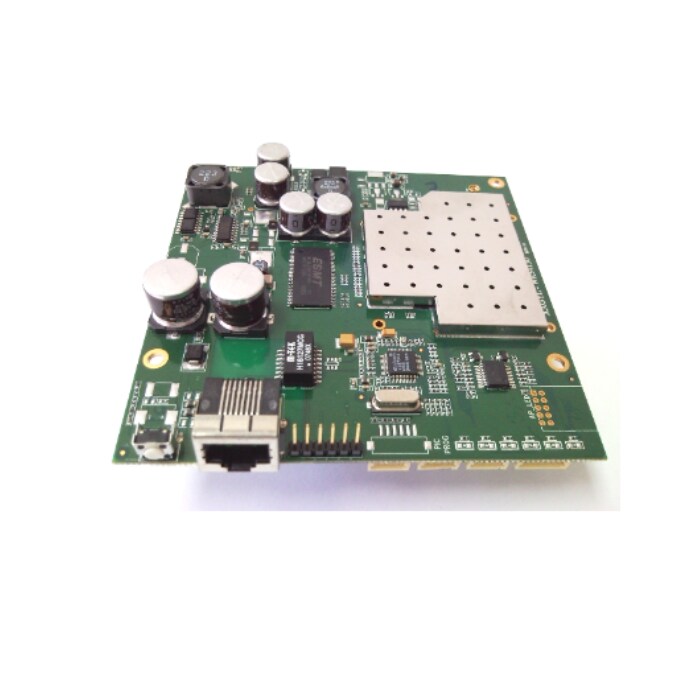

XAGYL Osprey 2.4GHz 801.11b/g 1W (30dBm) Wireless Router with OpenWRT 15.05
Specifications
Specifications WR24G30
| Chipset & CPU | Atheros AR2315 |
| Operation Voltage | 24V (10V to 28V), 48V optional |
| Radio Frequency Band | 2412MHz to 2484MHz, 2300MHz to 2525MHz optional |
| Data Rates | 54, 48, 36, 24, 18, 12, 9, 6 Mbps (Auto fall back) |
| Channel Bandwidth | 5, 10, 20Mhz, 40MHz optional |
| Network Connection | 10/100 Auto MDI/MDX Fast Ethernet |
| UART | RS232, RS422/RS485 optional |
| Antenna ports | Single MMCX port |
| Power consumption | 24V (15W), 48V optional |
| Operating temperature | -4ºF to +158ºF (-20ºC to +70ºC) |
| Dimension | 4.13" x 2.4.13" (105 x 105 mm) |
| Tx/Rx Specification | |||
| Band | Data Rate | Tx Power | Rx Sensitivity |
| IEEE 802.11b (2412 MHz ~ 2484 MHz) | 1 Mbps 2 Mbps 5 Mbps 11Mbps | 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm | -97dBm ± 1dBm -95dBm ± 1dBm -92dBm ± 1dBm -90dBm ± 1dBm |
| IEEE 802.11g (2412 MHz ~ 2484 MHz) | 6 Mbps 9 Mbps 12 Mbps 18 Mbps 24 Mbps 36 Mbps 48 Mbps 54 Mbps | 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm 30dBm ± 1dBm 29dBm ± 1dBm | -93dBm ± 1dBm -93dBm ± 1dBm -91dBm ± 1dBm -89dBm ± 1dBm -86dBm ± 1dBm -82dBm ± 1dBm -77dBm ± 1dBm -74dBm ± 1dBm |
