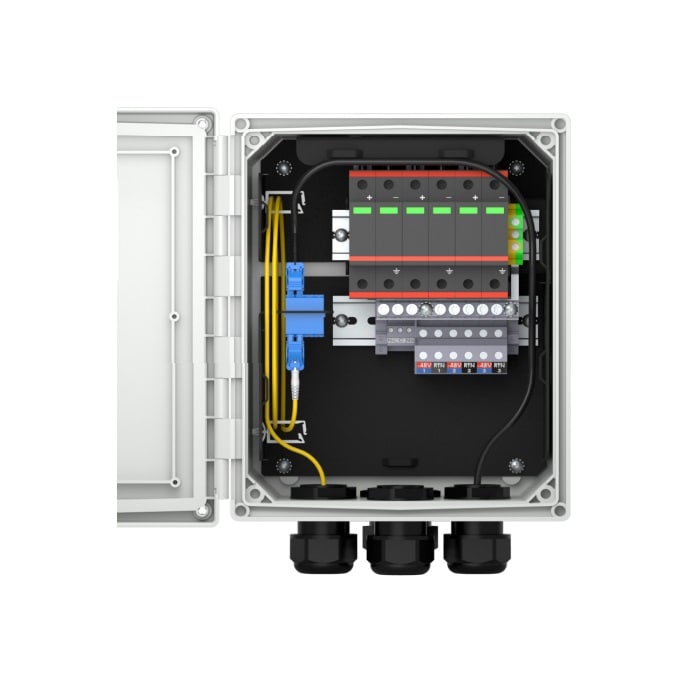

viaPhoton Outdoor Hybrid Enclosure, 12 Fiber, SM, LC, 3 SPD, W/ Alarm, 12.5"H x 11"W x 7"D, Gland Pattern 3
- SKU: OHE-12-3SPD1-S-G3
$1,416.67
- Manufacturer: viaPhoton
- Data Sheet: Download
Product Information
Outdoor Hybrid Enclosure, 12 Fiber, SM, LC, 3 SPD, W/ Alarm, 12.5"H x 11"W x 7"D, Gland Pattern 3
viaPhoton is constantly innovating to anticipate and meet all of your connectivity needs. The patented Outdoor Hybrid Enclosure (OHE) with overvoltage protection is no exception. The engineered flip-tray mechanism offers dedicated fiber access, optical path testing becomes easier, and maintenance becomes faster. The spring-loaded clip ensures smooth fiber travel and saves time when routing cable. The universal brackets allow the enclosure to be mounted to any horizontal or vertical structure.
Features:
- Easy-access design for fast, on-site fiber and power installation
- NEMA 4X rating for harsh environment protection
- IEC Class 1 Surge Protection Device (SPD) for DC-powered RRH applications
- Uptime preserved in rare instance of SPD failure; RRH units remain powered
- Gland sizes for range of cable diameters (5 mm - 32 mm)
Specifications
Specifications OHE-12-3SPD1-S-G3
| Dimension | 18 in L x 16 in W x 8 in H |
| Weight | 20 lbs |
| Radios Supported | up to 3 |
| Fibers | 12 max (6 duplex) |
| DC Conductors | 6C (3 pair) 6-14 AWG |
| Surge Protection (Class I / Type 1) | 3 circuits |
| Cable Gland Seal | custom configuration for cable diameters 5 mm -32 mm |
| Wind Load | 150 mph sustained: 195 mph gust: 60.85 lb (270.71 N) 102.85 lb (457.50 N) |
| STANDARD FEATURES | |
| Fiber Type | single-mode |
| DC Termination | screw with metal plate clamping spacer between each pair of terminals |
| Security | stainless steel latch with padlock clasp |
| Outdoor Temperature Range | -40°C to +80°C |
| Environmental, Sealing | NEMA 4X |
| Cable Entry | gland seal |
| Tower Mount | universal mount for 2.75” - 4” poles, banding capabilities for larger diameters |
| SURGE PROTECTION DEVICE FEATURES | |
| Protection Class | Class I / Type 1 |
| Voltage Protection Rating | 400 V (UL 1449) |
| Nominal Operating Voltage | 48 VDC |
| Max Continuous Operating Voltage | 100 VDC |
| Nominal Discharge Current | 20kA |
| Max Surge Current | 65kA |
| Response Time | ≤25 nanoseconds |
| Optional Alarming Feature | local fault indication to SPD plug |
