Product Information

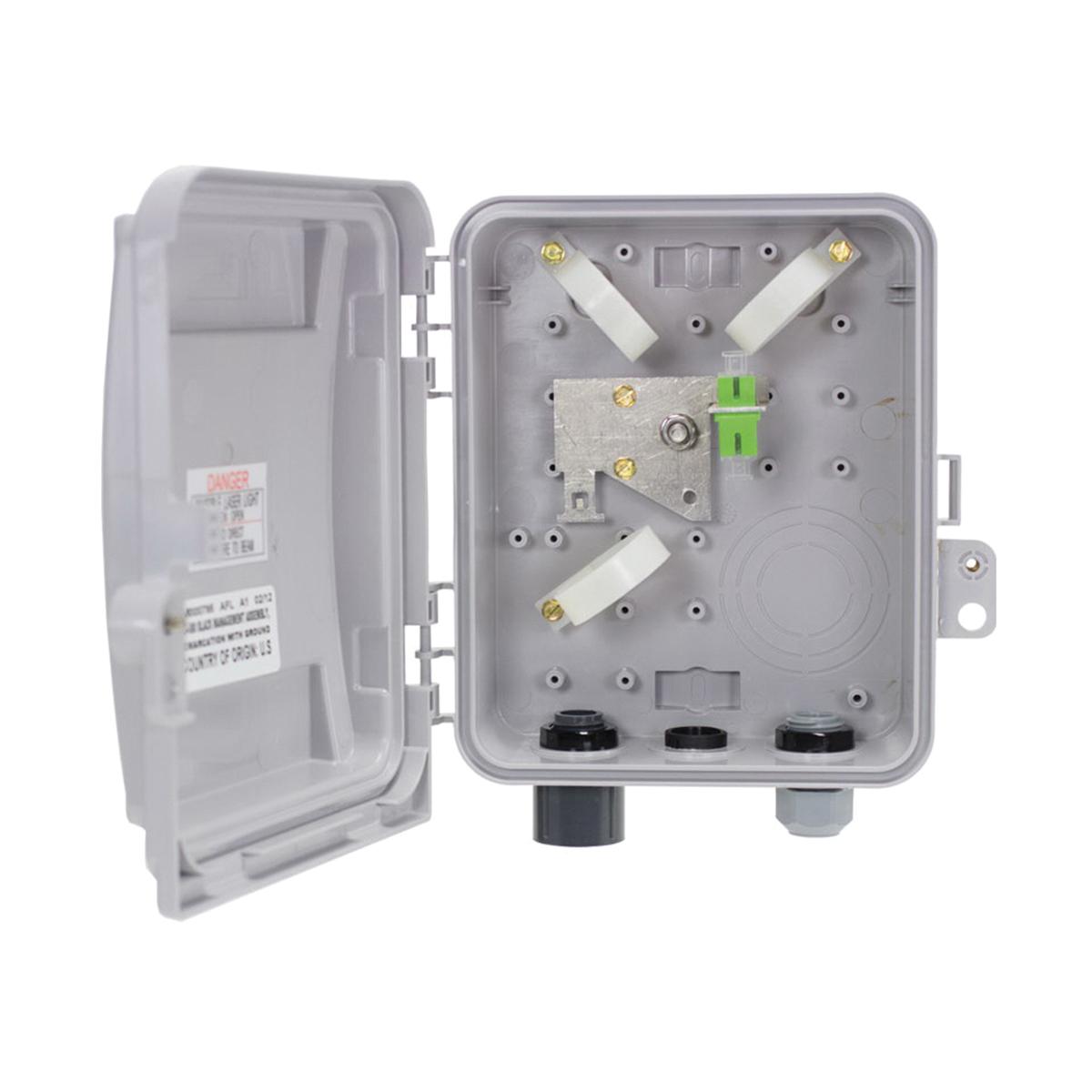

The OptiNID (OPN) 300 series are optical demarcation closures designed for use in either indoor or outdoor environments. Smaller to suit FTTH demarcation applications and versatile to suit Cat5 or coax connections, the OPN-327SS and the OPN-350SS are equipped to handle up to two adapters each. Configured with routing rings positioned to accommodate safe slack storage, the OPN-300 series closures can be either wall or pole-mounted for ease of use and accessibility.
Product Features
- Weather-resistant thermoplastic alloy
- Self-latching, the hinged cover design allows easy access without loose parts
- Routing rings positioned for safe slack storage
- Capacity for up to two adapters
- Ground stud provided in the OPN-350SS
Product Specifications
- Depth: 2in
- Height: 6.3in
- Width: 7.8in
- Indoor/Outdoor: Indoor/Outdoor
- Material: Thermoplastic
- Mounting Type: Pole, Wall
- Series: OptiNID 300 Series
- Temperature Rating: -40 to 140 deg F
Specifications
Specifications DM000795
| Depth | 2 in |
| Height | 6.3 in |
| Indoor/Outdoor | Indoor/Outdoor |
| Material | Thermoplastic |
| Mounting Type | Pole, Wall |
| Series | OptiNID® 300 Series |
| Temperature Rating | -40 to 140 deg F |
| Width | 7.8 in |
