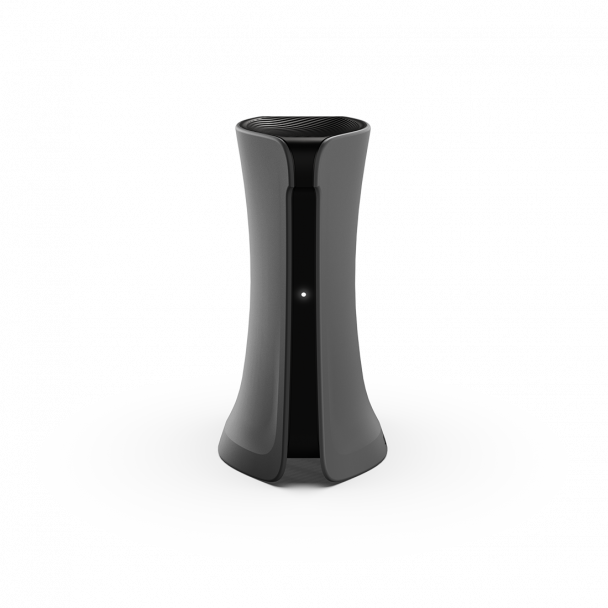

Adtran SDG841-T6 Wi-Fi 6 Mesh Hub
- SKU: 17600030F1
$237.44
+ $4.91 Tariff
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
The Adtran SDG 841-T6 Wi-Fi 6 Service Delivery Gateway (SDG) is a carrier-class, 802.11ax Ethernet residential gateway / mesh satellite with Tri-band Mesh, 2.5GE WAN/LAN port, and OpenSync support. It's built to extend fiber and multi-gigabit performance for buffer-free 4K / 8K streaming and gaming, connect 100s of smart home devices, and deliver consistent coverage across the home or business.
Product Applications- Whole home Wi-Fi
- Multicast traffic handling for IPTV
- 360° coverage anywhere in an office, or outdoor spaces
- Extends multi-gigabit connectivity via Wi-Fi 6 technology
- Provides high-performance tri-band mesh coverage
- Produces lag-free gaming and 4K streaming by offering 4x4 simultaneous streams via MU-MIMO
- Delivers 360 coverage with its H-Pol omni antennas that cut RF interference
- AI-driven adaptive mesh - delivering consistent, high-performance connectivity to all users and devices
- 1x 2.5GBASE-T ports with RJ-45 connectors
- 1x 10/100/1000BASE-T ports with RJ-45 connectors
- Tri-band radios: 2.4GHz(2x2), 5GHz(2x2), 5GHz(4x4)
- Power consumption: Less than 30W
- Adtran SDG 841-T6 Wi-Fi 6 SDG (Service Delivery Gateway)
Specifications
Specifications
| Ethernet Interfaces | ● 1 x 2.5GBASE-T Ports with RJ-45 Connectors ● 1 x 10/100/1000BASE-T Ports with RJ-45 Connectors ● Ethernet Port Auto Negotiation or Manual Configuration (Softward Dependent) ● MDI/MDI-X Automatic Sensing |
| Gateway Features | ● WAN Connection z Point-to-Point Protocol over Ethernet (PPPoE) z Dynamic Host Configuration Protocol (DHCP) ● DHCP Server for LAN Devices ● DNS Relay ● Network Address Translation (NAT)/Network Address Port Translation (NAPT) ● Port Forwarding ● Static Routing ● Access Control List (ACL) ● VPN Pass Thru for Point-to-Point Tunneling Protocol (PPTP), Layer 2 Tunneling Protocol (L2TP) and IP Security Protocol (IPSec) ● Firewall ● Application Layer Gateway (ALG) ● Demilitarized Zone (DMZ) ● Dynamic Domain Name Server (DDNS) ● Network Time Protocol (NTP) ● Universal Plug and Play (uPnP) ● IGMP Proxy ● IPv6 z Stateless Address Autoconfiguration (SLAAC) z DHCPv6 z PPPoEv6 z DNSv6 |
| WLAN Interface | ● Compliant with IEEE 802.11 b/g/n/ac/ax ● Dynamic Frequency Selection ● Multi-Region Support ● 2.4 GHz and 5.0 GHz ● Tri Band Radios z 2.4 GHz 2x2 z 5.0 GHz 2x2 z 5.0 GHz 4x4 ● WPA3 Support ● Bluetooth 5.0 z Push Button WPS |
| Dimensions | ● 6.6 in x 3.9 in x 8.1 in (168 mm x 98 mm x 206 mm) (Height x Width x Depth) ● 1.3 lbs (584 gm) |
| Power Supply | z +12V (Feed via External AC/DC Adapter) z Power Consumption: Less than 30W |
| Working Environment | ● Temperature: 41° F – 104° F (5° C – 40° C) ● Humidity: 5% – 85% Relative Humidity |
| LEDs | ● Multifunction RGBW ● 2.4GHz ● 5GHz ● 5GHz ● WPS ● Ethernet Link/Activity |
| Safety and EMI | ● CE Certificate ● FCC/Industry Canada Certified, UL Listed ● ETL Intertek Listed (UL 62368-1) ● CE/UKCA Mark ● DFS Certified ● ACMA/RCM Compliant ● RoHS 6 of 6 |
