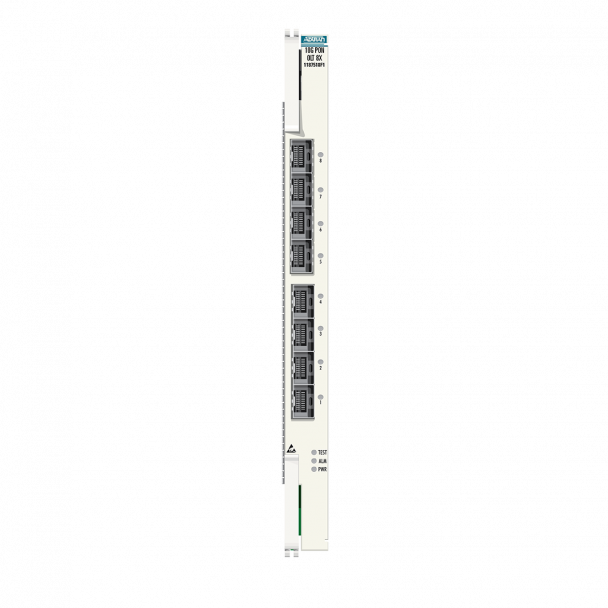

Adtran Total Access 5000 10G Combo PON OLT Access Module Bundle with D2 Optics
- SKU: 4187518F32
$22,556.80
+ $933.66 Tariff
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
The Adtran Total Access 5000 compatible 10G Combo PON OLT module supports a flexible optics approach that allows each of the eight ports to utilize multiple transceivers independently. This enables service providers to determine the right technology (GPON or XGS-PON) for residential FTTH while also providing capacity for high-bandwidth business and mobile backhaul services.
Product Features- Extends FTTH reach up to 60 km simplifying broadband expansion to rural and remote locations
- Extends gigabit service coverage area by 20% increasing revenue potential
- Supports multi-gigabit residential, business, and mobile backhaul services
- Simplifies migration to XGS-PON with zero operational impact, additional space, or customer disruption
- Adtran Total Access 5000 8-port 10G OLT Combo (GPON/XGS-PON) Bundle with D2 Optics
Specifications
Specifications 4187518F32
| Interfaces | |
| 8 (16)* 10G Combo PON Ports Capable of Supporting: faces | ● GPON: B+, C+, C++, and D Class SFP Optics ● XGS-PON: N1 and N2 Class SFP+ Optics ● Combo PON: D1 and D2 Class SFP+ Optics ● *Supports Separate or Simultaneous GPON and XGS-PON Delivery Per Interface |
| ITU-T Compliant GPON and XGS-PON ODN Range Configuration Support (Optical Budget Dependent) | ● Standard: 20 km ● Extended: 37.5 km ● Maximum: 60 km |
| Capacities | Capable of Up to 128 ONTs Per Combo PON Interface |
| Total Access 5000 23-inch Chassis | 21 Access Modules; Up to 21,000 Subscribers Per Chassis (Utilizing 1:128 split) |
| Total Access 5006+ Chassis | Six Access Modules; Up to 6,000 Subscribers Per Chassis (Utilizing 1:128 split) |
| Total Access 5004 Global Chassis | Four Access Modules; Up to 4,000 Subscribers Per Chassis (Utilizing 1:128 split) |
| Total Access 5004 Micro Cabinet | 2 Access Modules; Up to 2,000 Subscribers Per Chassis (Utilizing 1:128 split) |
| Management | ● Mosaic Software Suite ● Advanced Operational Environment (AOE) ● Remote Management Through SNMP, CLI, and Web-Service APIs (HTTPS) ● Ethernet Interface on SCM for Web and Telnet/SSH Access (In-Band or Out-of-Band) ● Craft and Ethernet Interfaces on SCM ● OMCI to ONTs |
| Physical | Dimensions: 9.5 in. x 0.75 in. x 9.0 in. (241 mm x 19 mm x 228 mm) (H x W x D) |
| Environmental | ● Operating Temperature: -40° F to 158° F (-40° C to +65° C) (With High-Flow Fan) ● Storage Temperature: -40° F to 185° F (-40° C to +85° C) ● Relative Humidity: Up to 95%, at 122° F (50° C), Non-Condensing |
| Regulatory Standards | ● Applicable UL/CUL Standards ● Applicable EN/IEC/AS/NZS Standards ● FCC Part 15 Class A ● CE Mark (Meets Applicable Safety, EMC, Energy Efficiency Directives) ● NEBS Level 3 |
