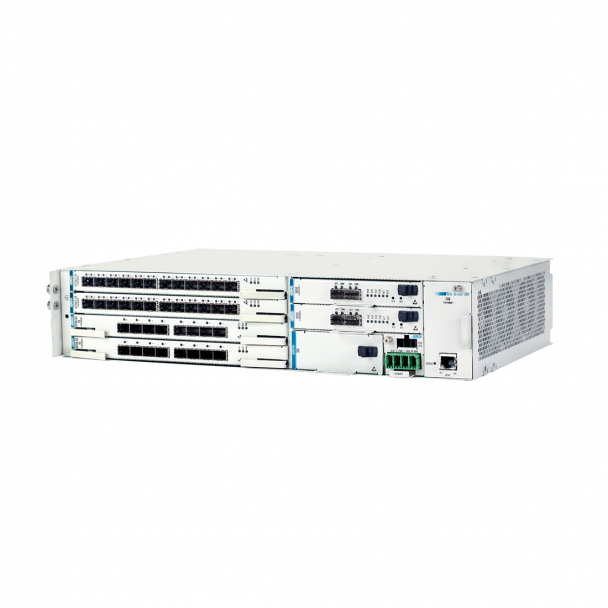

Adtran Total Access 5004 Chassis Kit
- SKU: 41875416F1
- Manufacturer: Adtran
- Data Sheet: Download
Product Information
The Adtran Total Access 5004 (TA5004) micro-cabinet was designed for easy, flexible, and rapid deployments on poles or walls to function as a remote node in a variety of operator networks.
Adtran’s combo PON capabilities support both GPON and XGS PON simultaneously over a single ODN, enabling you to deliver residential and business gigabit, as well as multi-gigabit services to anchor institutions (schools, hospitals) and mobile backhaul, all from the same system.
With the ability to mix-and-match broadband delivery cards that support up to 16 ports, that can easily scale to serve up to 2,048 subscribers, the TA5004 enables service and architecture flexibility, and broadband services provisioning.
The TA5004 Micro Cabinet can be deployed as a standalone node or as a subtended node to your existing Total Access 5000 (TA5000) FTTH network footprint to expand service coverage.
The system supports existing TA5000 line cards and management systems, as well as extended-reach optics (60+km), allowing you to seamlessly expand coverage to underserved and rural areas while lowering deployment, commissioning, and sparing costs.
Product Features:• 2RU (Rack Units), 19-inch brackets
• 2 x Redundant Management and Switch Module slots
• 4 x Access Module slots
What's in the box?
• Adtran Total Access 5004 Chassis
• Adtran Total Access 5004 MSM20 2x10GE SFP+ Modules (1187016F1)
• Adtran Total Access 5004 Power/Alarm Module (1187064F1)
• Adtran Total Access 5004 Fan Module (1187094F1)
Specifications
Specifications 41875416F1
| Interfaces | |
| Uplink | 2x1/10GE |
| Transport | 8x1/10GE via ETOS-10 Transport Module |
| Management | 10/100Base-T Ethernet Port |
| Applications and Services | ■ 10G FTTH for Gigabit and Multigigabit Broadband ■ Optical Networking Edge (ONE) for Premium (SLA) 10G Services, Aggregation, and Transport ■ Carrier Ethernet Services Over Any Medium |
| Physical | |
| Dimensions | 3.5 in. x 17.2 in. x 10.9 in (89 mm x 438 mm x 278 mm) (H x W x D) |
| Weight | 8.1 lbs (3.7 kgs) |
| Nine Rack-mountable Units | (2RU) |
| Management | ■ Mosaic Cloud Platform ■ Mosaic One ■ Advanced Operational Environment (AOE) ■ Remote Management Through SNMP, CLI, and Web-Service APIs (HTTPS) ■ Ethernet Interface on SCM for Web and Telnet/SSH Access (in-band or out-of-band) |
| Environmental | |
| Operating Temperature | -40° F to +149° F (-40° C to +65° C) |
| Storage Temperature | 40° F to +185° F (-40° C to +85° C-) |
| Relative Humidity | Up to 95%, Non-condensing |
| Electrical | |
| Nominal Powering Voltage | -48 VDC |
| Power Terminal | Redundant A and B Power Feeds |
| Regulatory Standards | ■ EN 60950-1 ■ AS/NZ 60950 ■ IEC 60950-1 ■ EN 300 386 ■ RoHS |
