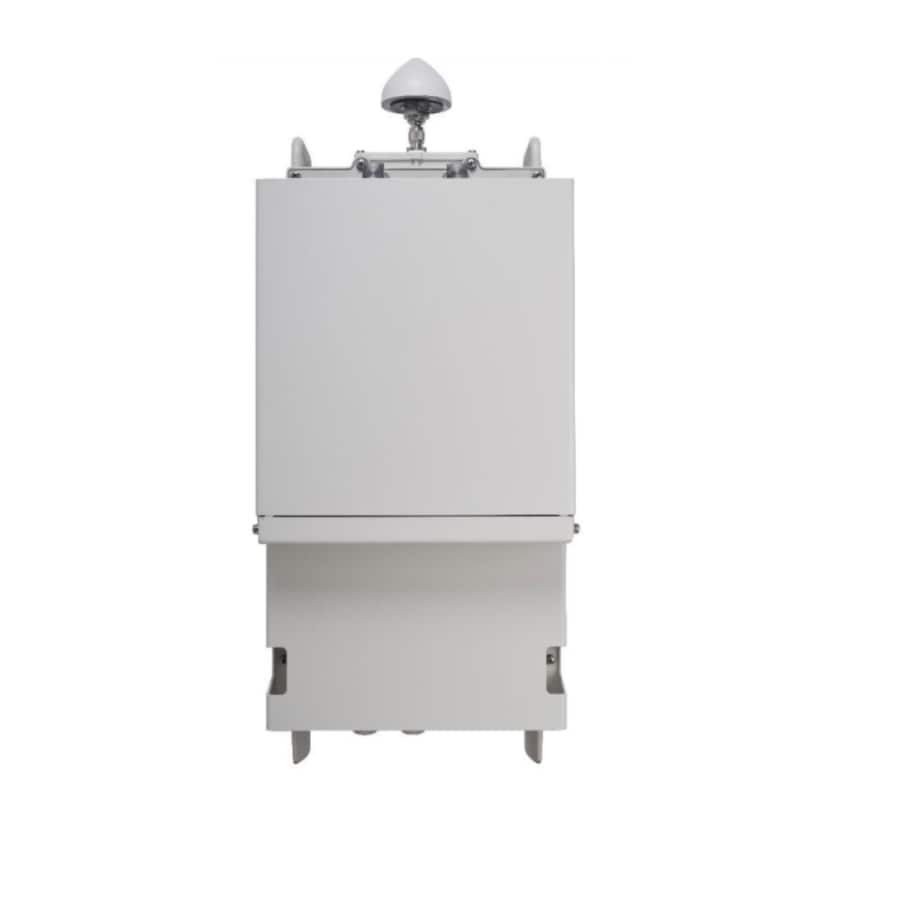

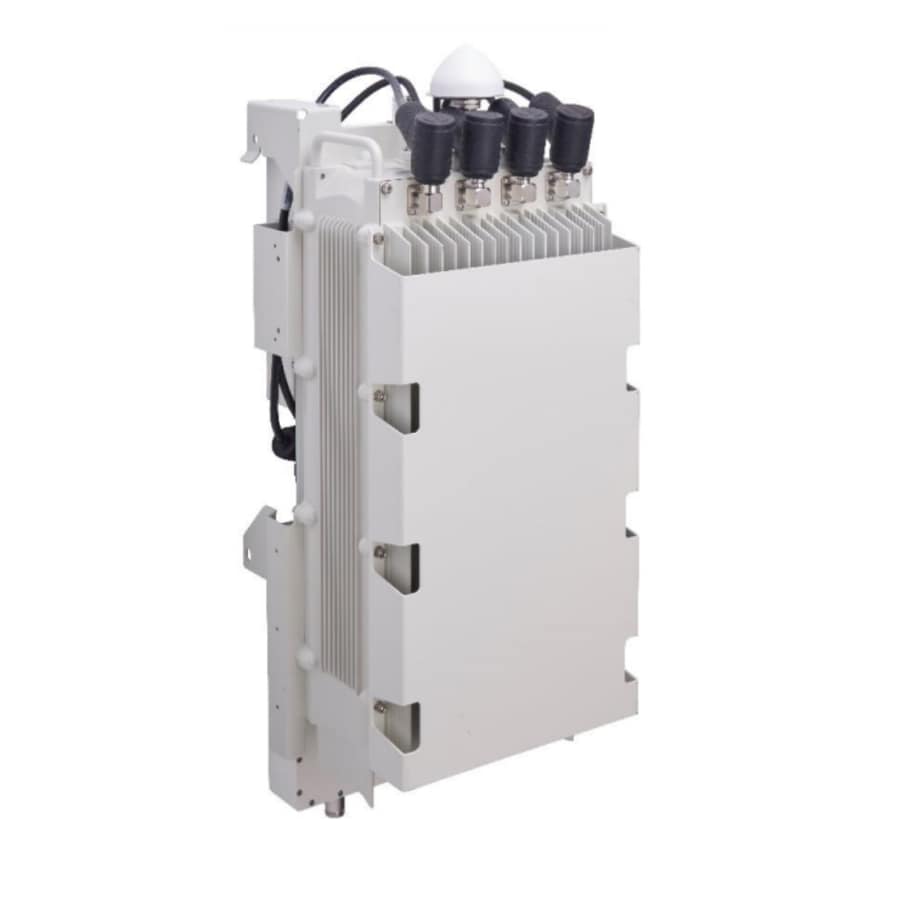

Airspan AirHarmony 4000 Outdoor 4G LTE eNodeB
- SKU: HAR40-CN-U41-B06DP
Product Information
ISP Supplies supplies the Airspan AirHarmony 4000Outdoor 4G LTE eNodeB with integrated wireline backhaul options. AirHarmony 4000 is a mini-macro carrier-class LTE small cell eNodeB that supports 3GPP’s latest LTE releases eNodeB specifications (software upgradeable). It provides high-speed data, mobility, voice over LTE, and broadcast/multicast services in order to meet the demands of fixed and mobile LTE carriers.
• Plug and play: full plug-and-play functionality, out-of-the-box to fully operational, within 20 minutes
• The power of HetNets: ideal for networks, delivering high data rates and significant cell size where needed most
• Broadband access: supports the latest 3GPP LTE broadband access technologies
• Integrated wireline backhaul: supports various backhaul options including multiple fiber / copper interfaces which allows for a variety of network topologies
• Latest release LTE feature sets: supports the latest 3GPP release feature sets (software upgradeable). Also includes support for SON and eICIC which enables N=1 frequency re-use with the Umbrella Macro cell
• Reduced CAPEX/OPEX: can be installed without conventional indoor infrastructure, associated power and air-conditioning.
• Radio planning with SON: designed to integrate with a standardized LTE Access SON solution
Specifications
Specifications HAR40-CN-U41-B06DP
| PHYSICAL | |
| Antenna Configurations | SBA – Dynamic antenna beam External antenna Dual X-Polar External antenna Quad X-Polar for AirHarmony 4400 |
| Data Interface | 2x Fiber Optic (via SFP) and 2x Copper |
| Weight | 19 kg / 42 lb |
| Power Consumption | 265 Watts |
| Operating Temperature Range | -40°C to +55°C / -40°F to +130°F |
| IP Rating | IP66 |
| RADIO INTERFACE | |
| Version | Release 10 Feature Sets (SW upgradeable for 3GPP R11, R12 and beyond) |
| Operational Frequency Bands: Band 40 (2.3-2.4 GHz) | Band 41 (2.6GHz) Band 42 (3.5GHz) Band 3 (1.8GHz) Band 28 (700MHz) Band 26 (800MHz) |
| Duplex | TDD, FDD Channel BW: Up to 2x 20 MHz with CA |
| Max Transmit Power | +43 dBm per Tx channel |
| MCS Support | Up to 64-QAM |
| Synchronization | GNSSS (GPS) & IEEE1588 PTPv2 |
| Downlink Freq. (MHz) | 2496-2690 |
| Uplink Freq.(MHz) | 2496-2690 |
| Dup. Mode | TDD |
| Max Channel BW (MHz) | 20 |
| Dual Carrier2 | Yes |
| Tx / Rx Conf. | 2x2 |
| Tx Power (dBm) | 43* |
| Power Source | DC |
| Filters / Duplexers Variant | Internal Filters |
