LightSaber Optics R9B27A
- SKU: R9B27A
$299.99 $347.00
- Manufacturer: Aruba Instant On
- Spec Sheet: Download
Product Information

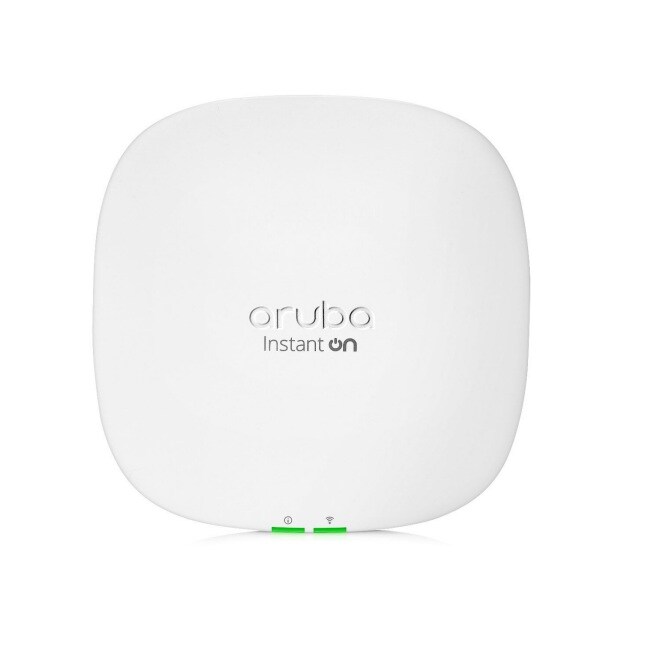

AP25 (US) 4x4 Wi-Fi 6 Indoor Access Point
Specifications
Specifications R9B27A
| Certifications | EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 |
| Input voltage | Power over Ethernet (POE): 802.3at (class 4) Max power consumption (worst-case): 20.1W (PoE), 15.9W (DC) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU |
| Wi-Fi antenna | Down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 3.77 dBi in 2.4GHz and 4x4 MIMO with peak antenna gain of 4.55 dBi in 5GHz (of the effective, combined pattern for both antennas in each band) |
| Connectivity, standard | Ultra-fast 802.11ax, 4x4:4 |
| Ports | Uplink 2.5 Gigabit Ethernet port, with PoE-in support (802.3at) DC power connector (12V) Bluetooth Low Energy (BLE) radio LED status indicators Reset/LED control button Kensington security slot |
| Mounting | The access point ships with a white mount clip that can attach to both walls and ceilings. Mounts that match the design of the APs can be purchased separately |
| Power consumption | Max power consumption (worst-case): 20.1W (PoE), 15.9W (DC) |
| Radio coverage | Dual radio for simultaneous dual-band operation 5 GHz 802.11ax 4x4 MIMO for up to 4.8 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6) |
| Warranty | Aruba Instant On 2-year* warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is available for the life of the product. Foundation Care provides extended support for APs. The SKUs are HK1Y0E (3 years) and H30GZE (5 years). |
| Weight | 2.6 lb |
| Dimensions ( H x W x D) | 2 x 8 x 8 in |
