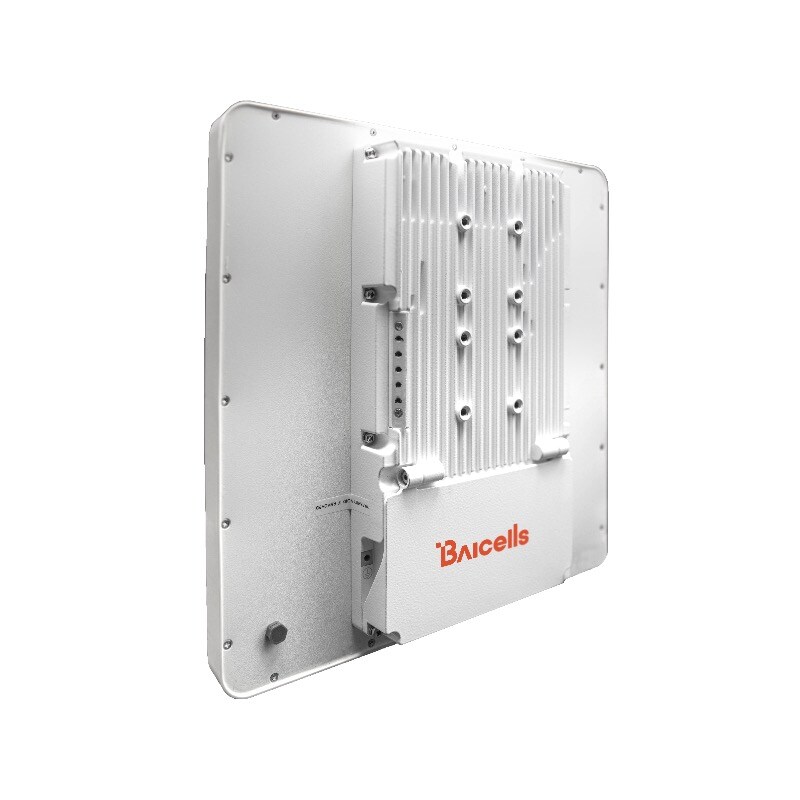

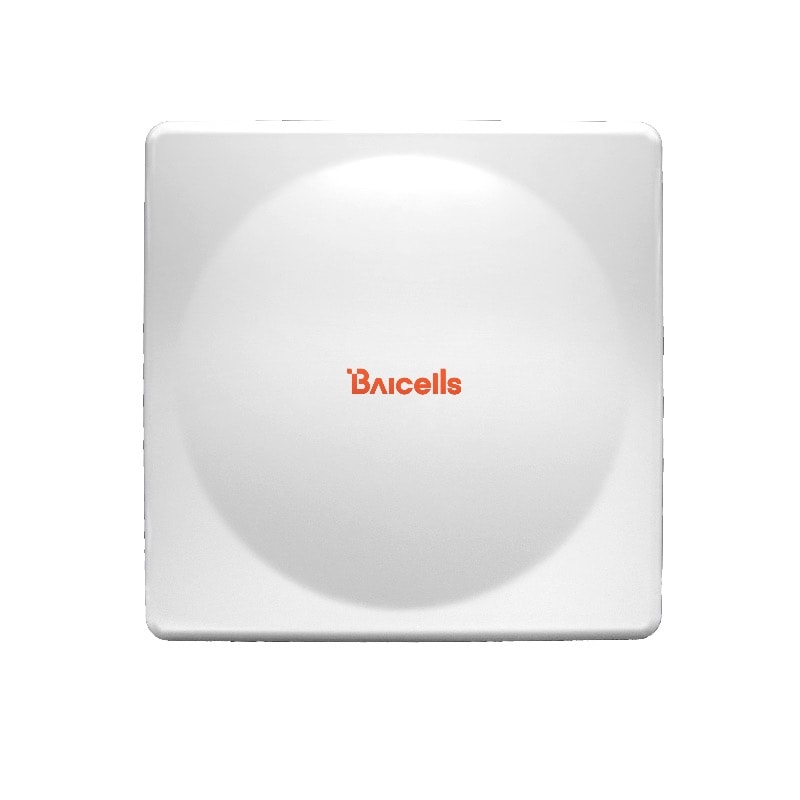

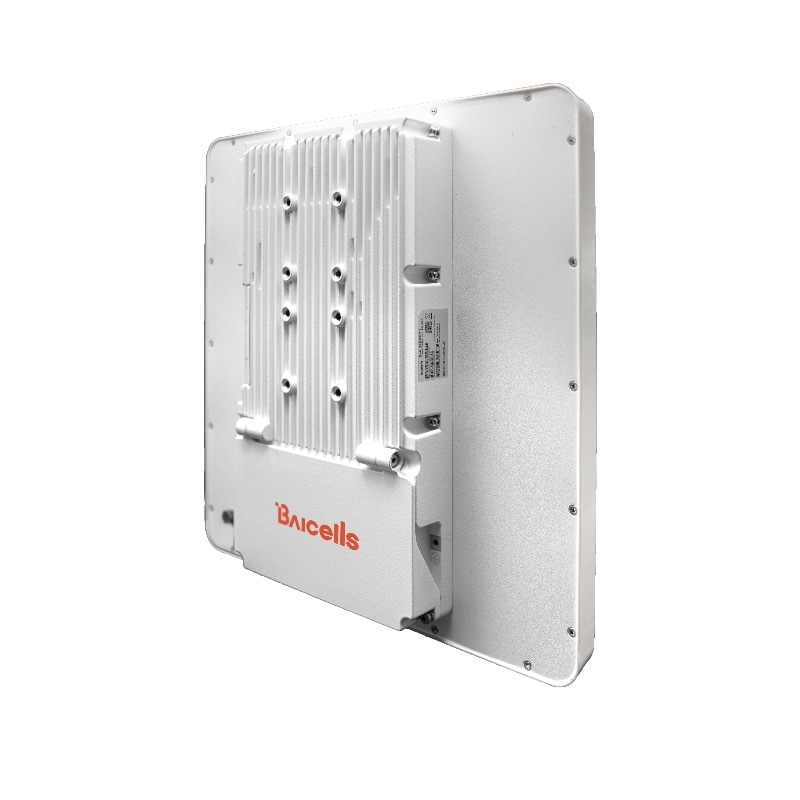

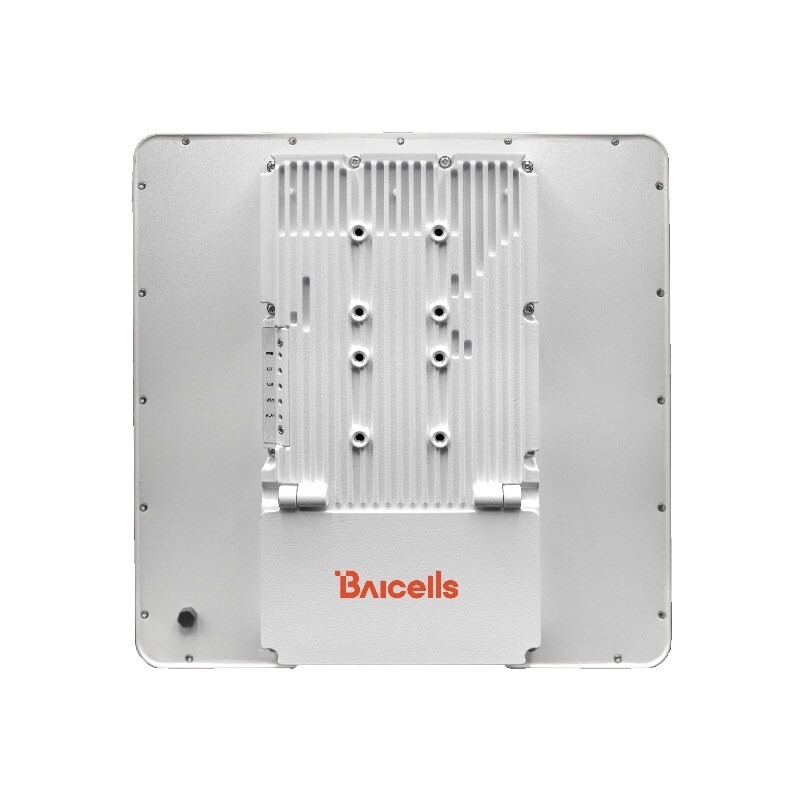

Baicells Atom OD15 Outdoor CPE, CAT15
- SKU: EG8015G-M11
$94.75 $379.00
- Manufacturer: Baicells
- Data Sheet: Download
Product Information
The Baicells Atom OD15/OD15 EUD Outdoor High-Gain CPE provides superior performance to bring broadband data and voice services to end-users. It operates on standard LTE TDD, supports multiple bands, and complies with 3GPP Release 12 CAT15 standards.
The Atom OD15 is available in two variants: The Atom OD15, which requires SAS connectivity and CPI certification, and the Atom OD15 EUD, which does not require SAS connectivity or CPI certification.
Product Features- Supports LTE TDD Bands 38/40/41/42/43/48
- Complies with 3GPP Release 12 CAT15 standards
- 1000Mbps Ethernet interface
- Peak data rate of up to 580Mbps DL and 30 Mbps UL @ 20MHz (2:7) in a controlled environment
- Supports MCS DL QPSK/16 QAM/64 QAM/256 QAM and UL QPSK/16 QAM/64 QAM
- Built-in LTE directional antenna, 4x4 MIMO
- Power supply with PoE
- GUI-based local and remote Web management
- Baicells Atom OD15 Outdoor CPE, CAT15
Specifications
Specifications EG8015G-M11
| LTE Standard | 3GPP Release 12, CAT15 |
| ETH LAN Port | 1 RJ-45, LAN,10/100/1000 autosensing, auto-MDX, PoE |
| LED Indicators | PWR, RUN, LTE Signal |
| USIM | 1.8V/3V 2FF |
| Reset Button | Press for 10 seconds to restore the CPE to its factory settings |
| Power Supply | Input: Universal range 100V-240V AC Output: PoE (24VDC, 0.5A) |
| Dimensions (HxWxD) | 375 x 375 x 70 millimeters (TBD) |
| Weight | 2500 g (TBD) |
| RF SPEC | |
| LTE Mode | TDD |
| Channel Bandwidth | 5/10/15/20 MHz |
| Frequency Bands | 42/43/48 and customized |
| Carrier Aggregation | DL 2x2 MIMO: 2CC/3CC/4CC CA DL 4x4 MIMO: 2CC CA UL: 2CC CA |
| MAX Output Power | 23 ± 2dBm |
| Peak Rate | (up to) Using 2:7 configuration, 20 MHz bandwidth DL 550 Mbps UL 30 Mbps |
| Modulation | DL: QPSK, 16QAM, 64QAM, 256QAM UL: QPSK, 16QAM, 64QAM |
| Receive Sensitivity | ≤ 94 dBm @ QPSK, 20 MHz, 25°C |
| Antenna Type | Internal directional, 4x4 MIMO |
| Antenna Gain | 18 dBi |
| Antenna Polarization | ±45° |
| Antenna Efficiency | > 70% |
| SOFTWARE | |
| Network Mode | NAT, Bridge, Router, Tunnel |
| IP Protocol | IPv4/IPv6 |
| SIM | PIN management, SIM lock |
| Network Connection | Auto or Manual |
| LTE Scan Mode | Full band scan, frequency lock |
| VPN | L2TP L2/L3, GRE L2/L3, PPTP, IPSec |
| NAT Port | forward/trigger, DMZ, ALG |
| Firewall | IP/MAC/URL filter; access control; block port scanner/SYN flood; SPI filter |
| Network Mgmt | TR069, SNMP |
| Diagnostics | TCP dump, ping, traceroute |
| Statistics | LTE status; connection/system up time; device status; DHCP client list; Wi-Fi station list; firewall status |
| Maintenance | Date and time setting; reboot; restore factory settings; restore/back up configuration file; firmware upgrade locally or OTA |
| System Logs | Operating; run-time; filter/ select / display / export |
| ENVIRONMENTAL | |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |
| Operating Humidity | 5% to 95% |
| Ingress Protection Rating | IP67 |
