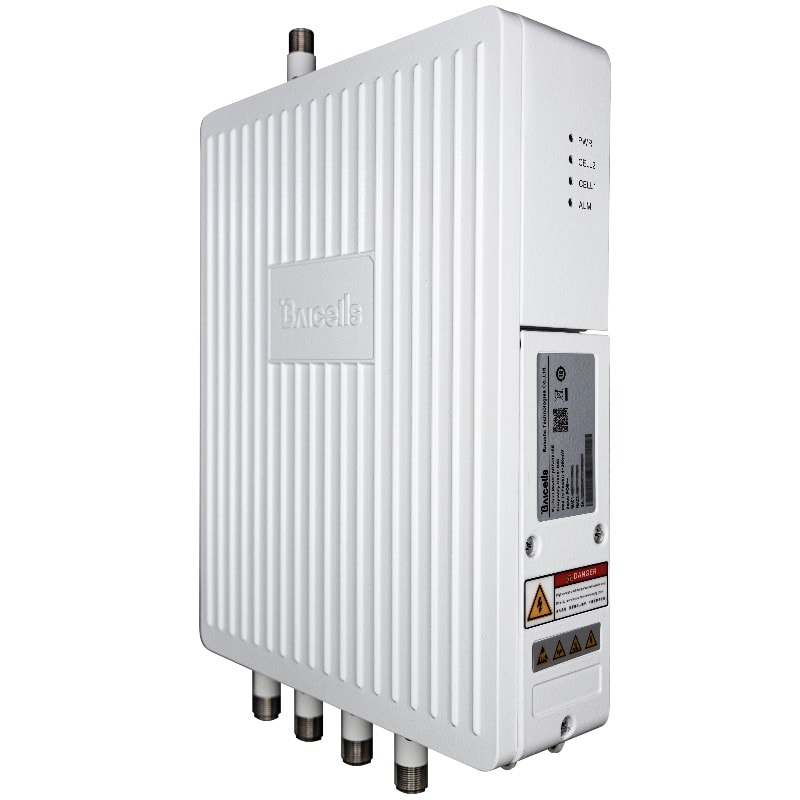

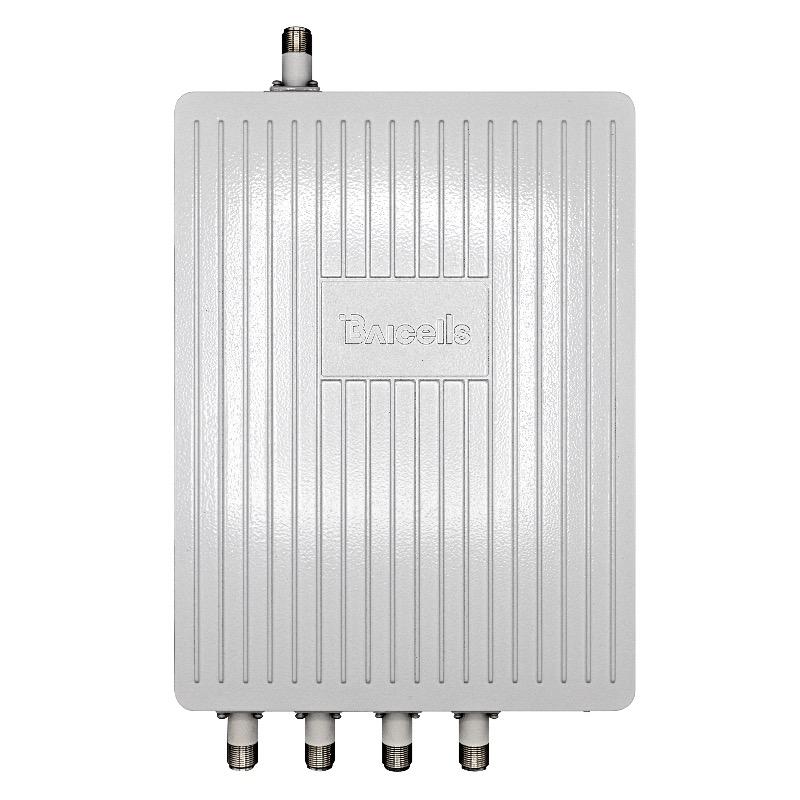

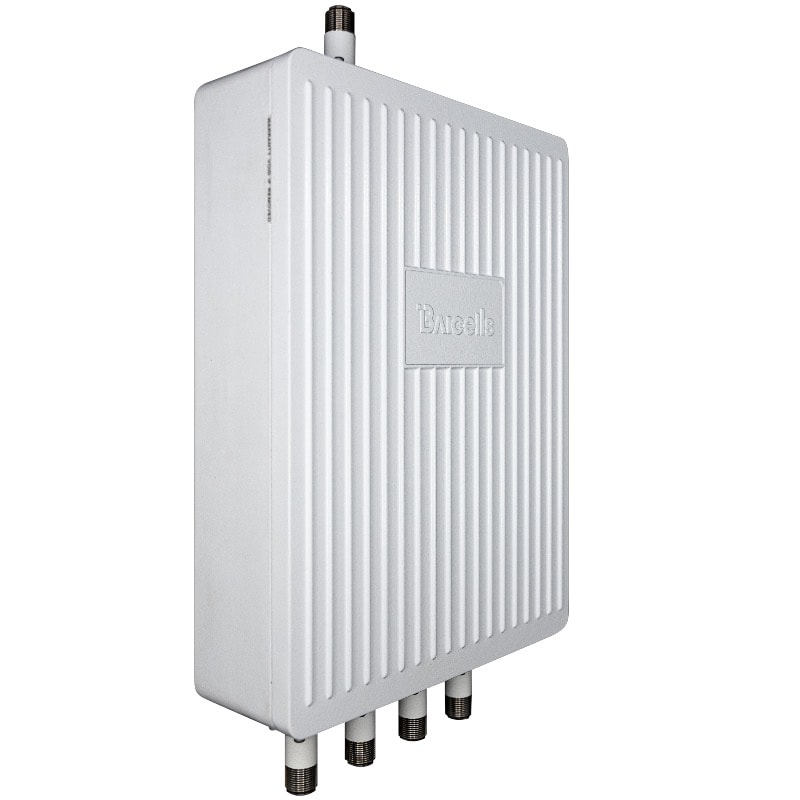

Baicells Nova430 Outdoor TDD LTE eNodeB
- SKU: pBS3101SE
Product Information
The Baicells Nova430/430i is an advanced two-carrier outdoor eNodeB (eNB) compliant with 3GPP LTE TDD technology. This 4x250mW eNB can operate in Carrier Aggregation (CA) or Dual Carrier (DC)/split mode.
The Baicells Nova430 has one 4-port or two 2-port external antennas
In CA mode, contiguous or non-contiguous channels are aggregated to provide up to 40 MHz bandwidth. This doubles the downlink capacity when CA mode is used with all Cat6/7 or higher user equipment.
In DC mode, each carrier is treated as an independent cell, supporting 96+96 users, with each supporting 5, 10, 15, or 20 MHz bandwidth. Using a Nova430/430i in DC mode simplifies and streamlines the deployment of split sectors.
In addition to CA and DC mode options, HaloB (an embedded MME option) is available on the Nova430/430i as part of the base software. The Baicells patented HaloB solution migrates the necessary core network functions to the eNB.
This product comes with a standard warranty; an extended one is available.
Product Features- Standard LTE TDD Bands 48 and partial 42, 43
- GUI-based local and remote Web management
- Suitable for private and public deployments; any IP-based backhaul can be used, including public transmission protected by Internet Protocol Security (IPSec)
- Excellent non-line-of-sight (NLOS) coverage
- Aggregate peak rate: (up to) DL 220 Mbps, UL 28 Mbps with 2x20 MHz, using all Cat6/7 or higher CPEs/UEs
- 96 concurrent users per carrier, 96+96 in DC mode
- Built-in 4-port antenna
- Integrated small cell form factor for quick and easy installation
- Configured out of the box to work with Baicells CloudCore
- Embedded HaloB (lite EPC) solution
- Supports Citizens Broadband Radio Service (CBRS)
- Plug-and-play with self-organizing network (SON) capabilities
- IoT with all standard LTE Evolved Packet Core (EPC)
- TR-069 network management interface support
- Lower power consumption, which reduces OPEX, can be powered easily by Baicells compact outdoor UPS
Specifications
Specifications pBS3101SE
| Standard | LTE TDD RAN (3GPP Release 15 compliant) |
| TDD UL/DL Configuration | 1, 2, 6 (with Special Subframe Configuration 7) |
| Frequency Band | B48 (3550 MHz–3700 MHz) |
| Channel Bandwidth | SC: 5/10/15/20 MHz CA: 40 MHz as maximum aggregated bandwidth |
| Multiplexing | MIMO: 2x2 (DL) |
| Security | Radio: SNOW 3G/AES-128 Backhaul: IPsec (X.509 AES-128, AES-256, SHA-128, SHA-256) |
| INTERFACE | |
| Ethernet Interface | 1 RJ-45 Ethernet interface (1 FE/GE) |
| Power Supply | PoE++ (IEEE 802.3bt compliant) |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, SSH, IPsec, TR-069, HTTP/HTTPs, 1588v2, DHCP |
| Network Management | IPv4/IPv6, HTTP/HTTPs, SNMPv2c, TR-069, SSH, Embedded EPC |
| VLAN/VxLAN | 802.IQ/VxLAN |

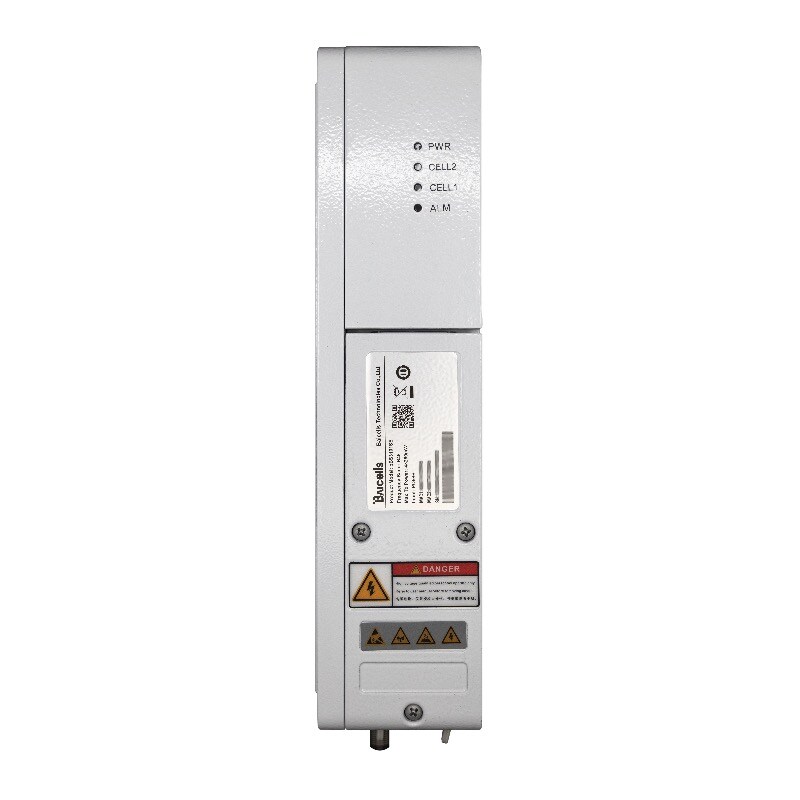

| LED Indicators | 4 x status LED CELL1/CELL2/ALM/PWR |
| PERFORMANCE | |
| Peak Data Rate (DC) | 2x20 MHz |
| User Capacity | Up to 128 RRC connected users per cell (4 users per TTI) • SC/CA: 128 RRC connected users • DC: 128 +128 RRC connected users |
| Maximum Deployment Range | 5 kilometers |
| Latency | 30 milliseconds |
| Receive Sensitivity | -100 dBm (per channel) |
| Modulation | MCS0 (QPSK) to MCS27 (256 QAM) DL: QPSK, 16 QAM, 64 QAM, 256 QAM UL: QPSK, 16 QAM, 64 QAM |
| Transmit Power Range | 0 to 24 dBm per channel (combined +30 dBm, configurable) (1 dB interval) |
| Quality of Service | Nine-level priority indicated by QoS Class Identifiers (QCI) |
| ARQ/HARQ | Yes |
| Synchronization | GPS, 1588v2 |
| Voice | VoLTE* |
| NSA | Supported |
| SON | Self-Organizing Network • Automatic setup • Automatic Neighbor Relation (ANR) • PCI confliction detection |
| EPC | HaloB (Embedded EPC) |
| Traffic Offload | Local breakout |
| Layer 2 Support | Transparent Bridge Mode |
| Maintenance | • Local/Remote Web maintenance • Online status management • Performance statistics • Fault management • Local/Remote software upgrade • Logging • Connectivity diagnosis • Automatic start and configuration • Alarm reporting • User information tracing • Signaling trace |
| LINK BUDGET | LINK BUDGET |
| Antenna Connection | N-Type connector for external high-gain antenna |
| GPS Antenna | External GPS antenna, N-Type connector |
| Power Control | UL Open-loop/Closed-loop Power Control, DL Power Allocation (3GPP TS 36.213 compliant) |
| PHYSICAL | |
| Surge Suppression | Yes |
| Power Interface Lightning Protection | Differential mode: ±10 KA Common mode: ±20 KA |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| Ingress Protection Rating | IP65 |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -58°F to 149°F / -50°C to 65°C |
| Humidity | 5% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Power Consumption | Typical 20 W, maximum 25 W |
| Weight | With pre-installed bracket: 10.5 lb/4.75 kg Without bracket: 9.6 lb/4.35 kg |
| Dimensions (HxWxD) | With joint: • 15.0 x 8.9 x 3.0 inches • 381 x 227 x 75 millimeters Without joint and handle: • 12.2 x 8.9 x 3.0 inches • 311 x 227 x 75 millimeters |
| Installation | Pole or wall mount |
