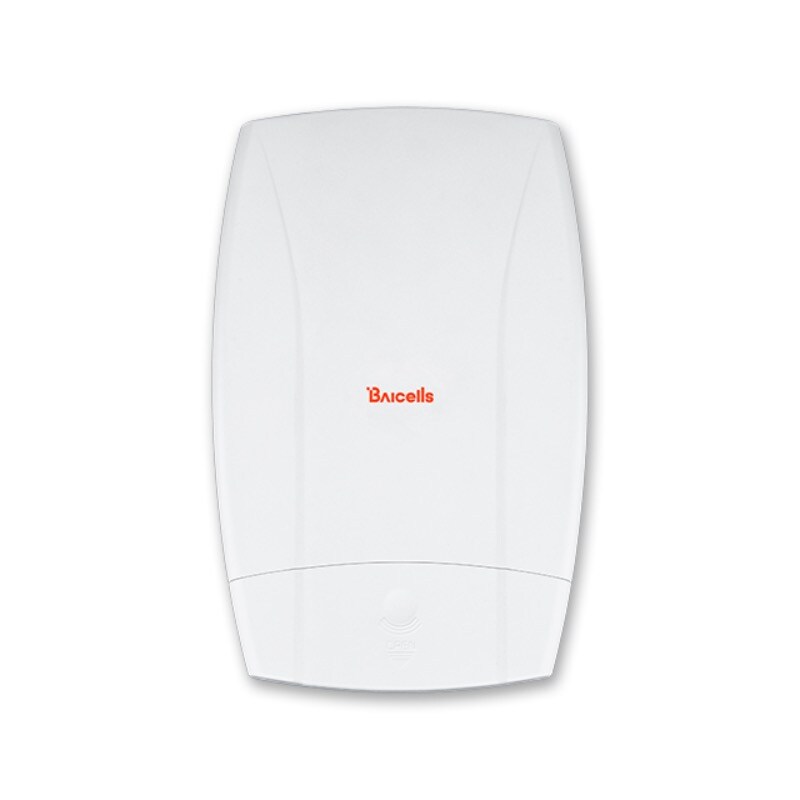

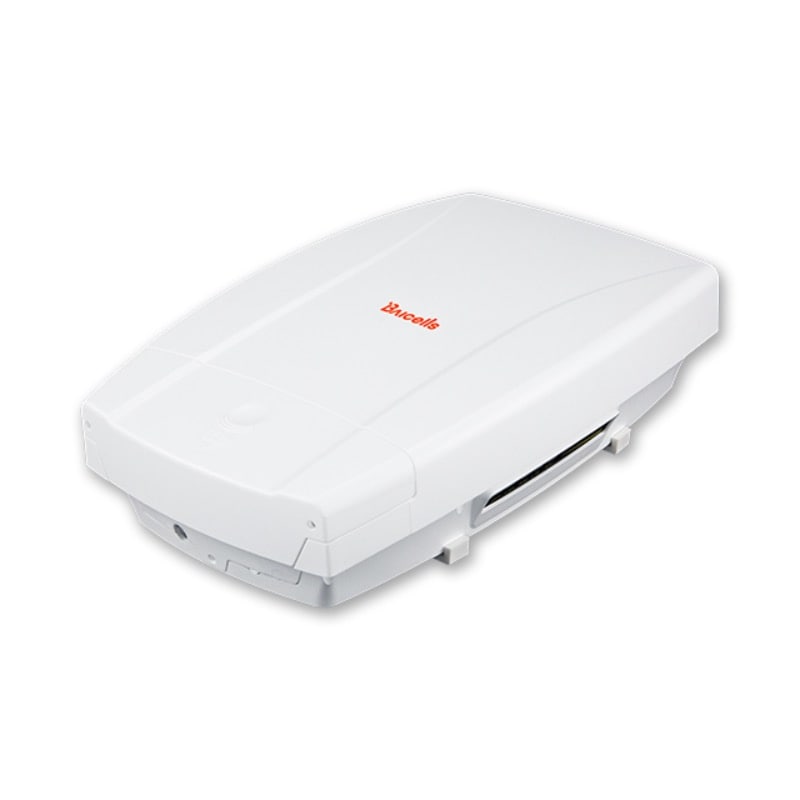

Baicells OD04-14 Outdoor CPE, 3.5 GHz
- SKU: EG7035L-M11
$54.75 $219.00
- Manufacturer: Baicells
- Data Sheet: Download
Product Information
The Baicells Atom OD04 Outdoor High-Gain User Equipment (UE) provides superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and voice services to end-users. The UE operates with standardized LongTerm Evolution (LTE) Time Division Duplexing (TDD) to enable high-speed, wireless communcations. Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the UE simultaneously. The product comes with a standard one-year warranty.
Product Features- Supports LTE TDD Bands 40/41/42/43/48
- 2.5 GHz or 3.5 GHz models
- Complies with 3GPP Release 9 Cat4 standards
- 100 Mbps Ethernet interface
- GUI-based local and remote Web management
- TR069 network management protocol support
- Cell lock, SIM lock, and pin lock
- Built-in bipolar, directional, high-gain LTE antenna
- User-friendly LED status indicators
- Power supply with PoE
- Pole or wall mount
- Wi-Fi assisted alignment
- Baicells OD04-14 Outdoor CPE, 3.5 GHz
Specifications
Specifications EG7035L-M11
| Basic Specifications | |
| LTE Standard | 3GPP Release 9, CAT4 |
| Ethernet LAN Port | One RJ-45 port 10/100 auto-sensing, auto-MDX, PoE |
| LED Indicators | MIU/LTE/SIM/LAN/PWR/LTE Signal |
| USIM | 1.8V/3V 2FF |
| Restore Button | Press for 10 seconds to restore the UE to its factory settings |
| Power Supply | Input: Universal range 100V~240V AC Output: PoE (24 VDC, 0.5A) |
| Dimensions | 9.5 x 6 x 2 inches 241 x 154 x 50 millimeters |
| Weight | About 2 lbs (900 g) |
| RF Specifications | |
| LTE Mode | TDD/FDD |
| Channel Bandwidth | 5 MHz / 10 MHz / 15 MHz / 20 MHz |
| MAX Output Power | 23 dBm (±2) |
| TXRX | 1T2R |
| Frequency Band | 40/41/42/43/48 and customized |
| Peak Rate | DL 100 Mbps, UL 10 Mbps (2:7) |
| Antenna Gain | 14 dBi @ 3.x GHz, 2 ports 11 dBi @ 2.x GHz, 2 ports |
| Modulation | DL: QPSK, 16QAM, 64QAM UL: QPSK, 16QAM |
| Receive Sensitivity | -94 dBm @ QPSK, 20 MHz, 25°C |
| Antenna Type | Internal directional |
| Polarization | ±45° |
| Antenna Efficiency | > 70% |
| Isolation | ≤ -25dB |
| VSWR | ≤ 2 |
| Horizontal Beamwidth (3 dB) | 63 ±3°@ 2.x GHz, 2 ports, 60 ±3°@ 3.x GHz, 2 ports |
| Vertical Beamwidth (3 dB) | 35 ±3°@ 2.x GHz, 2 ports, 25 ±5°@ 3.x GHz, 2 ports |
| SW Specifications | |
| Network Mode | NAT or Bridge |
| SIM | PIN management SIM lock |
| IP Protocol | IPv4 / IPv6 |
| Network Connection Management | Auto / manual |
| LTE Scan Mode | Full band scan, frequency lock |
| WLAN | WPS; MSSID isolation |
| VPN | L2TP, GRE, PPTP |
| NAT | Port forwarding, DMZ, ALG |
| Firewall | IP/MAC/URL filter; access control; block port scanner/SYN flood |
| Network Management | TR069 SNMP |
| Diagnostics | TCP dump, ping, traceroute |
| Statistics | LTE status; connection, connection/system up time; device status; DHCP client list; Wi-Fi station list; LTE status; firewall status |
| Maintenance | Data and time setting; reboot; restore factory settings; restore or back up configuration file; firmware upgrade locally or OTA |
| System Logs | Operating; run-time; filter / select / display / export |
| Environmental Specifications | |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |
| Operating Humidity | 5% ~ 95% |
| Ingress Protection Rating | IP65 |
| WIFI Specifications | |
| Standard | IEEE 802.11 b/g/n |
| Channel Bandwidth | 20/40 MHz |
| Frequency | 2.4 GHz |
| TXRX | 1T1R |
| Peak Rate | • 802.11b: 11 Mbps • 802.11g: 54 Mbps • 802.11n: 300 Mbps |
| Modulation | DSSS/CCK, OFDM |
| Receive Sensitivity | • -64 dBm @ 65 Mbps, typical for 802.11n • -65 dBm @ 54 Mbps, typical for 802.11g • -76 dBm @ 11 Mbps, typical for 802.11b |
| Max Output Power | 10 ±3dBm |
| Antenna Type | Internal omni |
| Antenna Gain | 0 dBi |
