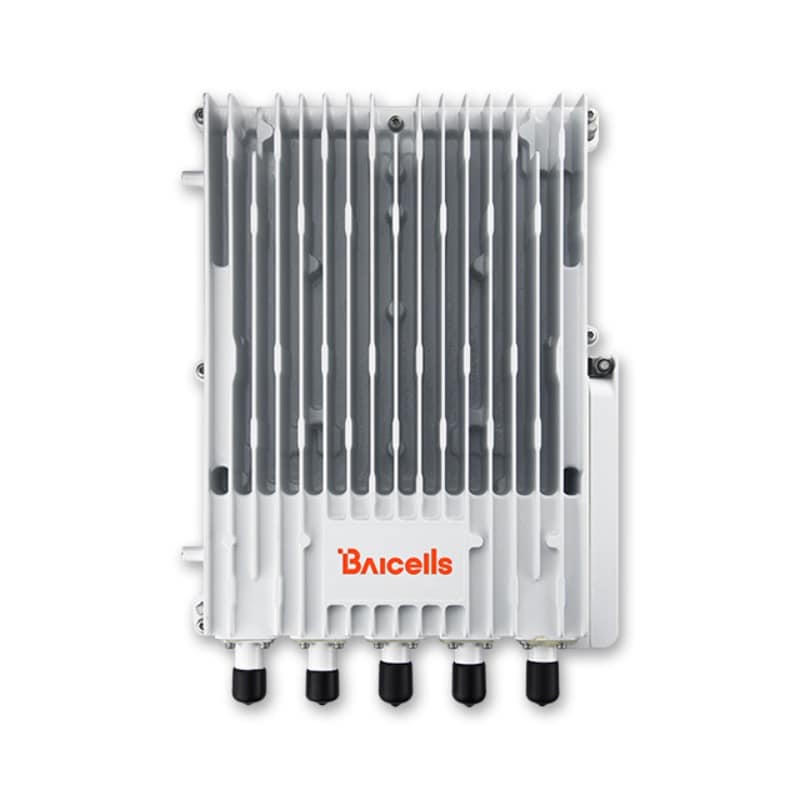

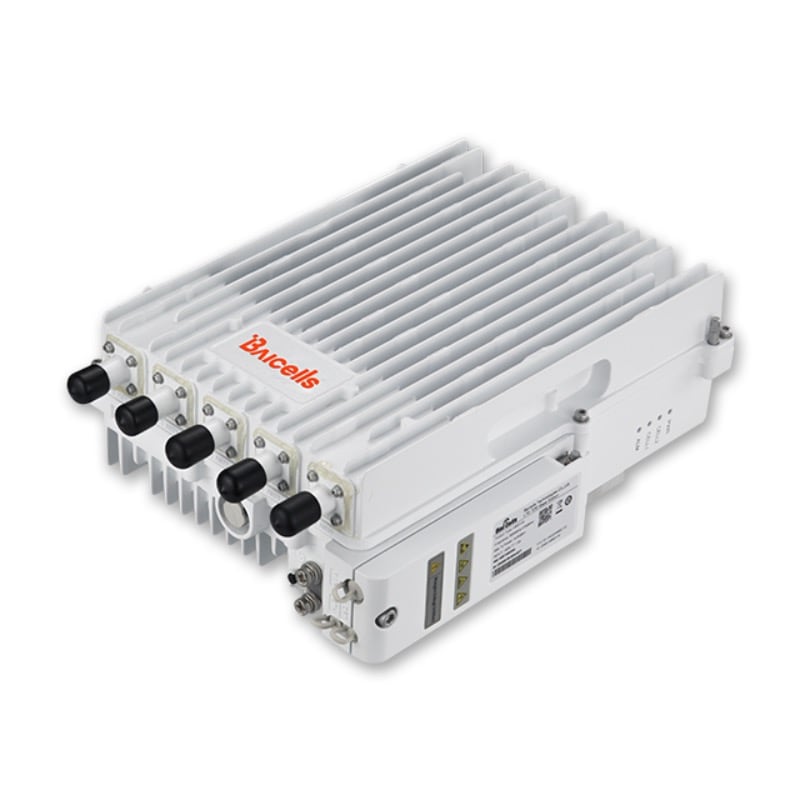

Baicells NOVA 436Q Outdoor Base Station
- SKU: mBS31001
Product Information
The Baicells Nova 436Q is the next generation of LTE base stations. This advanced radio allows for carrier aggregation, even across discontinuous channels, for maximum reach and capacity. Each carrier allows for 20 MHz of independent channel width, setting this radio apart from the competition and allowing for superior NLOS connectivity. Like all Baicells eNodeB, the 436Q is lightweight, low-power, and is designed to be plug-and-play.
The Baicells Nova436Q is an advanced two-carrier outdoor eNodeB (eNB) compliant with 3GPP LTE TDD technology. This versatile eNodeB can be configured as a 2x1W single carrier eNodeB, (2) 2x1Ws single carrier eNodeB (Dual Carrier / Split Sector), or a 4x1W Carrier Aggregation eNodeB. This allows the operator to grow a market with the same eNB as the market demands change.
The two-carrier Nova436Q eNB can operate in one of several modes:
- Single Carrier (SC)
- CA mode (based on software license)
- DC/split mode (based on software license)
- HaloB mode (embedded in the base software)
- Citizens Broadband Radio System (CBRS) Spectrum Access System (SAS)
Product Includes
- Baicells Nova 436Q Base Station
- Pole Bracket
- SFP Transceiver
- 6x Cold Shrink Tubes
- 3x M4*14 Screws
- GPS Antenna
- GPS Antenna Mounting Bracket
- GPS Guide
- OT Terminals
- Power Terminal
- Power Cord / Power Supply
Specifications
Specifications mBS31001
| HARDWARE SPEC | |
| LTE Mode | TDD |
| Frequency Bands | 42/43/48 |
| Channel Bandwidth | 5/10/15/20 MHz per carrier |
| Max Output Power | 30 dBm / antenna |
| Power Supply | +/- 48VDC, AC adaptor (multi-national standards) |
| Power Consumption | < 60W |
| Receive Sensitivity | -100 dBm |
| Synchronization | GPS |
| Interfaces | 1 optical (SFP) and 1 RJ-45 Ethernet interface (1 GE) |
| MIMO | DL: 2x2 on each carrier |
| Installation | Pole or wall mount |
| Antenna | External high-gain antenna (1) 4-port or (2) 2-port |
| Dimensions (HxWxD) | 12.2 x 9.4 x 4.1 inches 310 x 239 x 105 millimeters |
| Weight | 12.1 lbs / 5.5 kgs |
| SOFTWARE SPEC | |
| LTE Standard | 3GPP Release 13 |
| User Capacity | 32 concurrent Future: 64* and then 96+96* |
| QoS Control | 3GPP standard Quality of Service Class Identifier (QCI) |
| Modulation | DL: QPSK, 16QAM, 64QAM, 256QAM* UL: QPSK, 16QAM, 64QAM |
| Traffic Offload | Local IP Access (LIPA) Selected IP Traffic Offload (SIPTO) |
| Voice | VoLTE* |
| SON | Self-organizing network*: • Automatic setup • Automatic Neighbor Relation (ANR) • PCI confliction detection |
| RAN Sharing | Supported |
| Network Mgmt | TR069 |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| Maintenance | • Local/Remote Web maintenance • Online status management • Performance statistics • Fault management • Local/Remote software upgrade • Logging • Connectivity diagnosis • Automatic start and configuration • Alarm reporting • KPI recording • User information tracing • Signaling Trace* |
| ENVIRONMENTAL SPEC | |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -49°F to 158°F / -45°C to 70°C |
| Humidity | 5% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Ingress Protection Rating | IP66 |
| Power Interface Lightning Protection | Differential mode: ±10 KA Common mode: ±20 KA |
