Product Information
Cambium Networks designs outdoor wireless broadband solutions to operate in the toughest of environments. Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment especially when mounted as high as 300m.

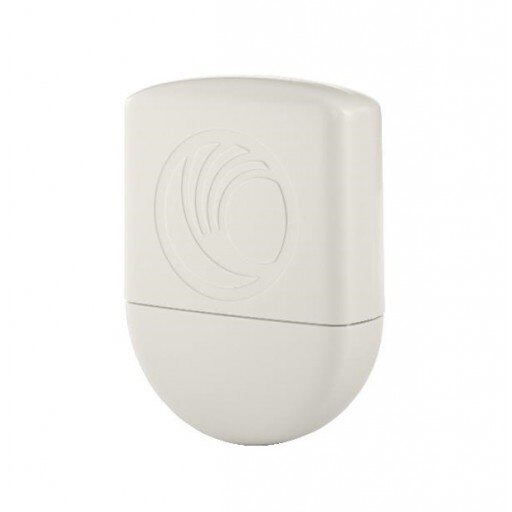

The Gigabit Ethernet Surge Suppressor is critical for lightning protection to minimize the potential for damage. It is compatible with the PMP 450i (Access Point and Subscriber Module), PTP 450i and PTP 820S. The unit is suitable for mounting to a wall or pole.
Product Features- 5 nanoseconds typical response time
- Pole or wall mountable
- 1000 Base T transfer rate
- (2) RJ-45 connectors
- 172A, 10/1000us surge current
Specifications
Specifications C000000L033A
| Environmental | IP55 |
| Connectors | 2 x RJ-45 1000 Base T |
| Power | 56V DC nominal |
| Protection Mode | Line to Line and Line to Ground |
| Operating Temperature | -40 to 140deg F (-40 to 60deg C) |
| Mounting | Pole or wall-mount |
| Surge Arrestor | TVS Diodes (Transient Voltage Suppression for longer operational life) |
| Surge Current Rating, L-G, Total | 172A, 10/1000us |
| Response Time | 5 nanoseconds typical |
| Dimensions | 4.6 in. x 3.4 in. x 1.8 in.(118mm x 87.5mm x 46.5mm) |
| Weight | 0.34 lbs (156 gm) |
| Wind Survival | 200 mph (321 km/hour) |
| Operating Temperature | -40° F (-40° C) to +140° F (+60° C) |
| Humidty | 100% condensing |
| Environment Protection | IP54 (Dust and Water Intrusion Protection) |
