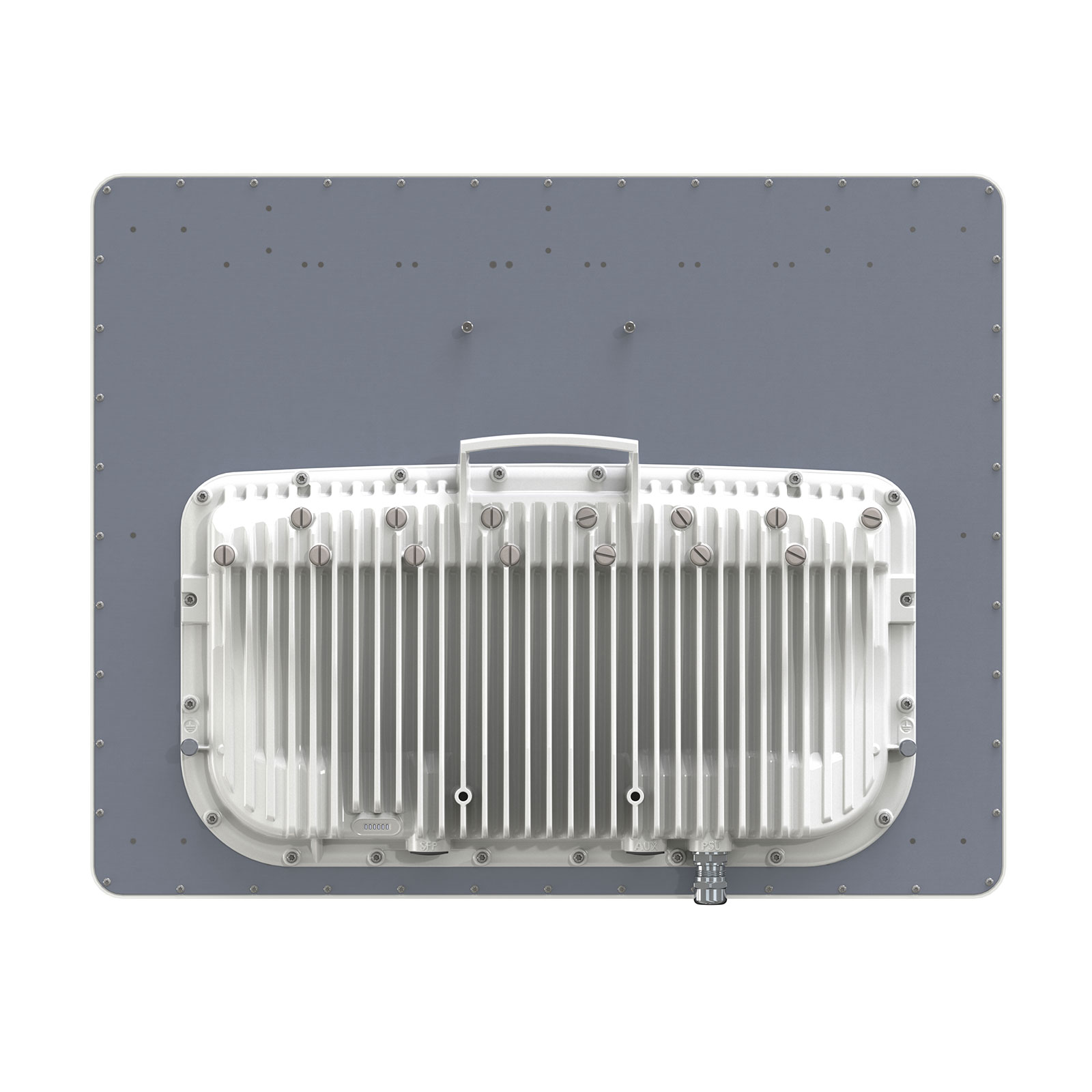

Cambium Networks PMP 450m 3GHz Integrated Access Point
- SKU: C030045A101A
- Manufacturer: Cambium Networks
- Cambium Networks 3GHz PMP 450m Access Point Datasheet: Download
Product Information
Cambium Networks industry-leading 450 platform adds Massive Multi-User MIMO capability with cnMedusa technology.
With throughput of over 450Mbps in a 20MHz channel; and more than 800Mbps in a 40 MHz channel, the 3GHz PMP 450m Access Point also features smart beamforming to reduce interference.
Product Features- cnMedusa technology enhances sector capacity by combining a smart beamforming antenna array with multiple RF transmit and receive chains, effectively multiplying available capacity by more than three times.
- SFP port allows for greater deployment flexibility, and AUX port allows for connection of camera or other PoE directly
- The Limited Version can reduce capital investment until additional capacity is actually required. A 30-day trial of MU-MIMO operation is included, and a simple license key can permanently enable MU-MIMO operation when needed.
- 90° integrated sector (dual polarity, H+V, 3dB rolloff), 120° (6dB rolloff)
- 2° Electrical Downtilt, 8° Elevation Beamwidth and Null Fill down to −30°
- Power Consumption: 140W typical, 150W peak (up to 180W max with AUX port PoE enabled)
Specifications
| Interface | ||
MAC (Media Access Control) Layer | Cambium Networks proprietary | |
Physical Layer | 8 x 8 Multi-User MIMO OFDM | |
Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant), SFP support for 1Gbps optical | |
Protocols Used | IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP | |
Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro | |
VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID | |
| Security | ||
Encryption | FIPS-197 128-bit AES, 256-bit AES (Requires Optional License for attached Access Point) | |
| Performance | ||
Subscribers Per Sector | Up to 238 | |
ARQ | Yes | |
Modulation Levels (Adaptive) | MCS | Signal to Noise Required (SNR, in dB) |
2x | QPSK | 10 |
4x | 16QAM | 17 |
6x | 64QAM | 24 |
8x | 256QAM | 32 |
Ultimate Sensitivity | −94dBm | |
Maximum Deployment Range | Up to 64km (40 miles) | |
Latency | 10ms, typical | |
GPS Synchronization | Yes, via Autosync (CMM5 or UGPS) | |
Quality of Service | Diffserve QoS | |
| Physical | ||
Antenna Connection | Integrated Sector Array | |
Surge Suppression (with LPU) | MAIN and AUX ports: EN61000-4-5: 10/700us, 4 kV voltage waveform, Recommended external surge suppressor: Model # C000065L007B DC IN port: EN61000-4-5: 10/700us, 4 kV voltage waveform, Recommended external surge suppressor: Model # C000000L114A | |
Mean Time Between Failure | > 40 years | |
Environmental | IP67, IP66 | |
Temperature / Humidity | −40°C to 60°C (−40°F to 140°F), 100% non-condensing | |
Weight | Without Mounting Brackets: 20.4kg (45lbs) With Mounting Brackets: 22.6kg (49.8lbs) | |
Wind Survival | 200kph (124mph) | |
Wind Loading - Front Facing | @144kph / 90mph: 613 N | |
@177kph / 110mph: 927 N | ||
@200kph / 124mph: 1183 N | ||
Dimensions (Diameter x Depth) | 69cm x 61cm x 17.5cm (27.2in x 24in x 7in) | |
Power Consumption | 140W typical, 150W peak (up to 180W max with AUX port PoE enabled) | |
Input Voltage | 40 - 60 VDC | |
Mounting | Pole mount with included brackets (1.25in to 4in pole diameter) | |
