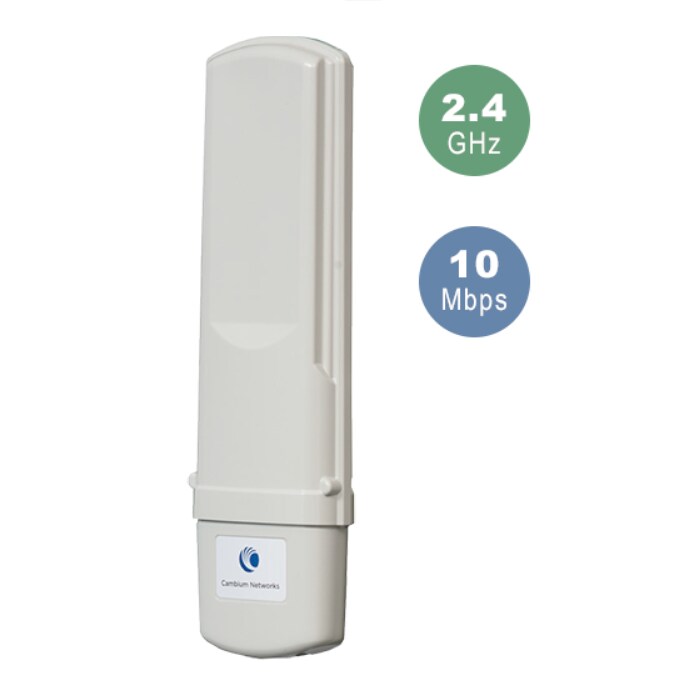

Cambium Networks PMP 450 2.4GHz Subscriber Module 10Mbps
- SKU: C024045C002A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
ISP Supplies supplies the Cambium Networks 2.4 GHz PMP 450 Subscriber Module (SM), containing 10 Mbps throughput. The Cambium Networks PMP 450 is our industry-leading wireless access network platform.
Our solution is ideal for industry verticals such as WISPs (Wireless Service Providers), Enterprises and the Government Public Safety Sector. Designed for fixed outdoor applications, the PMP 450 platform is optimized for rate, reach, reliability and throughput. It features the most resilient and effective set of wireless broadband technologies in the marketplace.
Now available in most popular global bands, 2.4, 3.5, 3.65 and 5 GHz, the Cambium Networks Point-to-Multipoint (PMP) 450 Subscriber Module (SM) supports tiered service models. Software defined upgrades allow throughput from 4 Mbps to over 100 Mbps and as a result improve revenue optimization.
From the innovative GPS Synchronization options to interoperability with existing portfolio modules, the PMP 450 provides flexible deployment options that make it an excellent fit for high capacity, high reliability networks.
Specifications
Specifications C024045C002A
| Channel Spacing | Configurable on 2.5 MHz increments |
| Frequency Range | 2400 - 2483.5 MHz |
| Channel Width | 5 MHz, 10 MHz or 20 MHz |
| Physical Layer | 2x2 MIMO OFDM |

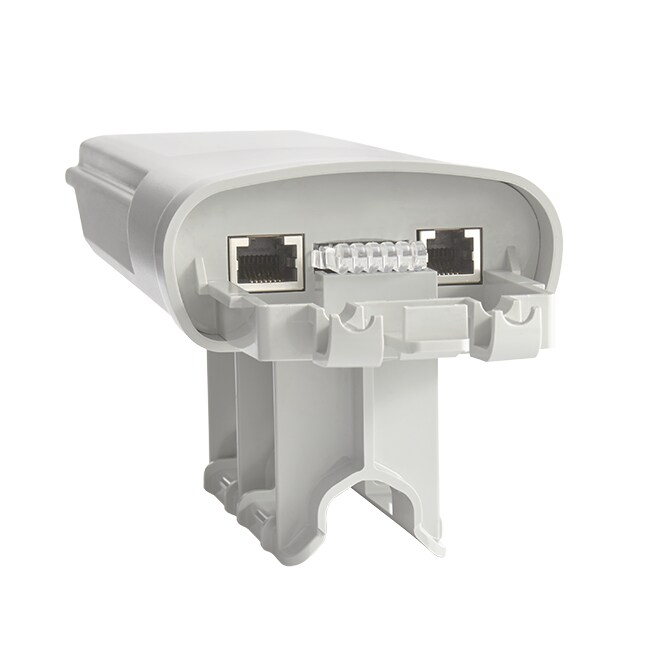

| Ethernet Interface | 10/100BaseT, half/full duplex, rate auto negotiated (802.3 compliant) |
| Latency | 3 - 5 ms |
| Antenna Beamwidth | 55° azimuth, 55° elevation (both H&V) |
| Transmit Power | -30 to +22 dBm (combined, to EIRP limit by region) (1 dB interval) |
| Antenna Gain | 8 dBi Dual Slant, integrated patch |
| Max. Transmit Power | 22 dBm combined |
| Reflector Gain | +14 dBi |
| Antenna Connection | Integrated patch antenna |
| Environmental | IP55 |
| Temperature | -40°F to 131°F (-40°C to 55°C) |
| Weight | 1 lb (0.45kg) |
| Wind Survival | 118 mph (190 km/hour) |
| Dimensions | 11.75" x 3.4" x 3.4" (30 x 9 x 9cm) |
| Max. Power Consumption | 12W |
| Input Voltage | 24 to 30V |
