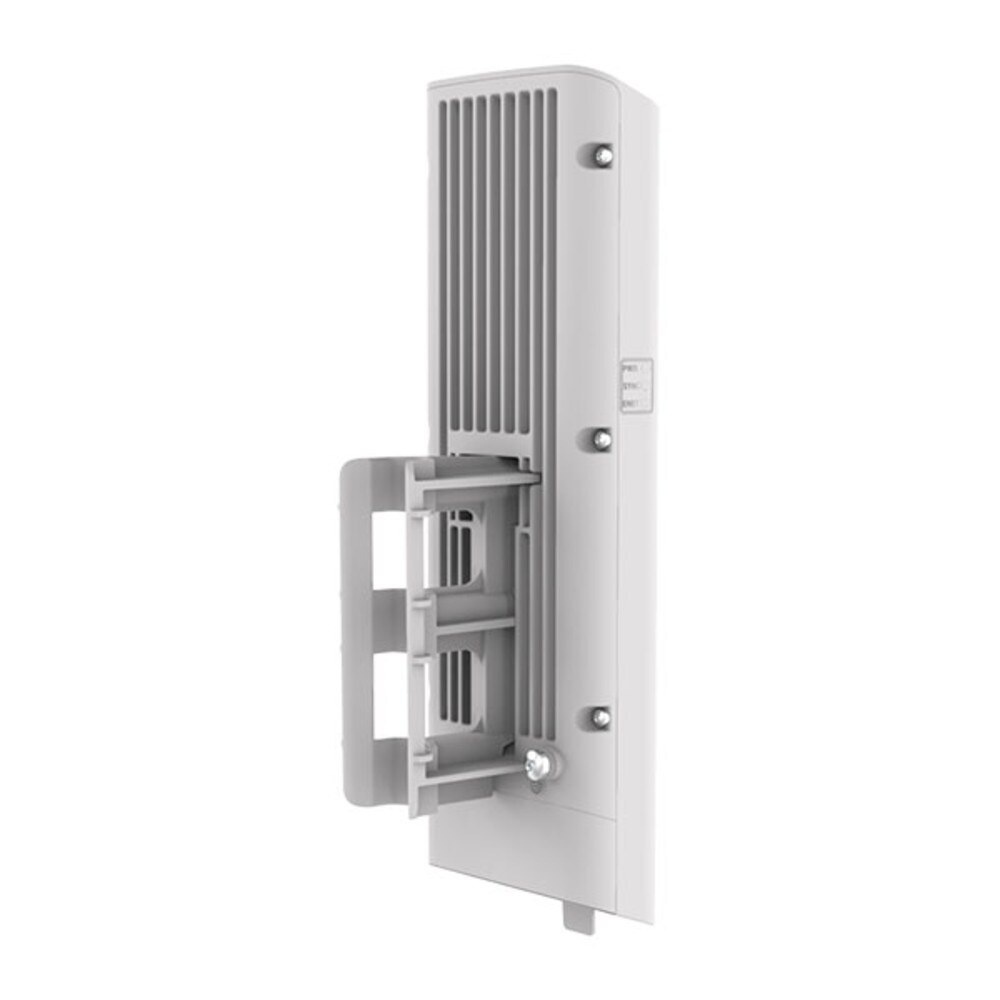

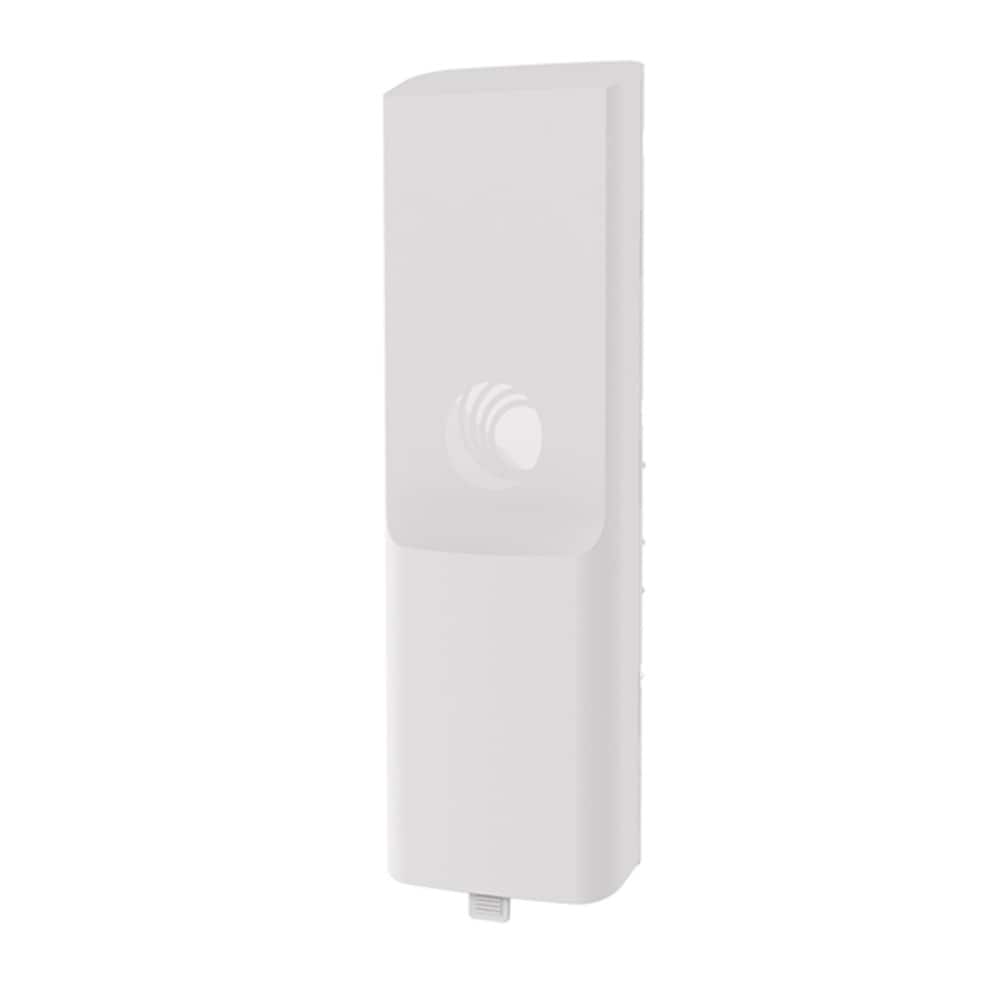

Cambium Networks 5GHz 450b Retro (FCC)
- SKU: C050045B102A
$378.78
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
The Cambium Networks 5GHz 450b Retro can function as a Point to Point link or as a Subscriber Module. It is capable of up to 300Mbps aggregate in a 40MHz channel and functions in the 4.9GHz to 5.925GHz frequency range.
Product Features- Gigabit Ethernet Interface provides the maximum transfer rates to the device
- 3.5mm audio jack allows direct connection of headphones without any adapters
- New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the 450 SM
- Integrated Antenna Gain: 9dBi
- Physical Layer Interface: 2x2 MIMO OFDM
- Frequency Range: 4900MHz - 5925MHz
Specifications
Specifications C050045B102A
| Interface | |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000 BaseT, full duplex, rate auto negotiated, 802.3 compliant |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM |
| MTU | 1700 bytes |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Security | |
| Encryption | FIPS-197 128-bit AES, 256-bit AES (Requires Optional License for attached Access Point) |
| Performance | |
| PPS | 50,000 |
| ARQ | Yes |
| Ultimate Sensitivity | -94 dBm |
| Maximum Deployment Range | Up to 40 miles (64 km) in PMP mode, up to 124 miles (200 km) in PTP mode |
| Latency | 3 - 5 ms, typical |
| GPS Synchronization | Yes, synchronized by Access Point or via 3.5mm port using cnPulse (for PTP mode) |
| Quality of Service | Diffserve QoS |
| Physical | |
| Integrated Antenna Gain | 9 dBi |
| Azimuth (3 dB rolloff) | 45º |
| Elevation (3 dB rolloff) | 45º |
| VSWR (MAX) | 2:1 |
| Antenna Accessories | Optional Offset Reflector dish: HK2022A - 4-pack -- Enables total gain of 24 dBi |
| Surge Suppression | EN 61000-4-5: 10x700 μs, 4 kV, EN 61000-4-2: ESD 30 kV contact / 30 kV air |
| Mean Time Between Failure | >40 Years |
| Environmental | IP55 |
| Temperature / Humidity | -40°C to 60°C (-40°F to 140°F), 0-95% non-condensing |
| Weight | 0.4 kg (1 lb) (includes mounting bracket) |
| Wind Survival | 200 kph (124 mph) |
| Dimensions (HxWxD) | 28.6 cm x 8.9 cm x 8.9 cm (11.25 in x 3.5 in x 3.5 in) |
| Pole Diameter Range (w/ included mount) | 1 in to 3 in pole diameter |
| Power Consumption | 9 W typical, 12 W peak |
| Input Voltage | 24-30 VDC, Canopy-style PoE |
| Link Budget | |
| Transmit Power Range | 57 dB dynamic range (to EIRP limit by region) (1 dB step) |
| Maximum Transmit Power | +27 dBm (MIMO, combined V+H) (+22 dBm @ 256QAM) |
| Power Control | ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC |
| Certifications | |
| ISED Canada | 109W-0042 |
| FCC ID | Z8H89FT0042 EN 301 893 v2.1.1 EN 302 502 v2.1.1 |
