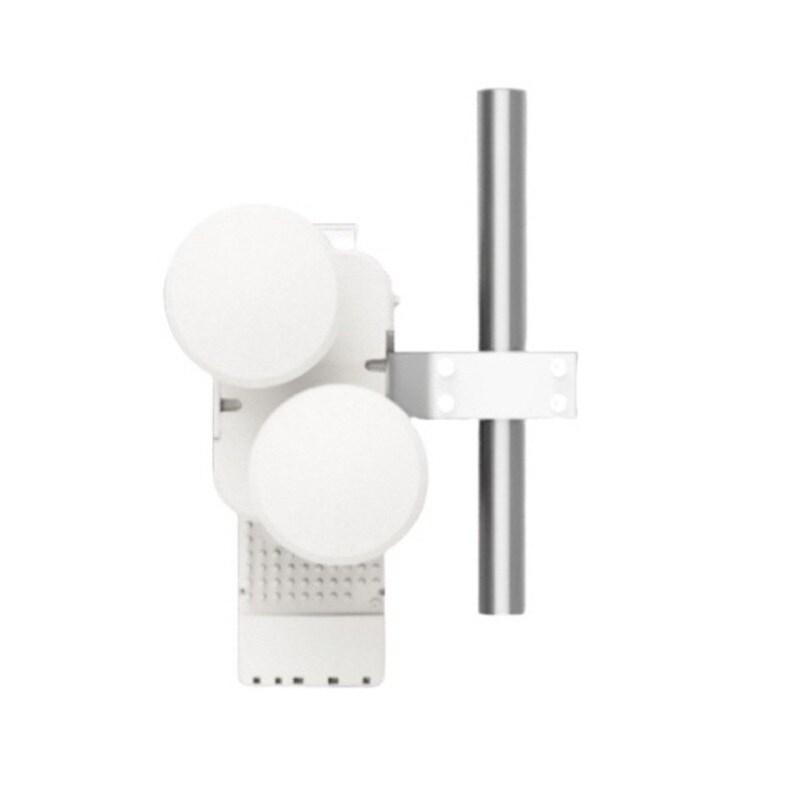

Cambium Networks ePMP 3000 Dual Horn MU-MIMO Antenna 5GHz 60deg
- SKU: C050900D025A-T
$299.00
+ $13.46 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
The Cambium Networks ePMP 3000 Dual Horn MU-MIMO antenna works across the 5GHz spectrum, while providing 60 degree coverage.
Key Deployment Advantages:- MU-MIMO Performance in a Horn antenna pattern: optimized for use with the 4x4 MU-MIMO ePMP 3000 Access Point with a high gain and small side lobes
- Channel Flexibility: consistent gain from 5.1 to 6.1 GHz allows the operator to select a channel anywhere in band to achieve the expected performance
- Predictable Performance: integrated into Cambium Networks LINK Planner with a precise 3D model showing gain across all elevations and across the azimuth.
- Designed for the Installer: Small Form-Factor and Convenient mounting for ease of deployment in tower as well as small-cell applications
- 12dBi gain
- MU-MIMO Performance in Horn Antenna pattern
- 5.1 to 6.1GHz spectrum
- 28dBi front to back ratio
- Dual Horn MU-MIMO Antenna assembly
- Pole-mount bracket
- Four Cables for connecting antenna to the ePMP 3000 AP (RP-SMA to RP-SMA)
Specifications
Specifications C050900D025A
| What’s Included | Dual Horn MU-MIMO Antenna assembly Pole-mount bracket Four Cables for connecting antenna to the ePMP 3000 AP (RP-SMA to RP-SMA) |
| Frequency Range | 5.1 GHz to 6.1 GHz |
| Gain | 12 dBi |
| 6 dB Beamwidth - Azimuth | 60 degrees |
| Polarization | 2X Horizontal, 2X Vertical |
| Port-to-Port Isolation | > 15 dB |
| Front-to-Back Ratio | 28 dB |
| Maximum Input Power | 5 W |
| Input Impedance | 50 ohms |
| Mounting Connectors | 4 x RP SMA |
| Mounting Hardware | Included for mounting to mast diameters 1.25” to 3.0” (30-75 mm) Hardware included to connect ePMP access point to back of antenna body |
| Physical Dimensions | Antenna Body: 12” (H) x 8.5” (W) x 9.1” (D) (305 mm x 215 mm x 231 mm) As mounted with ePMP 3000 Access Point: 17.5” (H) x 14” (W) x 9.1” (D) (445 mm x 356 mm x 231 mm) |
| Weight | Antenna body with bracket: 9.4 lbs. (4.2 kg) As mounted with ePMP 3000 AP: 12.1 lbs. (5.5 kg) |
| Environmental | IP55 |
| Radome Material | UV Protected ABS |
| Operating Temp | -40C to 60C (-40F to 140F) |
