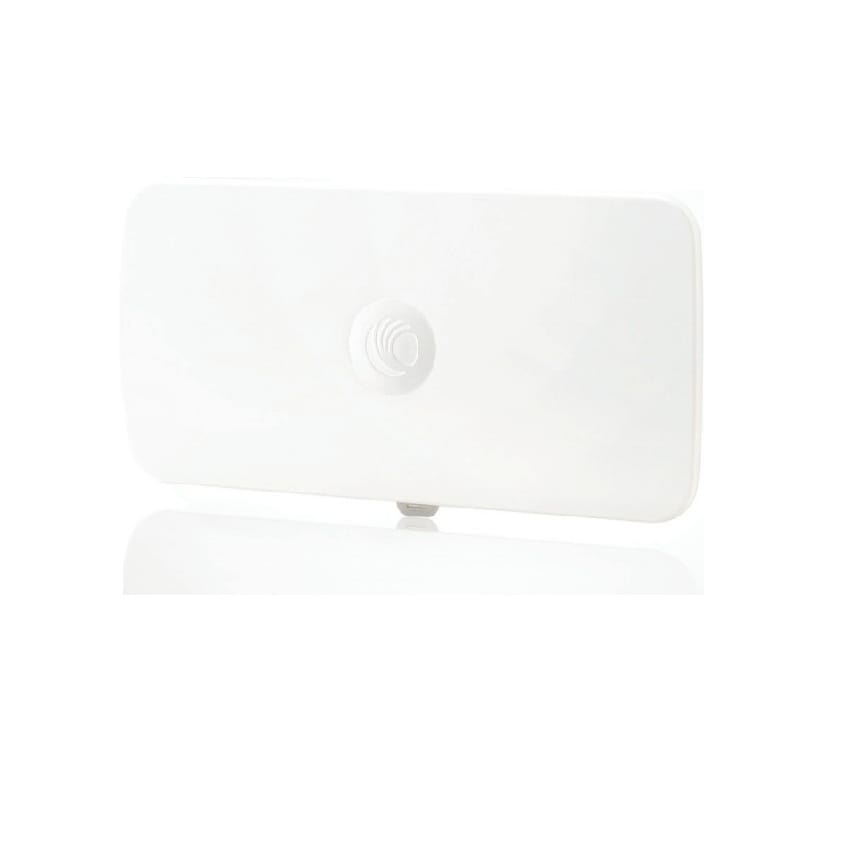

Cambium Networks ePMP 5GHz Force 300-16 Radio (IC)
- SKU: C050910C114A
$219.63
- Manufacturer: Cambium Networks
- Cambium Networks ePMP Force 300 Series Datasheet: Download
Product Information
Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The Force 300 series of subscriber modules (SM) meets this demand offering high performance and low latency across both point-to-multipoint and point-to-point deployments.
Product Features- Up to 600 Mbps capacity and latencies as low as 2 ms when using ePTP technology
- Proven air interface on top of 802.11ac Wave 2 technology
- Interoperability with the 3000, which uses MU-MIMO to achieve 1.2 Gbps per sector by transmitting to two Force 300 SM’s simultaneously
- Interoperability with 3000L, MP 3000 MicroPOP and backward compatibility with the 2000 and 1000
- Multiple levels of QoS (Quality of Service) for voice, video and data applications supporting a wide variety of service packages for both residential and enterprise users
- Security features meeting the requirements of enterprise, industrial, government and service provider users
- Management by Cambium Networks cnMaestro™ element management system for easy provisioning, monitoring and upgrades
- Network planning with LINKPlanner and cnHeat
Specifications
Specifications C050910C114A
| SPECTRUM | |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 4910 - 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) |
| Channel Width | 20 | 40 | 80 MHz |
| INTERFACE | |
| MAC (Media Access Control) Layer | Cambium |
| Proprietary Physical Layer | 2x2 MIMO/OFDM |
| Ethernet Interfaced | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™ |
| VLAN 802.1Q with | 802.1p priority |
| PERFORMANCE | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -64 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -59 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS0(BPSK) to MCS9 (256 QAM-5/6) |
| Transmit Power Range | 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval) |
| PHYSICAL | |
| Surge Suppression | 1 Joule Integrated (C000000L065A - 30V Gigabit surge suppressor is recommended for optimum protection) |
| Environmental | IP55 |
| Temperature | -30°C to +60°C (-22°F to +140°F) |
| Weight | 0.50 kg (1.1 lb) (includes mounting bracket) |
| Wind Survival | 180 km/hour (112 mi/hour) |
| Dimensions (Dia x Depth) | 12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached |
| Pole Diameter Range | 1 – 1.6 in (2.5 – 4.1 cm) with included clamp; up to 2.25 in (5.7 cm) with larger clamp |
| Power Consumption | 12 Watts |
| Input Voltage | 30 Volts |
| SECURITY | |
| Encryption | 128-bit AES (CCMP mode) |
| CERTIFICATIONS | |
| FCCID | Z8H-89FT0016** |
| Industry Canada Cert | 109W-0016** |
| CE | EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)** |
