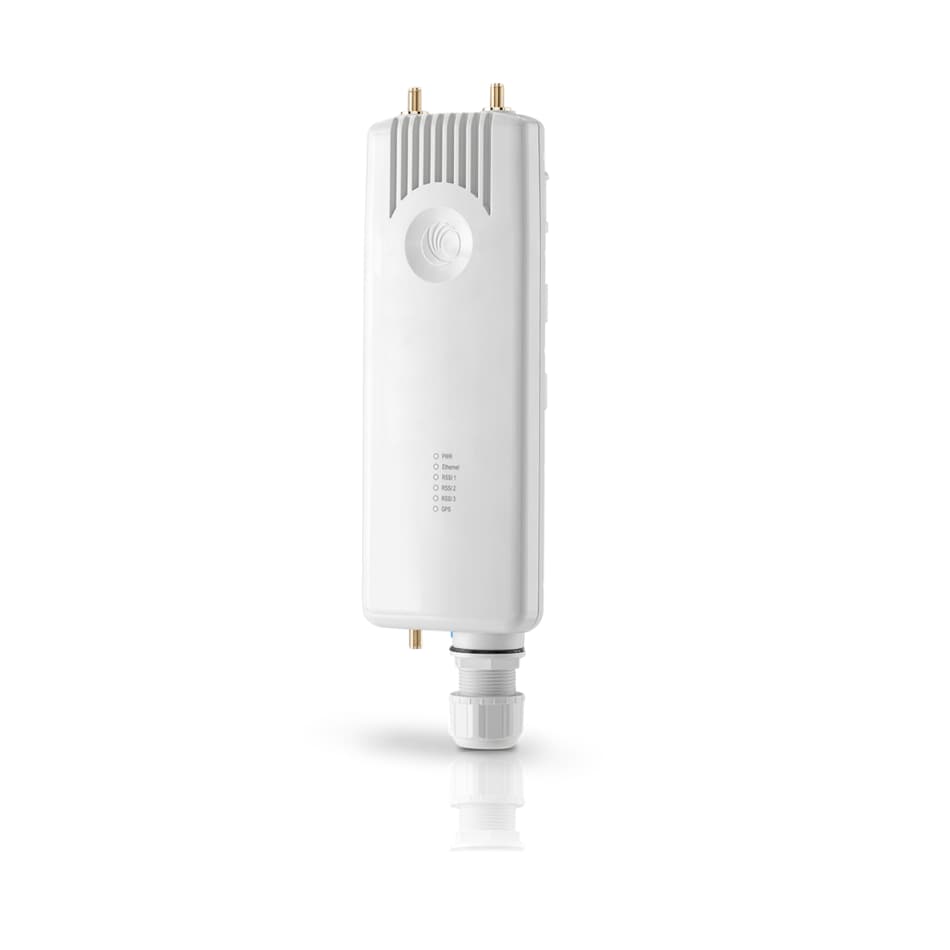

Cambium Networks ePMP 3000L 5GHz Access Point Radio (FCC)
- SKU: C058910A122A
$516.44
+ $20.00 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks’ ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price. The ePMP 3000L is the third generation access point (AP) that carries on the interference tolerance mechanisms with an emphasis on high-performance in low-density point to multipoint sectors. The ePMP 3000L is a 2X2 MIMO connectorized access point that can support a wide variety of deployments including 90/120 degree sectors, narrow-sector horns or even 360 degree omni coverage.
The ePMP 3000L system boasts high packet per second performance, peak throughput of 600 Mbps and supports subscriber modules with up to 600 Mbps of peak throughput.
Product Features- MicroPOP Applications
- Frequency Reuse
- Unmatched Performance and Scalability
- 2X2 MIMO support with peak throughput of 600Mbps
- 256QAM-5/6, 80MHz support
- Supports a wide frequency range: 4910 to 5950MHz
Specifications
Specifications C058910A122A
| SPECTRUM | |
| Channel Spacing | Configurable on 5 MHz increments |
| Frequency Range | 4910 - 5970 MHz (exact frequencies as allowed by local regulations) |
| Channel Width | 20 | 40 | 80 MHz |
| INTERFACE | |
| MAC (Media Access Control) Layer | Cambium Proprietary |
| Physical Layer | 2X2 MIMO/OFDM |
| Ethernet Interfaced | 100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port |
| PERFORMANCE | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain) |
| PHYSICAL | |
| Sector Antenna Connection | 2 x 50 ohm, RP (Reverse Polarity) SMA Also compatible with RF Elements Twistport™ Adaptor for ePMP |
| GPS Antenna Connection | 1 x 50 ohm, RP (Reverse Polarity) SMA; Optional external GPS Puck Antenna avaialble model N000900L030A |
| Surge Suppression | 1 Joule Integrated. C000000L065A - 30V Gigabit surge suppressor recommended for optimal surge protection |
| Environmental | IP67 |
| Temperature | -22°F to +140°F (-30°C to +60°C) |
| Power Consumption | 12 Watts |
| Input Voltage | 30 Volts Nominal (14V to 30V Range) |
| Weight | 0.7 kg (1.5 lbs) without brackets |
| Dimensions (L x W x H) | 22.2 x 12.4 x 4.5 cm (8.75 x 4.9 x 1.75 in) without brackets |
