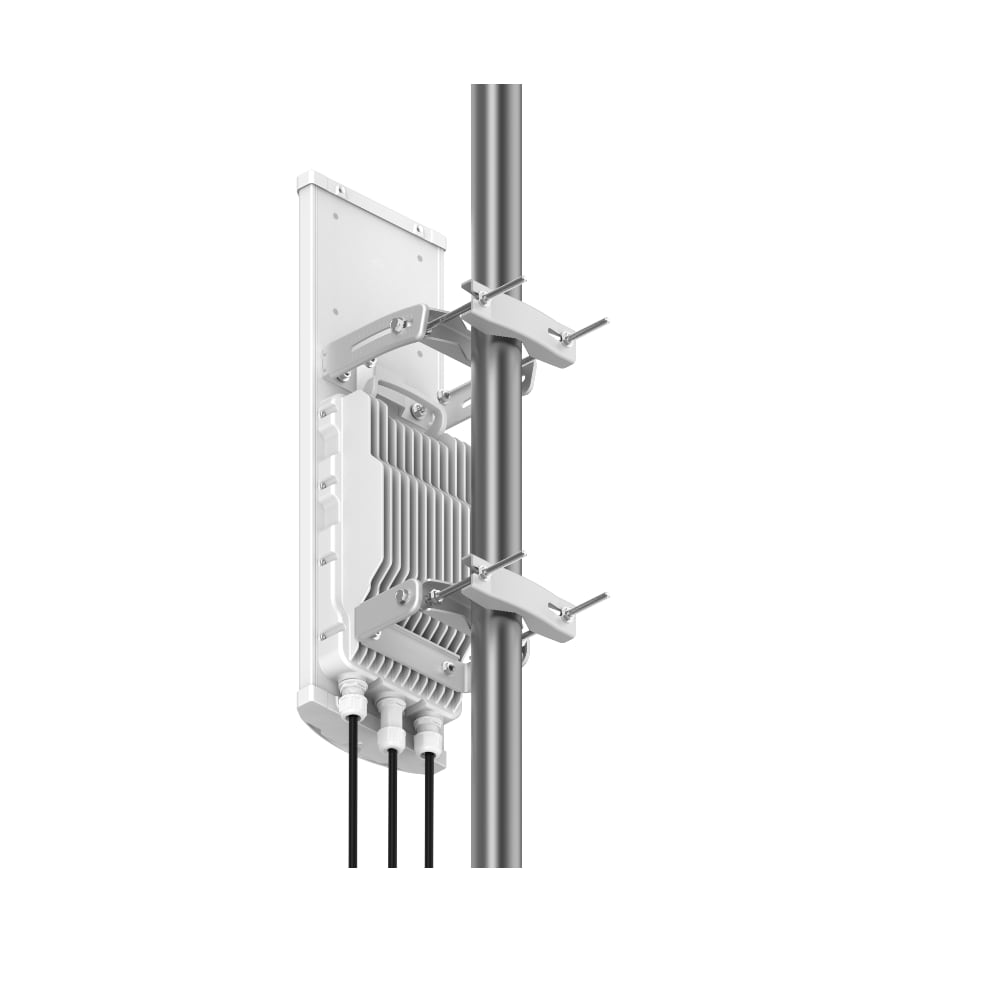

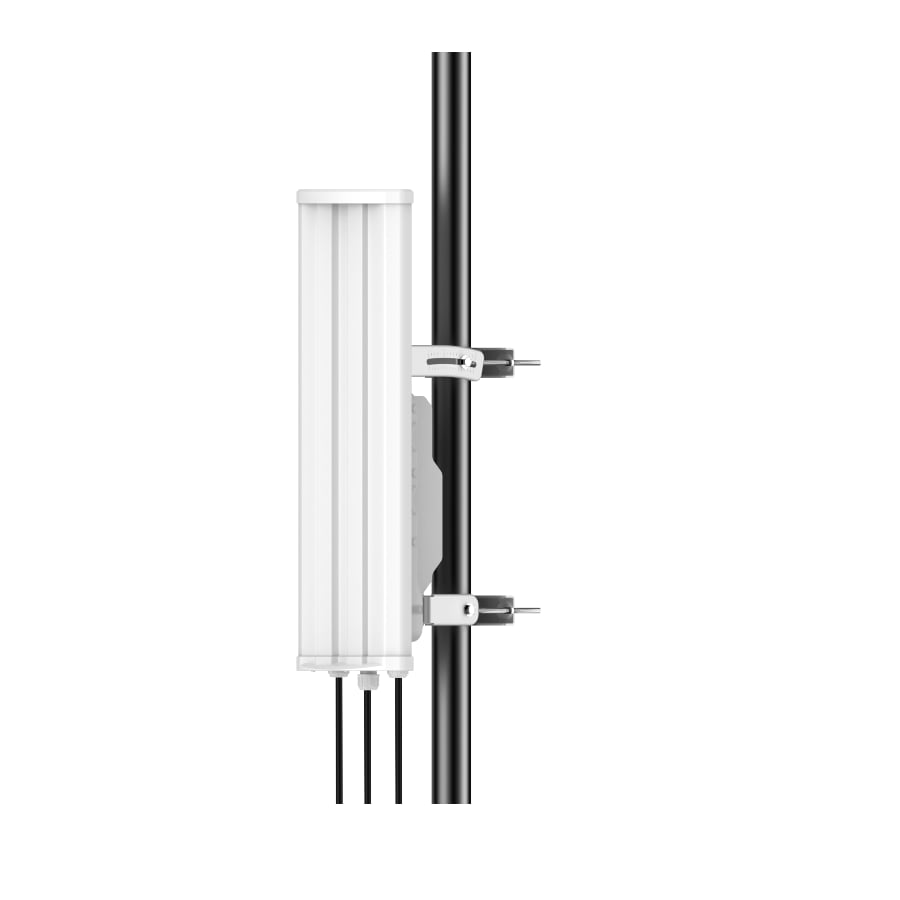

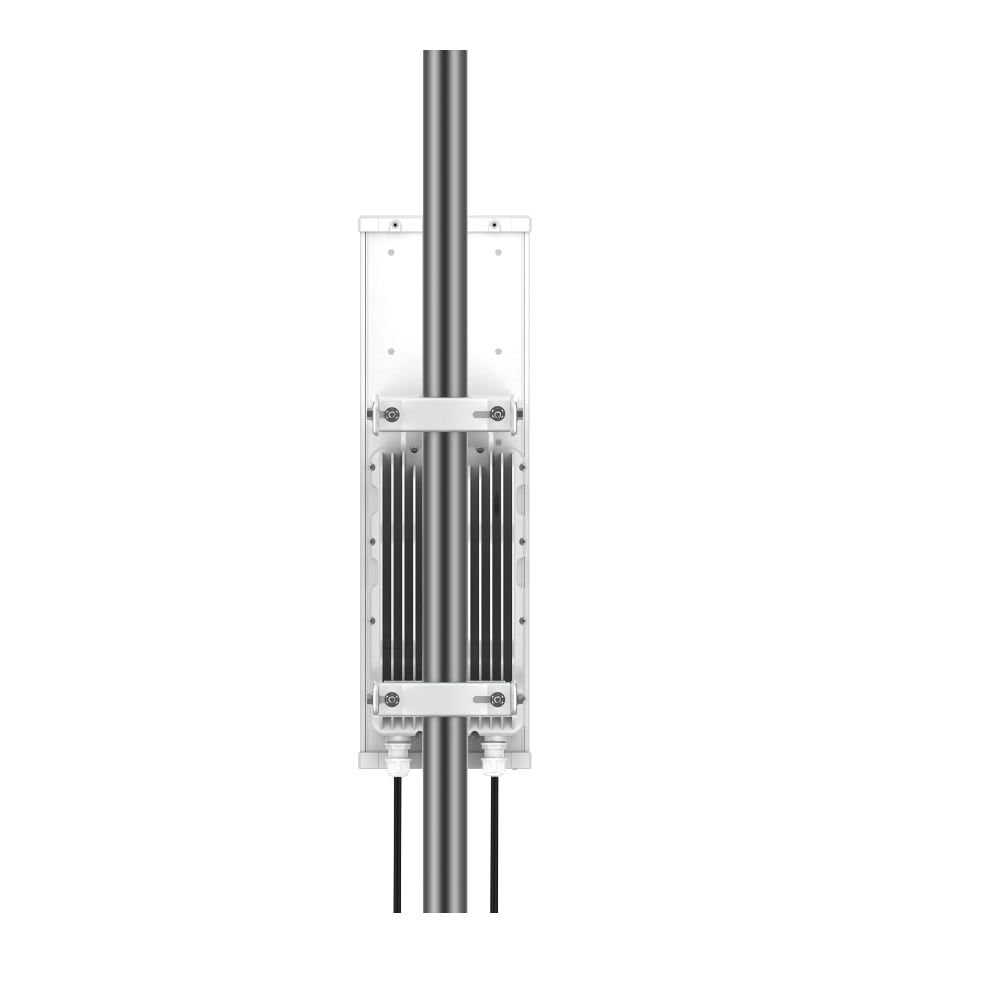

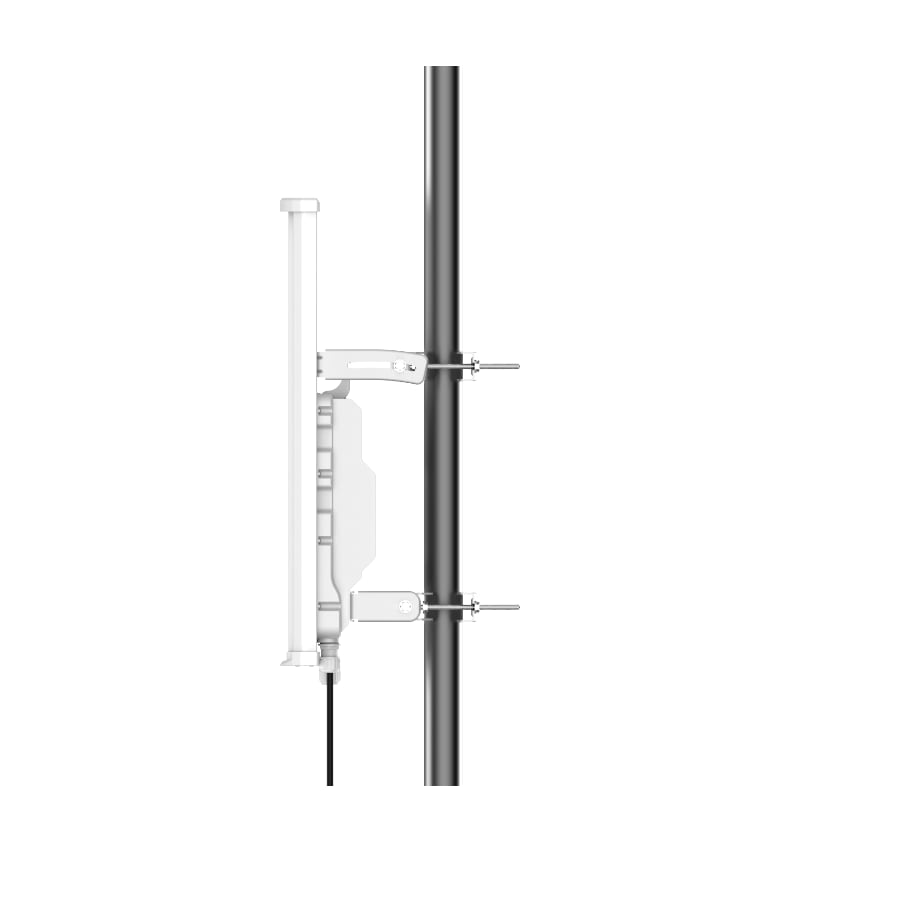

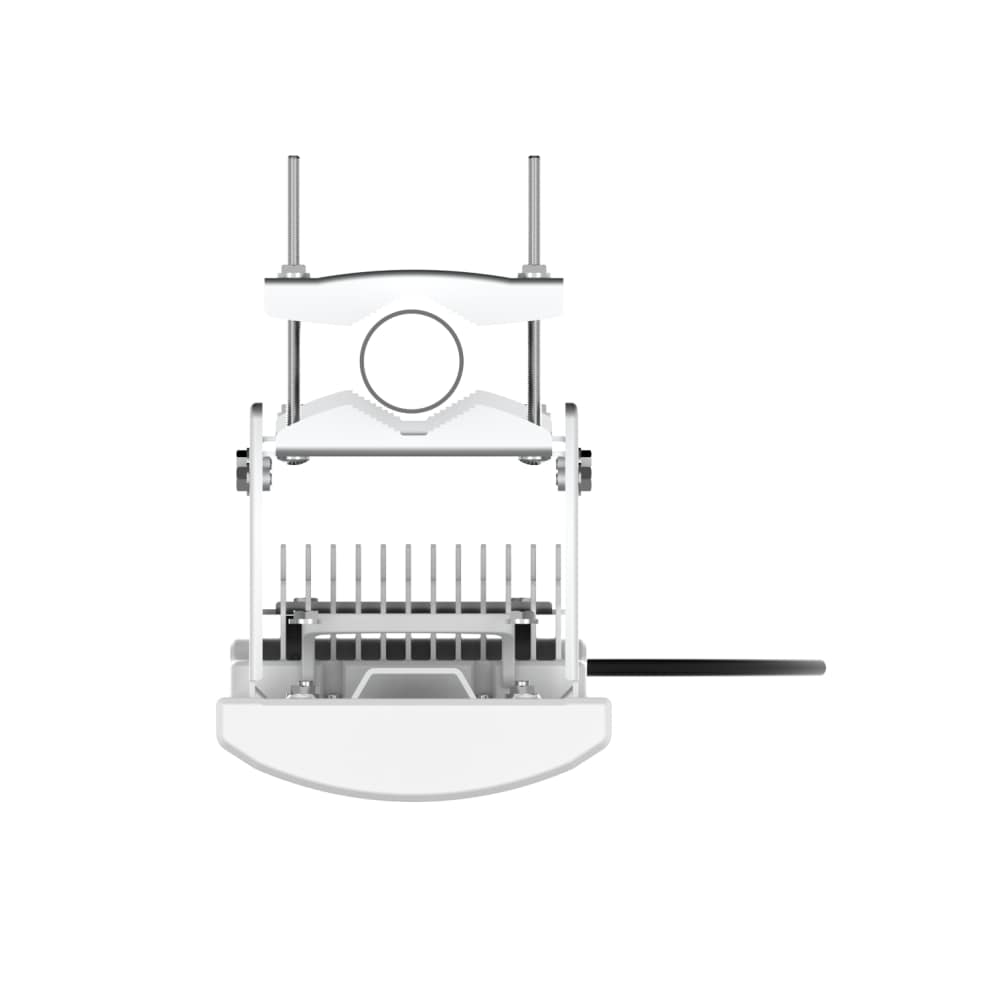

Cambium Networks 6GHz PMP 450v 4x4 Integrated Access Point 90 Degree FCC

(0)No Reviews yet
  • SKU: C060045A402A
$5,160.00
  • Manufacturer: Cambium Networks
  • Data Sheet: Download

48 In Stock

48 in stock
Illinois - West Chicago
2 In stock
College Station - TX
26 In stock
Kalama WA
20 In stock

Product Information

Deliver higher performance to business and residential locations while extending the life of deployed PMP 450 gear. Reduce churn and remain competitive by offering enhanced service plans with more bandwidth.

Product Features

  • Operates from 5.15 to 7.125GHz
  • Backward and Forward Compatible and Future proof
  • 4x4 MIMO Access Point

5GHz to 7GHz support in the same hardware Easily stock and maintain a single SKU, maintain existing 5GHz deployment and expand into 6GHz

Backward and Forward compatibility Leverage existing platform investment and migrate gracefully to next-generation

Ultra-wide-band support (up to 2x 100 MHz channels) Achieve a total capacity increase with more bandwidth to offer

Dual Sector Mode Operate two. carriers independently (i.e., one 5GHz and one 6GHz) with increased flexibility

Carrier Aggregation Achieve flexibility in spectrum usage with two carriers on different bandwidths (e.g., when 5GHz may be congested, requiring smaller channels, and 6GHz can utilize larger channels)

Specifications

Specifications

Channel SpacingConfigurable on 2.5 MHz increments
Frequency Range5.150 GHz - 7.125 GHz
Channel Bandwidths5, 10, 15, 20, 30, 40, 50*, 80, 100*, 120*, 150*, 160*, 200*
MAC (Media Access Control) LayerCambium Networks proprietary
Physical Layer2x2 MIMO OFDM
Ethernet Interface100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
Protocols UsedIPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
Network ManagementIPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro
MTU1700 bytes
VLAN802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Performance Subscribers Per SectorUp to 238
ARQYes
Maximum Deployment RangeUp to 40 miles (64 km)
Latency3-5 ms, typical
GPS SynchronizationYes, via embedded GPS, or Cambium Sync
Quality of ServiceDiffserve QoS
Integrated Sector Peak Gain17 dBi ± 1 dBi integrated 90/120° sector
3 dB Beamwidth – Azimuth± 45° (± 60° @ 6dB roll-off)
3 dB Beamwidth – Elevation5° with null fill
Electrical Downtilt
PolarizationDual Linear, H+V
Front-to-Back Isolation> 30 dB
Cross Polarization15 dB
Maximum Transmit Power+28 dBm (MIMO, Combined H+V) for 5 GHz, +20 dBm for 6 GHz (may be limited by regulations)
Maximum EIRP+45 dBm combined output in 5 GHz, +37 dBm in 6 GHz (may be limited by regulations)
Power ControlATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC
Antenna ConnectionN/A - Integrated Sector antenna
Surge SuppressionEN 61000-4-5: 10x700 μs, 6 kV, EN 61000-4-2: ESD 8 kV contact / 15 kV air
Recommended external surge suppressor: Cambium Networks Model # C000000L033A
Mean Time Between Failure> 40 Years
Dust and Water Ingress Protection RatingIP55
Temperature / Humidity-40°C to +60°C (-40°F to +140°F), 0-100% condensing
Weight6.3 kg (13.9 lbs), 9.1 kg (20 lbs) with bracket
Wind Survival200 kph (124 mph)
VibrationNEMA TS2 Section 2.1.9 and Section 2.2.3
ShockNEMA TS2 Section 2.1.10 and Section 2.2.4
External IcingNEMA 250-2003 Section 5.6
Dimensions (H x W x D)673 x 222 x 134 mm (26.5 x 8.75 x 5.3 in.)
Power Consumption45W Typical, 55W Max, Using Aux port PoE for another device will increase power draw
EncryptionFIPS-197 128-bit AES, 256-bit AES (Requires Optional License)
ISED Canada109W-0081
FCC IDZ8H89FT0081
CEEN 301 893 V2.1.1, EN 302 502 V2.1.1
