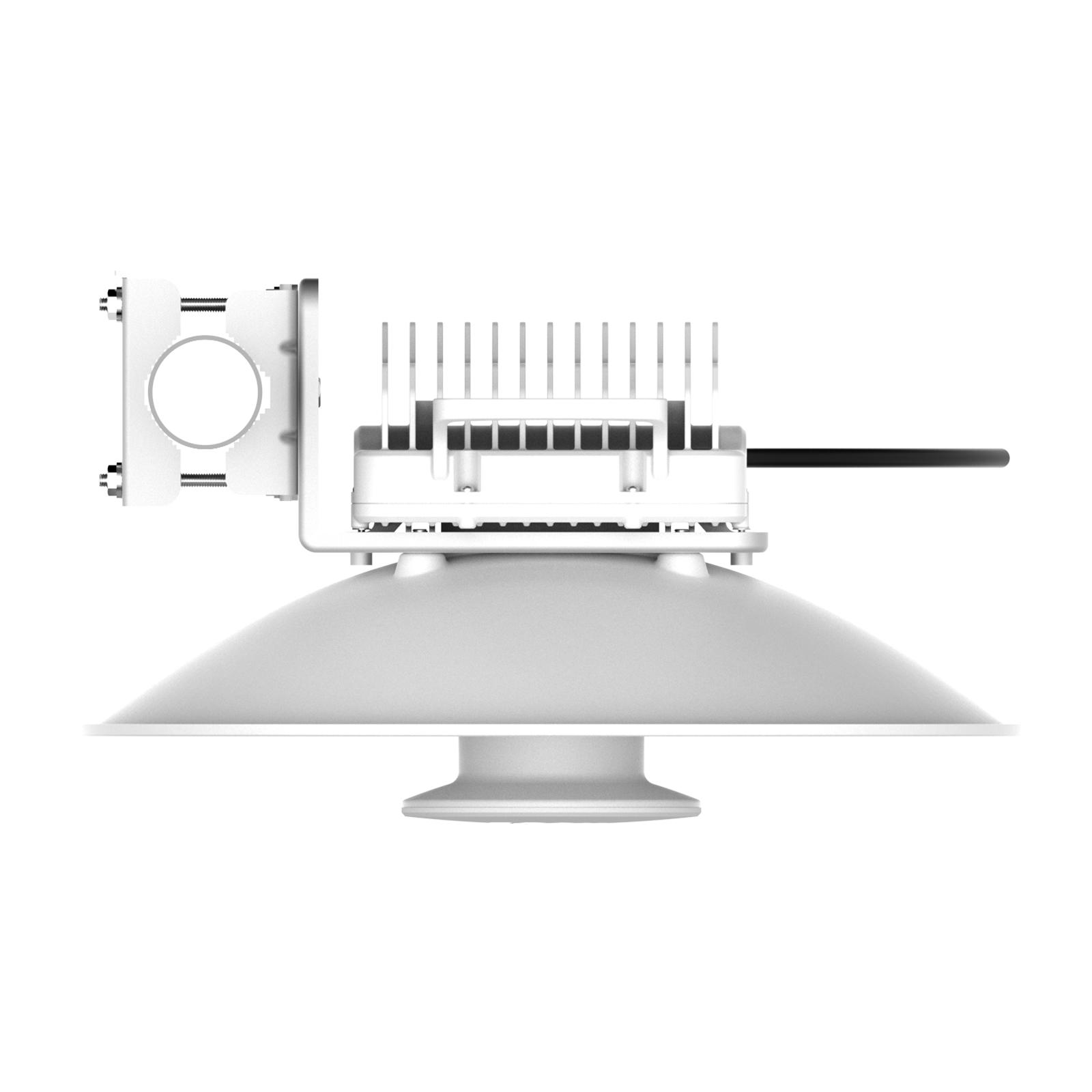

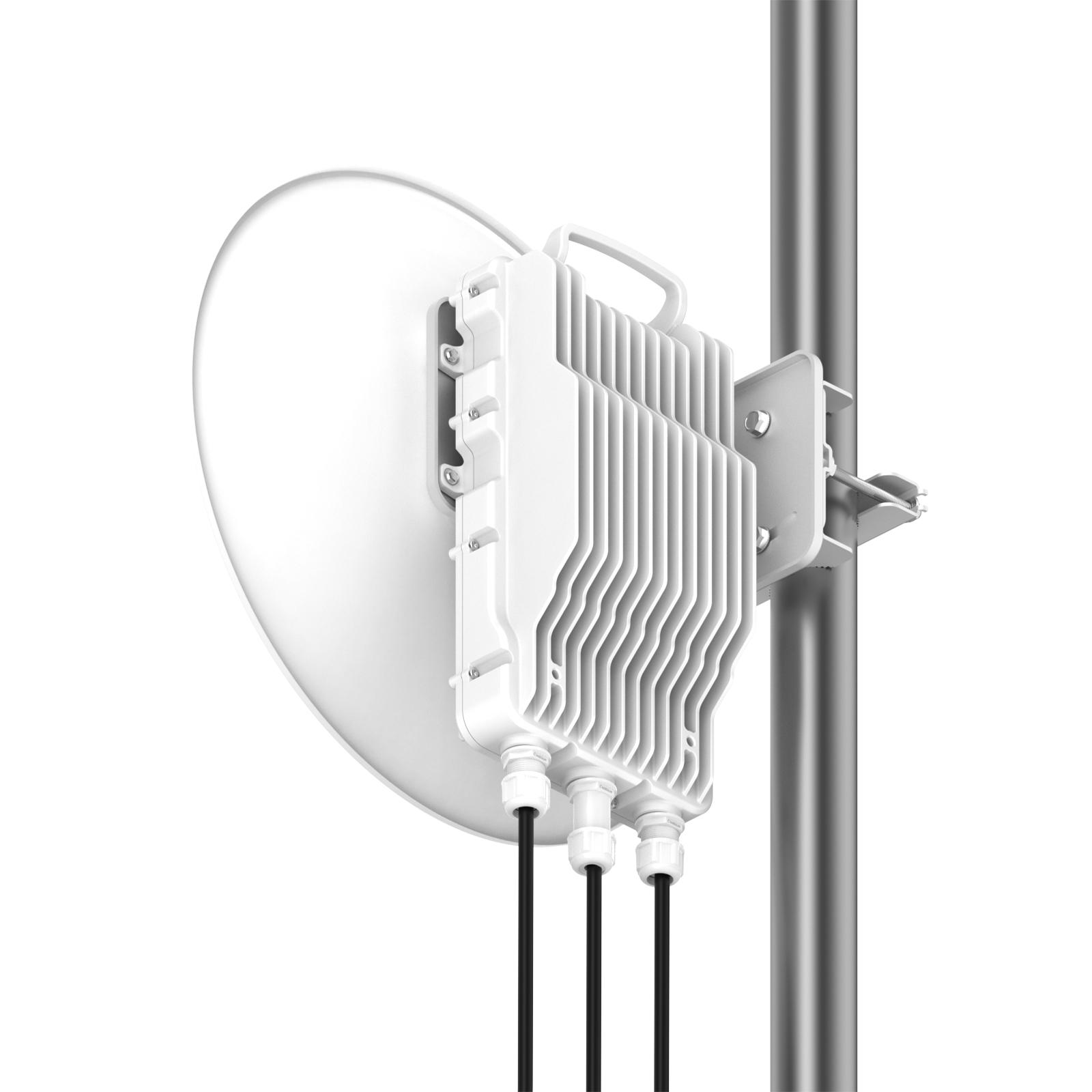

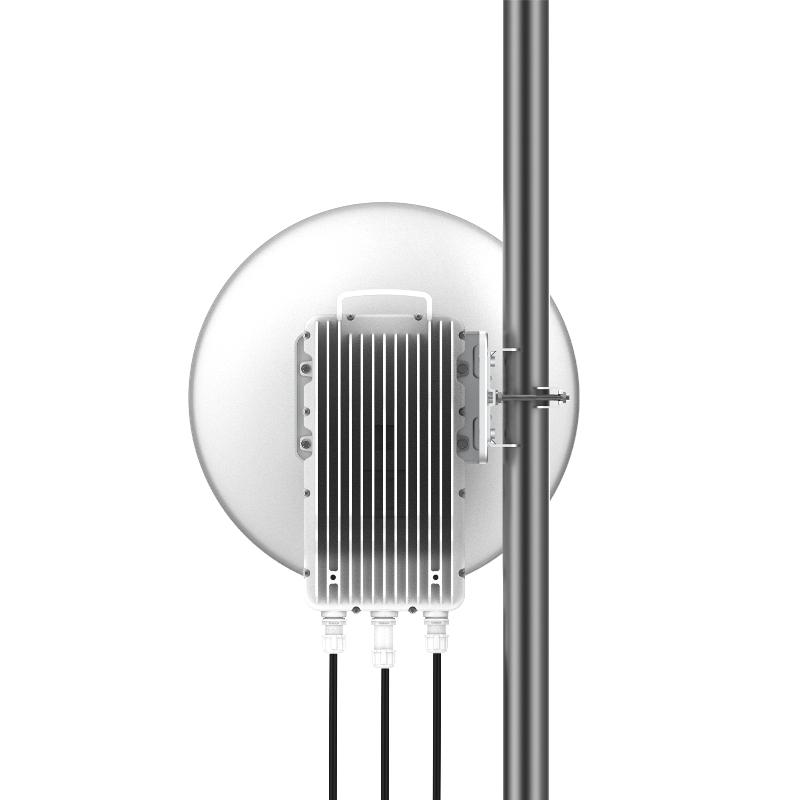

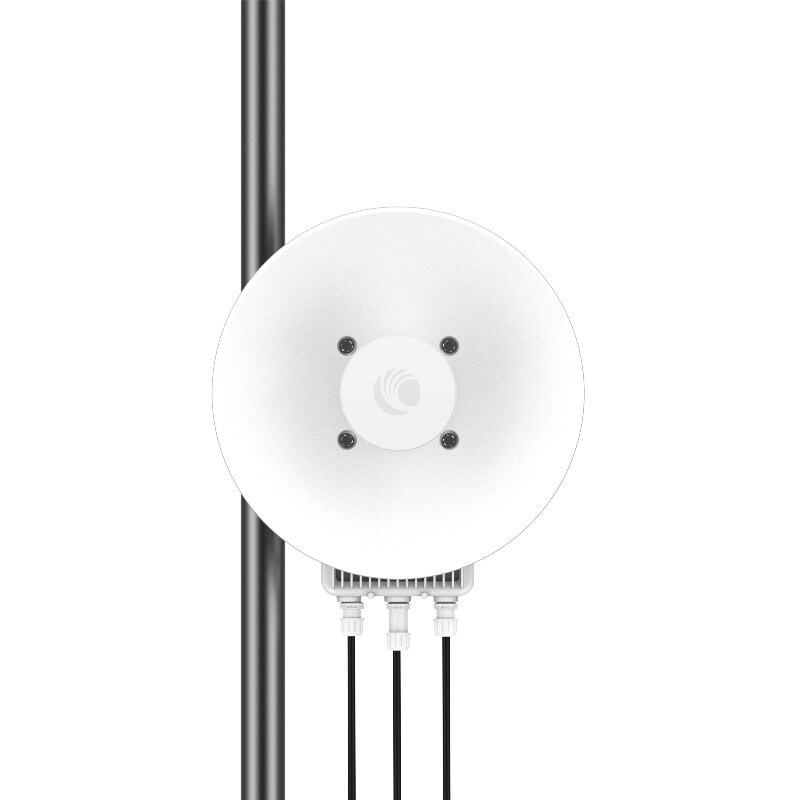

Cambium Networks 6GHz PMP 450v 4x4 BH-SM Mechanical Dish Assembly
- SKU: N060045D401A
$122.00
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks PMP 450v 4x4 Fixed Wireless Subscriber Module and PTP Backhaul
Deliver higher performance to business and residential locations. Reduce churn and remain competitive by offering enhanced service plans by providing more bandwidth.
- Operates from 5.15 to 7.125 GHz
- 4x4 MIMO Subscriber Module
- Can be deployed as Point-to-Point (PTP) backhaul link
- Easily stock and maintain a single SKU
- Achieve a total capacity increase with more bandwidth to offer
- Achieve flexibility in spectrum usage using with 5 GHz or 6 GHz frequency bands
Specifications
Specifications
| Channel Spacing | Configurable on 2.5 MHz increments |
| Frequency Range | 5.150 GHz - 7.125 GHz |
| Channel Bandwidths | 5, 10, 15, 20, 30, 40, 50*, 80, 100*, 120*, 150*, 160*, 200* |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro |
| MTU | 1700 bytes |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Ultimate Sensitivity | -94 dBm |
| Maximum Deployment Range | Up to 40 miles (64 km), in PMP mode, up to 124 miles (200 km) in PTP mode |
| Latency | 3-5 ms, typical |
| GPS Synchronization | Yes, via embedded GPS |
| Quality of Service | Diffserve QoS |
| Integrated Antenna Peak Gain | 22 dBi @ 5 GHz, 24 dBi @ 6 GHz |
| 3 dB Beamwidth - Azimuth | 7° |
| 3 dB Beamwidth - Elevation | 7° |
| Polarization | Dual Linear, H+V |
| Front-to-Back Isolation | > 30 dB (> 25 dB at sector edge) |
| Cross Polarization | 15 dB |
| VSWR | < 2 |
| Maximum Transmit Power | +28 dBm (MIMO, Combined H+V) for 5 GHz, +20 dBm for 6 GHz |
| Maximum EIRP | +50 dBm combined output (may be limited by regulations) for 5 GHz, +44 dBm for 6 GHz |
| Power Control | ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC |
| Physical | |
| Antenna Connection | N/A - Integrated Dish antenna |
| Surge Suppression | EN 61000-4-5: 10x700 μs, 6 kV, EN 61000-4-2: ESD 8 kV contact / 15 kV air |
| Recommended external surge suppressor: Cambium Networks Model # C000000L033A | |
| Mean Time Between Failure | > 40 Years |
| Dust and Water Ingress Protection Rating | IP67, IP66 |
| Temperature / Humidity | -40°C to +60°C (-40°F to +140°F), 0-100% condensing |
| Wind Survival | 200 kph (124 mph) |
| Vibration | NEMA TS2 Section 2.1.9 and Section 2.2.3 |
| Shock | NEMA TS2 Section 2.1.10 and Section 2.2.4 |
| External Icing | NEMA 250-2003 Section 5.6 |
| Dimensions (Dia x Depth) | 462 mm (diameter) x 264 mm (18.1" diameter x 10.4" depth) |
| Power Consumption | 45W Typical, 55W Max |
| Input Voltage | 48-59 VDC, 802.3bt type 4 class 8 (also accepting passive PoE) |
| Security | |
| Encryption | FIPS-197 128-bit AES, |
| 256-bit AES (Requires Optional License) | |
| Certifications | |
| ISED Canada | 109W-0082 |
| FCC ID | Z8H89FT0082 |
| CE | EN 301 893 V2.1.1, EN 302 502 V2.1.1 |
